Product description: Module with leads for PGA2040 - Pimoroni COM0006
Module manufactured by PiMoroni with pins compatible with the PGA2040 board. It has 48 pins with a diameter of 0.5 mm spaced at intervals of 2.54 mm in a Pin Grid Array . The overall dimensions of the board are 20.32 x 20.32 x 2.8 mm . The use of connectors of this type significantly facilitates the assembly and prototyping of the PGA2040 .
Technical specification of the item
- Type: lead module
- Purpose: for PGA2040 - boards with RP2040 microcontroller
- Dimensions: 20.32 x 20.32 x 2.8mm
- Lead diameter: 0.5 mm
- Pin pitch: 2.54 mm

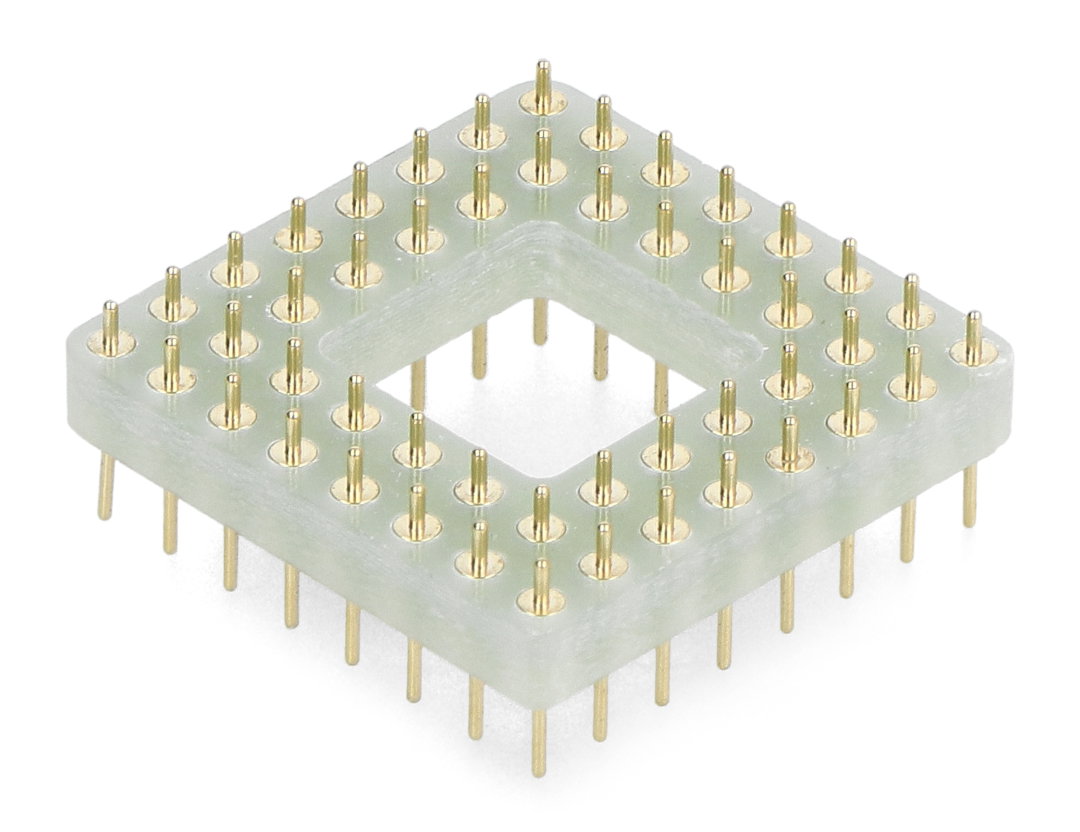

Socket with leads for PGA2040 - Pimoroni COM0006.

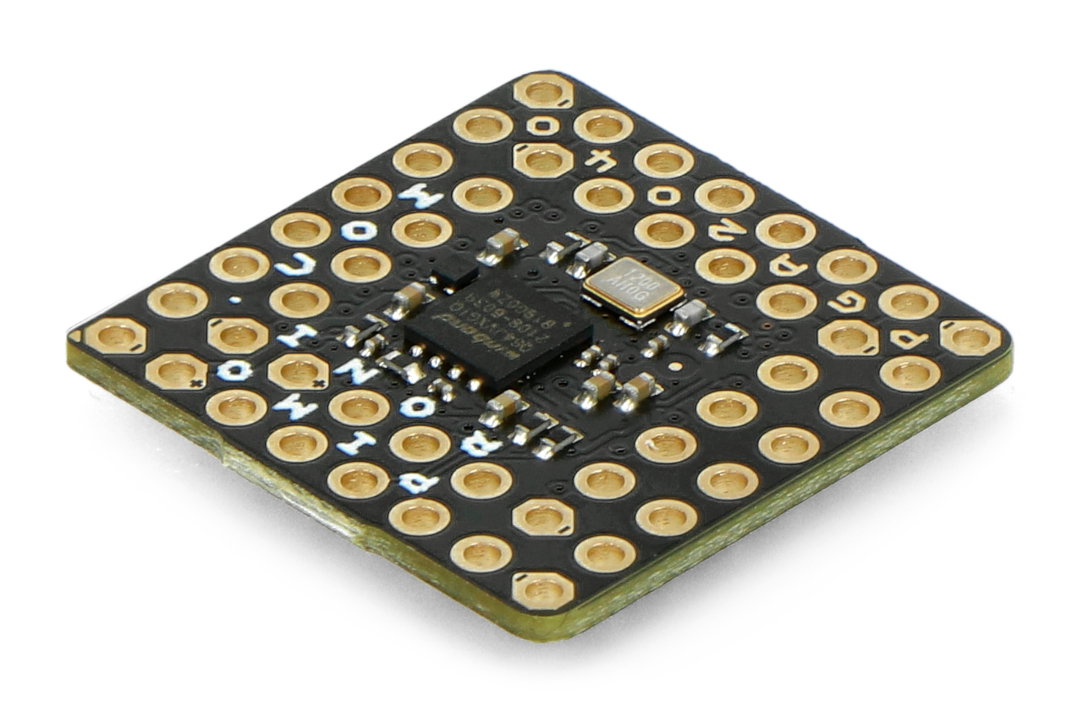

PGA2040 - board with RP2040 microcontroller - PiMoroni PIM577.
PGA2040 - board with RP2040 microcontroller - PiMoroni PIM577*
PGA2040 - produced by PiMoroni compact board with RP2040 microcontroller. Used in small projects with limited space for components. The PGA2040 board has as many as 30 general purpose input/output pins. This is up to 4x more than in the case of the Raspberry Pi Pico. Programming versatility is also a great advantage - the PGA2040 can be programmed using C++, MicroPython or CircuitPython. Its equipment has been reduced to the necessary minimum - it does not contain an LED indicating the operating status, additional utility buttons, or even a USB connector - you need to connect your own USB connector to upload the program.
