Product description: Cable SM-DU - for auto-leveling sensor - 2 m

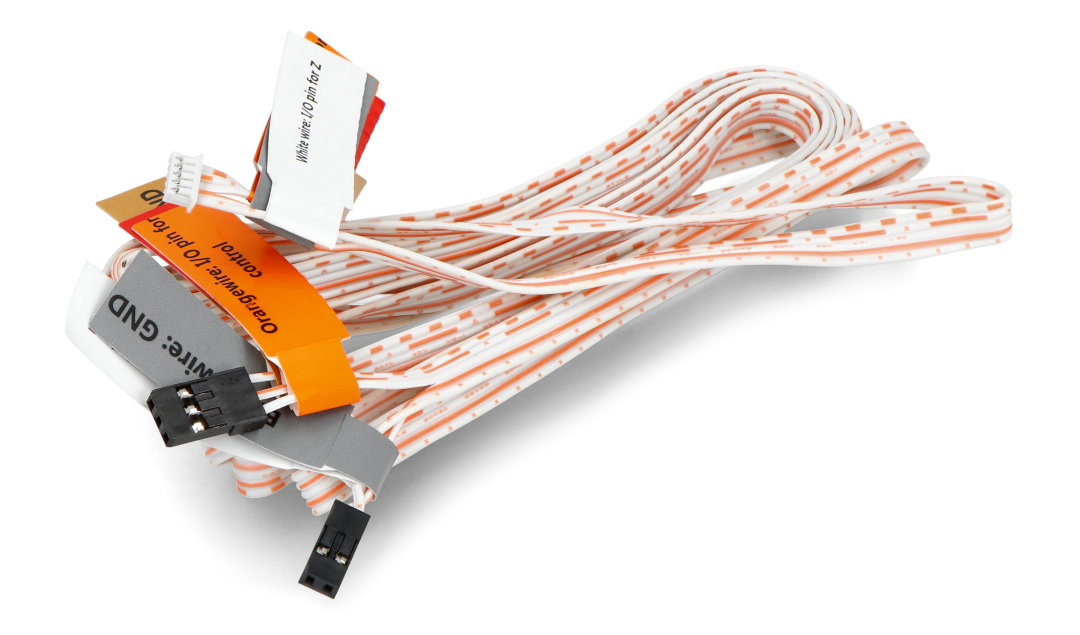

2 m long cable for connecting the Antclabs BLTouch auto -leveling sensor, used in 3D printers. The product ends with a plug with a pitch of 1 mm, which can be easily connected to the sensor. At the other end of the cable, there are two branched Dupont type terminals: 2-pin and 3-pin , used to connect to the 3D printer 's motherboard. The individual wires of the cable are marked with special labels, which eliminates the risk of incorrect connection.
Due to the large variety of motherboards, the manufacturer has prepared a guide to help you install the BLTouch sensor.
Antclabs BLTouch. The subject of sale is only the sensor cable .
Cable SM-DU - for auto-leveling sensor - 2 m.
Application of individual wires
The individual conductors of the cable are marked with colored labels, so there is no risk of incorrect connection of components. To connect the BLTouch sensor it is necessary to use five pins, divided into two plugs:
- Orange : I / O pin for control (PWM or software PWM)
- Red : 5V powered
- Brown : GND
- White : pin I / O to Z min (endstop / Z-probe)
- Black wire : GND
Specification of the SM-DU cable
- Purpose: Antclabs BLTouch sensor
- Number of pins: 5
- Type of plug for connection to the motherboard: Dupont
- Type of marking: labels
- Cable length: 2 m
