Product Description: Multi-GNSS Positioning Module - L76K - GPS, BeiDou (BDS), GLONASS, QZSS - Waveshare 23721
The L76K GPS module manufactured by Waveshare is a Multi-GNSS module, supports GPS , BeiDou (BDS), GLONASS and QZSS systems and enables precise positioning in conjunction with multiple systems or standalone single-system positioning. It supports the AGNSS function, has a built-in low noise amplifier (LNA) and additional SAW surface acoustic filter for better noise reduction. The module uses the UART serial interface.
Multi-GNSS positioning module - L76K - GPS, BeiDou (BDS), GLONASS, QZSS - Waveshare 23721.
Satellite navigation allows you to determine the position of the tested object.
Satellite navigation - what is GNSS?
GNSS is the global navigation system of Global Navigation Satellite Systems, which covers the entire Earth. Its main task is to determine the user's position. The GNSS systems also include the GPS Global Positioning System and GLONASS. Wondering how satellite navigation works? It's simple - as a type of radio navigation, it uses radio waves that are broadcast from artificial satellites to determine the location of points and moving receivers along with the parameters of their movement on the Earth's surface.
Special features of the module
- Supports Multi-GNSS systems: GPS, BeiDou (BDS), GLONASS and QZSS
- Equipped with a low noise amplifier (LNA)
- It has a built-in SAW filter for better noise reduction
- AGNSS support

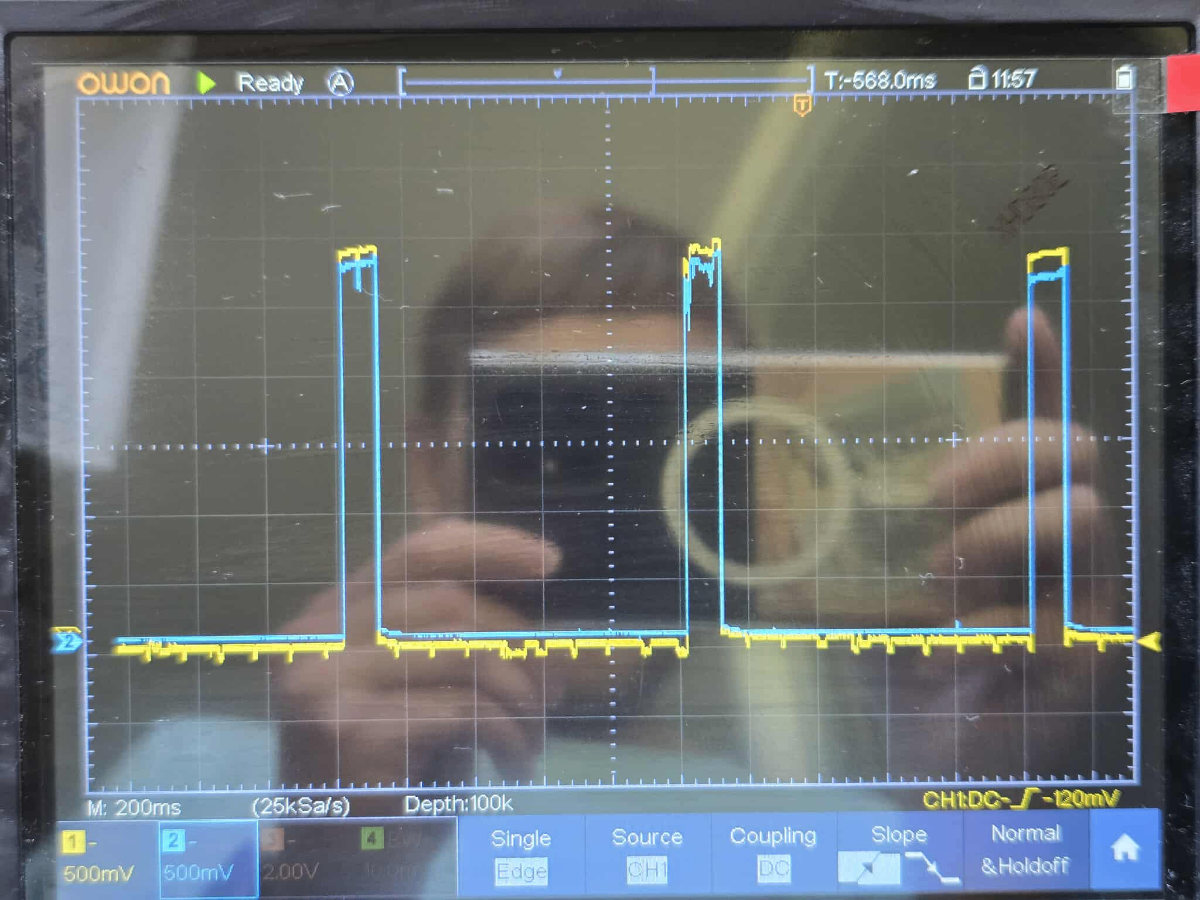

- Support 1PPS
- Built-in MS621FE Li-ion battery for ephemeral information storage and quick start
- 2x LEDs indicating the module's operating status

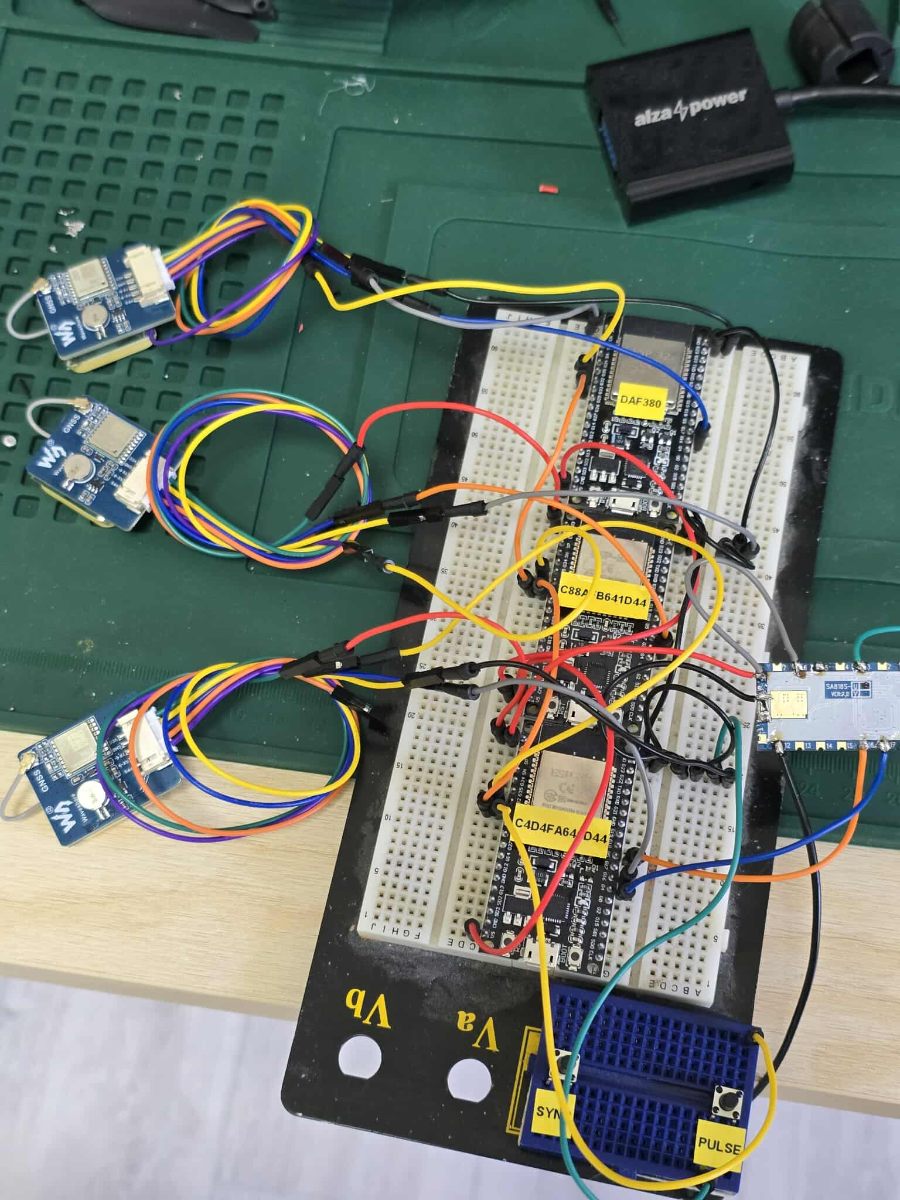

- Works with boards such as Raspberry Pi, Raspberry Pi Pico, Jetson Nano, ESP32, Arduino or STM32
Kit contents
- Multi-GNSS Positioning Module - L76K - GPS, BeiDou (BDS), GLONASS, QZSS
- Connecting cable with 5-pin connector
Kit contents.
L76X GPS module from Waveshare.
Module technical specification
- Model: L76K
- Built-in navigation chip: AT6558R
- Supported satellite systems: GPS / GLONASS / BDS / QZSS
- L1 lane receiver: 32 tracking channels / 72 acquisition channels, SBAS: N/A
- A-GNSS: Supported
- Sensitivity:
- Acquisition: -148 dBm
- Re-acquisition: -160 dBm
- Tracking: -162 dBm
- Time-To-First-Fix
- Cold starts: autonomous up to 30 s, with AGNSS up to 5.5 s
- Wars starts: -
- Hot starts: up to 2 sec
- Position Accuracy: 2m CEP
- Speed accuracy: 0.1 m/s
- Acceleration accuracy: 0.1 m/s²
- Timing accuracy: 30 ns
- Maximum altitude: 18000 m
- Max G: ≤ 4
- Maximum speed: 515 m/s
- Protocol: NMEA 0183, PMTK
- Update speed: 5Hz
- Communication interface: UART bus
- Range: from 4800 bps to 115200 bps
- Default: 9600 bps
- GNSS data update rate:
- Maximum: 5Hz
- Default: 1 Hz
- Module dimensions: 32.5 x 25.5 mm
