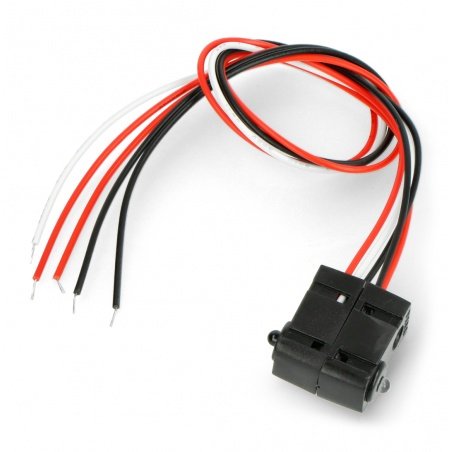

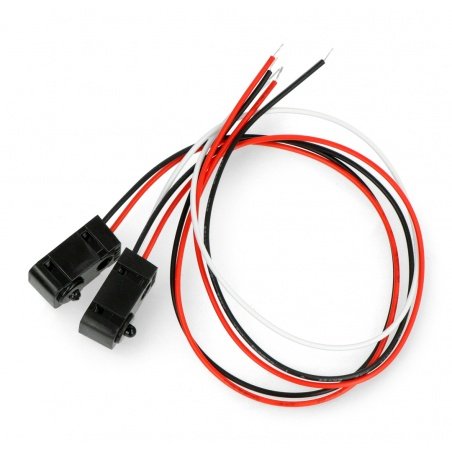

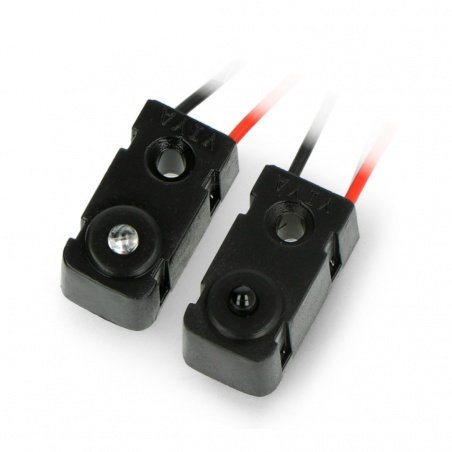

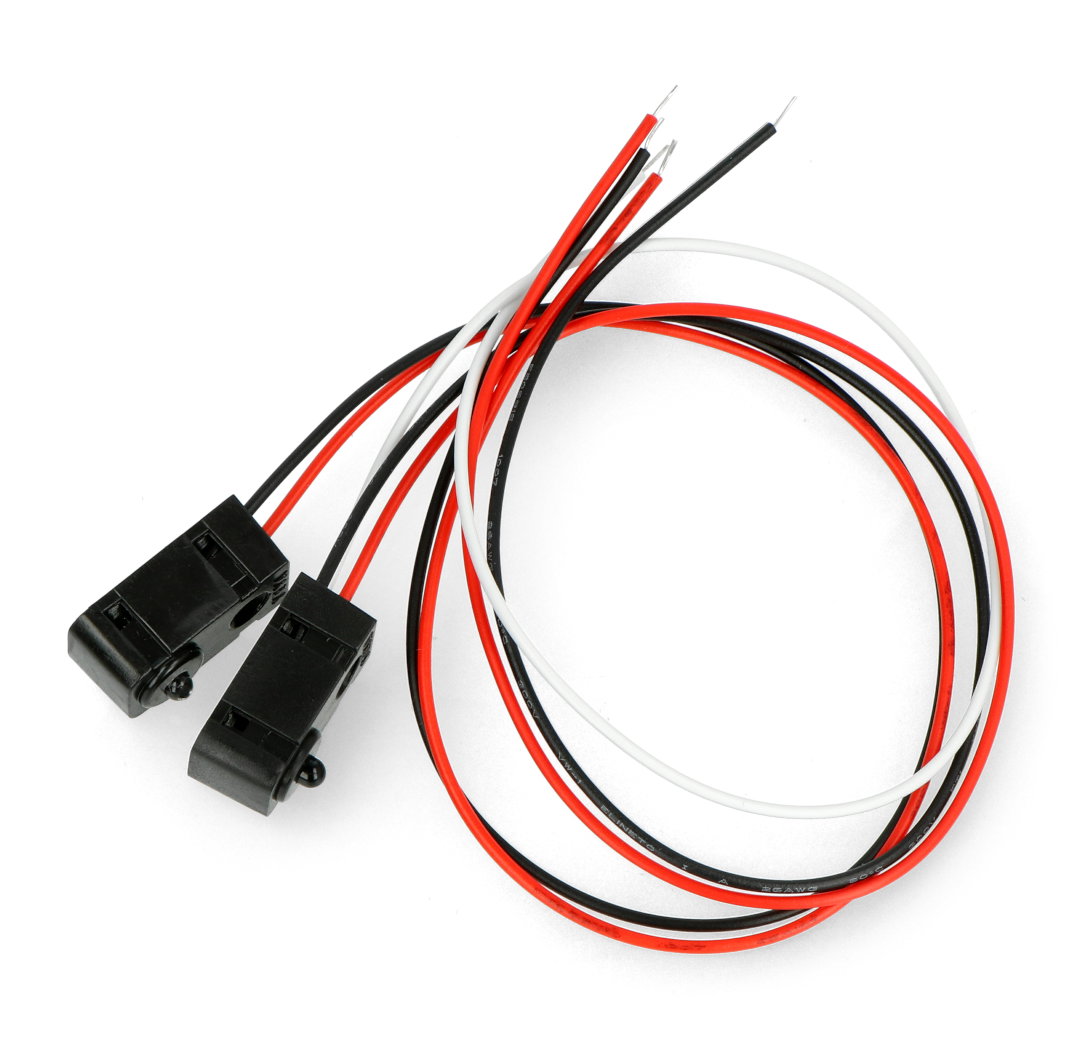

Product Description: IR Beam Interruption Sensor - LED 3 mm - 0-25 cm
The sensor reacts to an interruption in the beam of infrared light that is transmitted between the transmitter and receiver. The module is equipped with a 3 mm IR LED with an illumination angle of 10°. In order to be activated correctly, the devices have to be aligned in such a way that the beam sent by the Transmitter reaches the Receiver. Beam interruption systems are used, among others, in measuring gates.
Specifications of the beam interruption sensor
- Supply voltage: 3.3 V to 5 V
- Range: 0 cm to 25 cm
- Diode: 3 mm IR LED
- Illumination angle: 10°
- Response time: up to 2 ms
- Output: open collector
Detailed description can be found in the user's guide.
