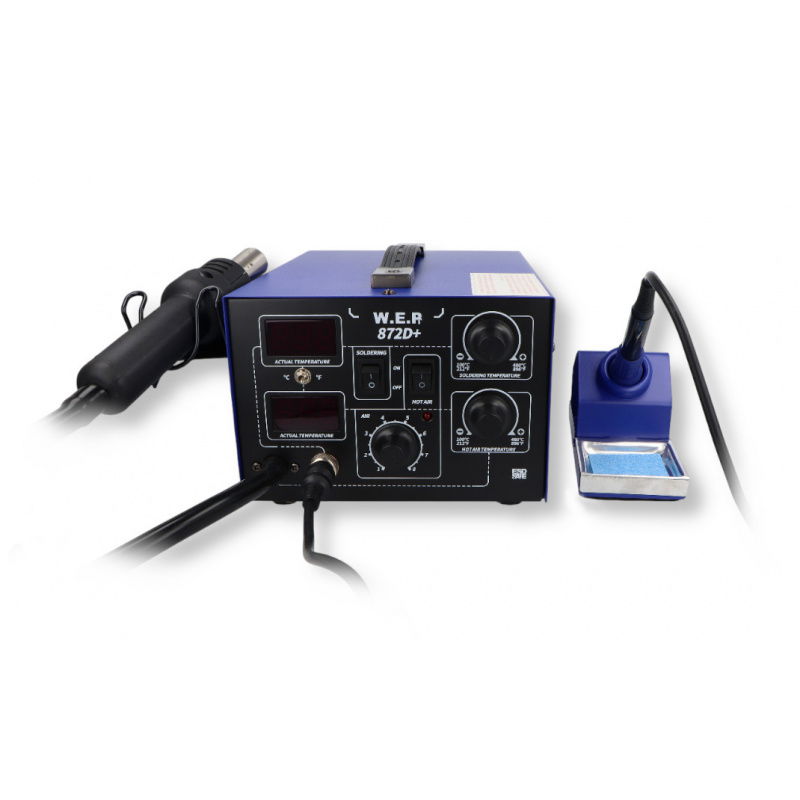

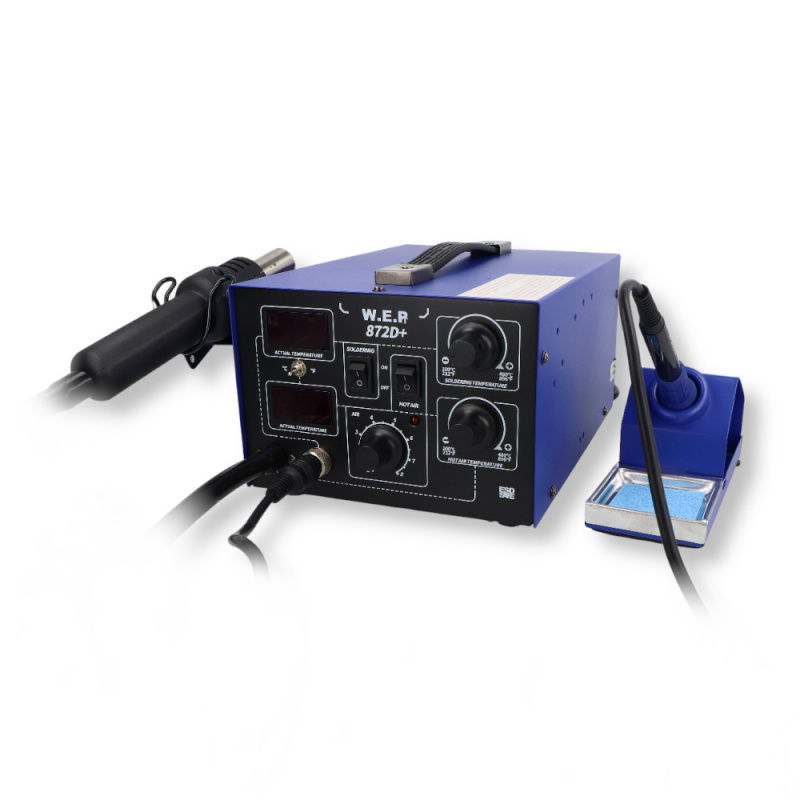

Product description: 2in1 hot air and tip soldering station WEP 872D + compressor - 700W
The 872D+ station has a PID temperature controller . It shows the temperature of the blower and the soldering iron tip. The built-in PID controller maintains high stability of the set temperature and responds quickly to its change. The device displays the real temperature in degrees C or F. The hot air blower and the soldering iron tip can work independently of each other.

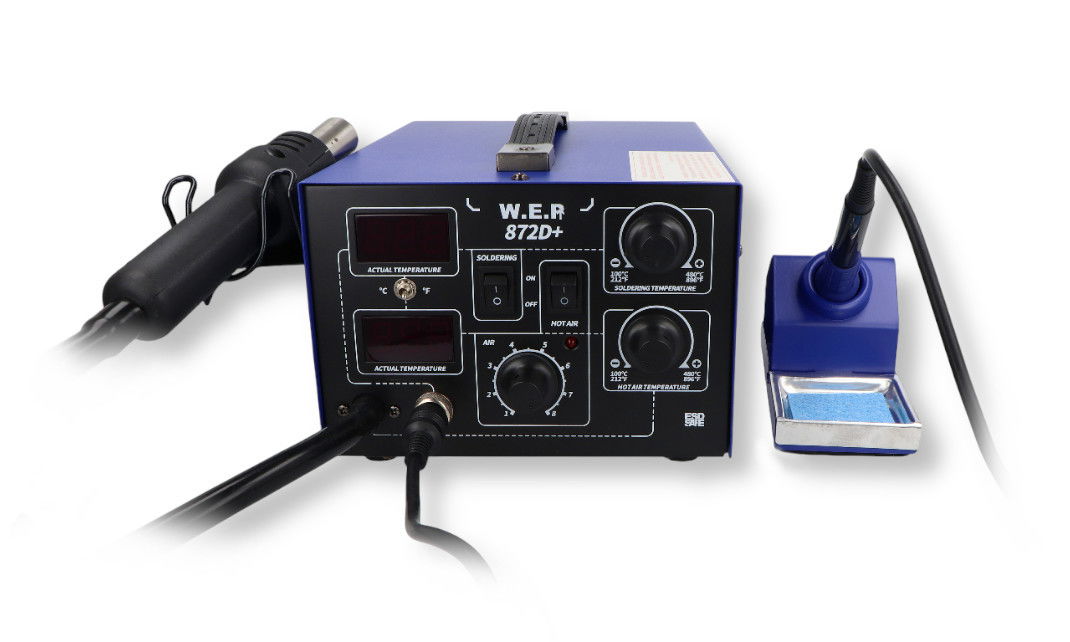

Hotair and WEP 872D+ soldering station with compressor.
The 872D+ station is equipped with an automatic cooling system , i.e. after work is finished, the hot air heater is cooled to a safe temperature, which effectively extends the life of the heating element. The station has a solid metal housing . Air is blown out by a compressor, thanks to which we are sure of long-term, failure-free operation with a stable blowing force.
WEP 872D+ Soldering Station Specifications
- Supply voltage: 230 V
- Power: 700 W
- Blower type: spiral blower diaphragm pump
- Compressor capacity: max 24 l/min
- Soldering iron power: 72 W - 75 W
- Temperature control range:
- Smooth regulation of hot air temperature in the range from 100 °C to 480 °C
- Temperature stability: +/-1°C
- Smooth regulation of the tip temperature in the range from 100 °C to 480 °C
- Tip temperature stability: +/-1°C
- Adjusting the blowing force
- Hot air temperature LED display
- LED tip temperature display
- Handle length: up to 100 cm
- Soldering iron tip grounding resistance: less than 2 Ω
- Soldering iron ground potential: less than 2 mV
The set includes:
WEP 872D+ Soldering Station
- Hot air gun holder
- A stand for placing the tip stock with a sponge for cleaning the tip
- Arrowhead flask
- Hot air nozzles:
- Nozzle diameter 2.5 mm model 1124
- Nozzle diameter 4.4 mm model 1130
- 8mm diameter nozzle model 1195
- 9mm diameter nozzle model 1197
- Power cord
First start-up
Attention Heating elements (heaters) and tips are not covered by the guarantee or warranty and their replacement is subject to a fee. |
Our offer also includes soldering accessories :
- soldering irons - tins of various diameters
- fluxes and rosins
- braids for removing excess tin
- suction machines
- soldering tips
- tweezers, handles, magnifying glasses
- sponges and cleaners
Hotair and tip station in one device
A soldering station is the basic equipment of every electronics workshop – regardless of whether the work carried out there involves the construction of new devices or servicing existing ones. For more demanding electronics engineers, such device parameters as the ability to stably maintain a set temperature or the possibility of soldering with a traditional tip or hot air (hotair) are important.
The 2in1 hot air and tip soldering station WEP 872D + compressor - 700W meets these needs. Its total power is 700 W, and the power of the iron itself is as much as 75 W.
High control accuracy
The soldering station is equipped with two displays – one shows the current tip temperature, the other the temperature of the hot air. The air is supplied by a pump with a spiral membrane, and the compressor has a capacity of 24 l/min.
The great advantage of the device is the possibility of smooth temperature regulation in the range from 100°C to 480°C (for both the tip and hot air) with an accuracy of 1°C. It is also possible to regulate the intensity of the airflow. Together with the 2in1 soldering iron, the user receives a set of 4 hot air nozzles with diameters from 2.5 to 9 mm.
