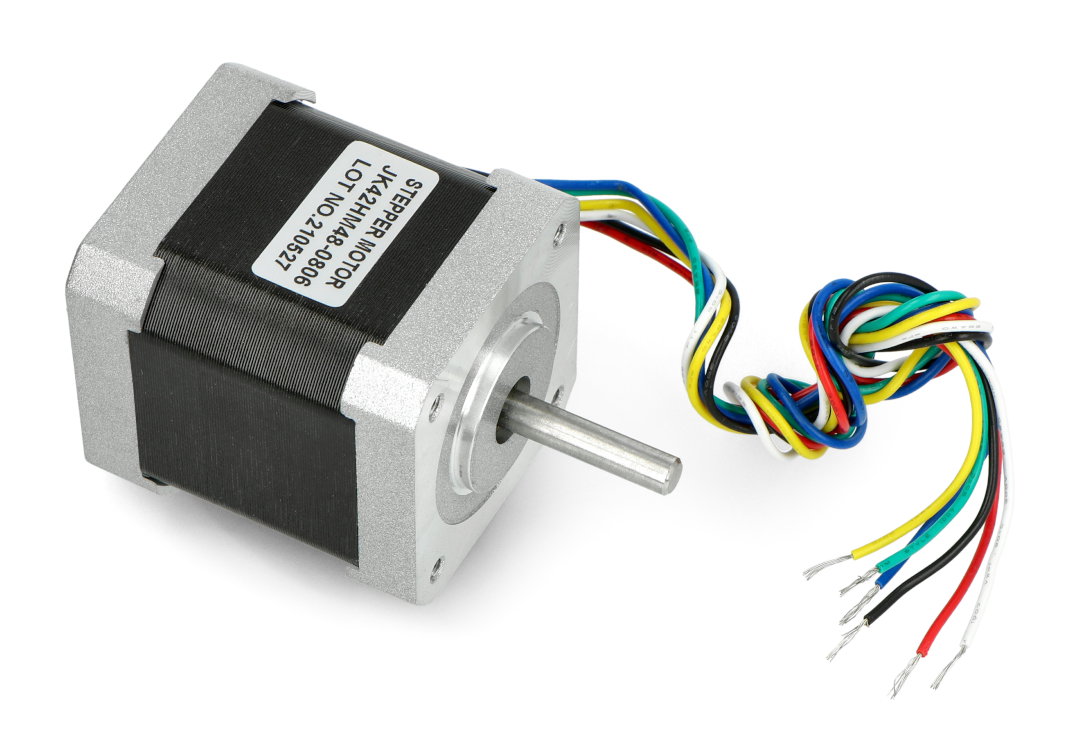

Stepper Motor 42HM48-0806 400 steps 6,0V / 0,8A / 0,31Nm
Unipolar stepper motor, six wire. It has a resolution of 400 steps per revolution (0.9 degrees). It is powered by 6 V and draws 0.8 mA current per coil. The torque is 3.17 kg*cm (0.31 Nm). Dimensions are 42 x 42 x 48 mm (NEMA 17).
We could not load the price.
The promotional price does not combine with quantity discounts.
Specification
- Resolution: 400 steps/rev (0.9°)
- Rated voltage: 6 V
- Current consumption per coil: 0,8 A
- Coil resistance 7.5 Ω
- Winding inductance: 10 mH
- Holding torque 3.17 kg*cm (0.31 Nm)
- Leads: unipolar (six wires)
- Shaft diameter: 5 mm
- Weight: 350 g
- Standard: NEMA 17
- Dimensions: 42 x 42 x 48 mm (without shaft)
Technical drawing and detailed data are available in the documentation.
Stepper motor 42HM48-0806 400 steps/rev 6.0 V / 0.8 A / 0.31 Nm.
Product Description: Stepper motor 42HM48-0806 400 steps/rev 6,0 V / 0,8 A / 0,31 Nm
Unipolarstepper motor with six leads. It has a resolution of 400 steps per revolution (0.9 deg). It is powered by 6 V and draws 800 mA current per coil. The torque is 3.17 kg*cm (0.31 Nm). Dimensions are 42 x 42 x 48 mm (NEMA 17).
Accessories
There are also accessories available in our shop to make stepper motors easier to use:
Accessories
- 5mm mounting hub: allows you to mount mechanical elements on the motor shaft
- Stepper motor driver: simple to use, small modules allowing to control direction, speed and resolution. We have also prepared instructions for connecting different types of stepper motors.
Applications of stepper motors:
- printers
- CNC devices
- 3D printers
- laser devices
- manipulators
| Name | Value |
|---|---|
| Length | 42 mm |
| Width | 42 mm |
| Height | 48 mm |
| Voltage to | 6.0 V |
| Voltage from | 6.0 V |
| Torque | 3.17 kg*cm |
| Mass | 350 g |
| Motor - shaft | 5.0 mm |
| Voltage nominal | 6.0 V |
| Stepper - current: | 0.8 A |
| Stepper - coil resist. | 7.5 Ω |
| Stepper - resolution | 400 steps |
| Stepper - induct. | 10 mH |
| Stepper - fixing | NEMA17 |
| Stepper - type | unipolar |
| Width | 10 cm |
| Height | 6.5 cm |
| Depth | 8 cm |
| Weight | 0.375 kg |
