Description

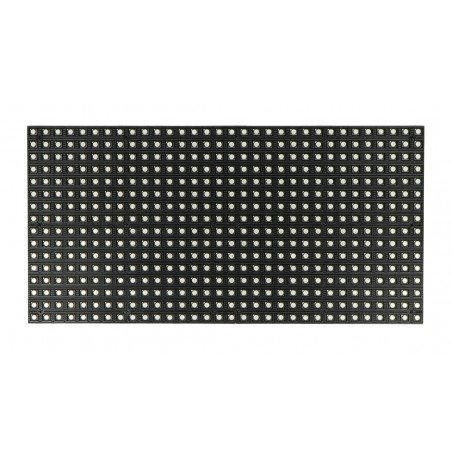

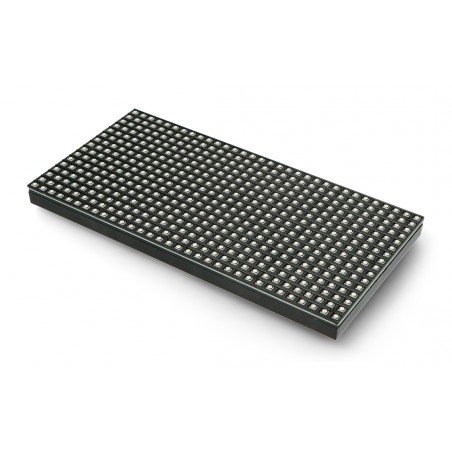

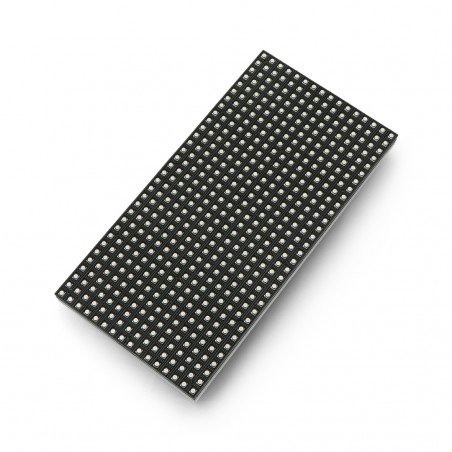

The matrix consists of 512 RGB LEDs arranged in 32 rows and 16 columns. For operation of the module, you must use 13 pins of the microcontroller. The matrix can be connected in cascade with the help of the IDC connector. The supply voltage is 5 V / 2 A.
| Attention! In the case of cascading matrices, a module with higher computing power should be used, for example,Arduino MegaorRaspberry Pi. |
Specification
- Supply voltage: 5 V / 2 A
- Average power consumption: < 500 W/m2
- Maximum power consumption: < 1000 W/m2
- LED quantity: 512 (32 x 16)
- Level viewing angle: >= 160°
- Control mode: synchronous
- Control mode: 1/8 scanning speed
- Repeat frequency: >= 60Hz
- Brightness of white balance: >= 1200 CD/m2
- Refresh rate: >= 300 Hz
- MTTF: >= 5000 hours
- Term of service: 7500 h to 100,000 h
- Pixel pitch: 6 mm
- Dimensions: 192 x 96 x 11 mm

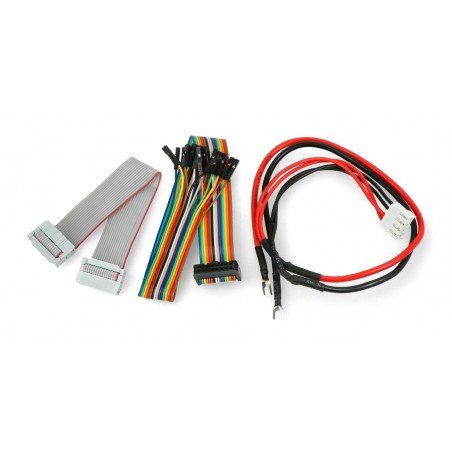

Set includes
- RGB LED matrix 32x16
- IDC cable - XH2.54
- Cable IDC - IDC
- Power wires
