Product description: Flexible LED Filament - flexible LED strip Noodle - 3 V 130 mm - Red

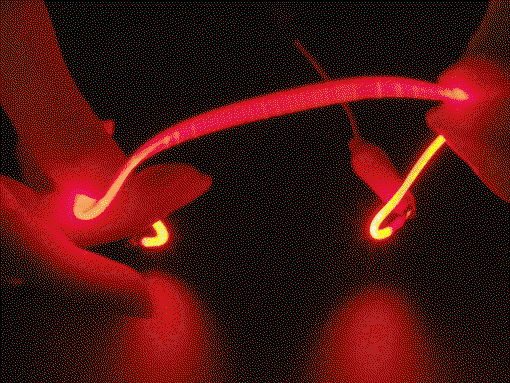

The Noodle Flexible LED Strip is a thin, flexible LED filament designed to create lighting effects reminiscent of neon or the filament of a classic Edison bulb. It consists of multiple micro- LEDs mounted on a flexible substrate and protected by a silicone coating. It emits red light , making it ideal for decorations, miniature scenes, dollhouses, models, ornaments, and electronics projects. The Noodle LED Strip operates on a 3V power supply, and its brightness can be adjusted using PWM . A current-limiting resistor is recommended for operation. The anode is located on the metal end with a small hole.
The strip has a full 360° lighting angle.
Technical specifications of the Noodle LED strip
- Type: flexible LED filament
- Light color: red
- Supply voltage: 2.5 V to 3.1 V
- Recommended supply voltage: 3 V
- Current consumption at 2.5V: 20 mA
- Current consumption at 2.6V: 40 mA
- Current consumption at 2.7V: 90 mA
- Current consumption at 2.8V: 140 mA
- Current consumption at 2.9V: 190 mA
- Current consumption at 3V: 230 mA
- Recommended current limit: up to 50 mA
- Length: 130 mm
- Diameter: 1.8 mm
Kit contents
- 1x Flexible LED filament
