AP63203 - step-down Buck voltage regulator with screw connector - 3,3V 2A - SparkFun COM-18356

Index: SPF-20234 EAN: 5904422352103
A voltage regulator in the form of a step-down converter, made by SparkFun. The AP63203 converter is designed to change the input voltage from 3.8 V to 32 V to the output: 3,3 V. Its current capability is 2 A with a fully integrated 125 mΩ MOSFET on the high side and a 68 mΩ MOSFET on the low side, providing highly efficient DC-DC conversion. All components have been placed on a low profile board, and enclosed in a TSOT26 package. The module is equipped with screw connectors for easy wiring.
AP63203 - step-down Buck voltage regulator with screw connector - 3,3V 2A - SparkFun COM-18356
€7.50
€6.10 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: SparkFun

Product description: AP63203 - step-down buck converter with screw connector - 3,3V 2A - SparkFun COM-18356

Voltage regulator in the form of a step-down converter, made by SparkFun. AP63203 converter is designed to change input voltage from 3,8V to 32V to output: 3,3 V. Its current capability is 2 A with a fully integrated 125 mΩ MOSFET on the high side and a 68 mΩ MOSFET on the low side, providing highly efficient DC-DC conversion. All components are housed on a low profile board and enclosed in a TSOT26 enclosure. Voltage input / output can be provided in two ways: using screw connectors available on the board, or through holes with marked pins, where you can solder, for example, goldpin pins. In addition, the manufacturer has prepared a place on the bottom of the board where you can glue a heatsink to dissipate any heat from the board.

In our shop's assortment there are also other step-down converters available, as well as step-up and step-up / step-down converters.

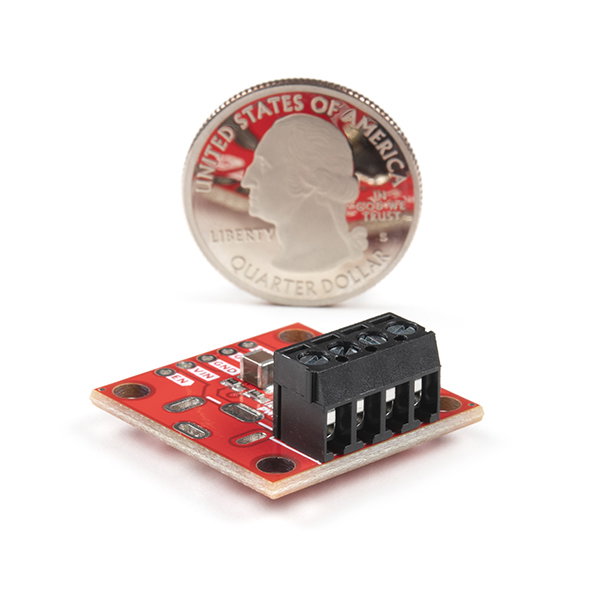

Przetwornica step-down Leadings of the AP63203 step-down converter and a visible place to glue the heatsink.

Leads of the AP63203 step-down converter

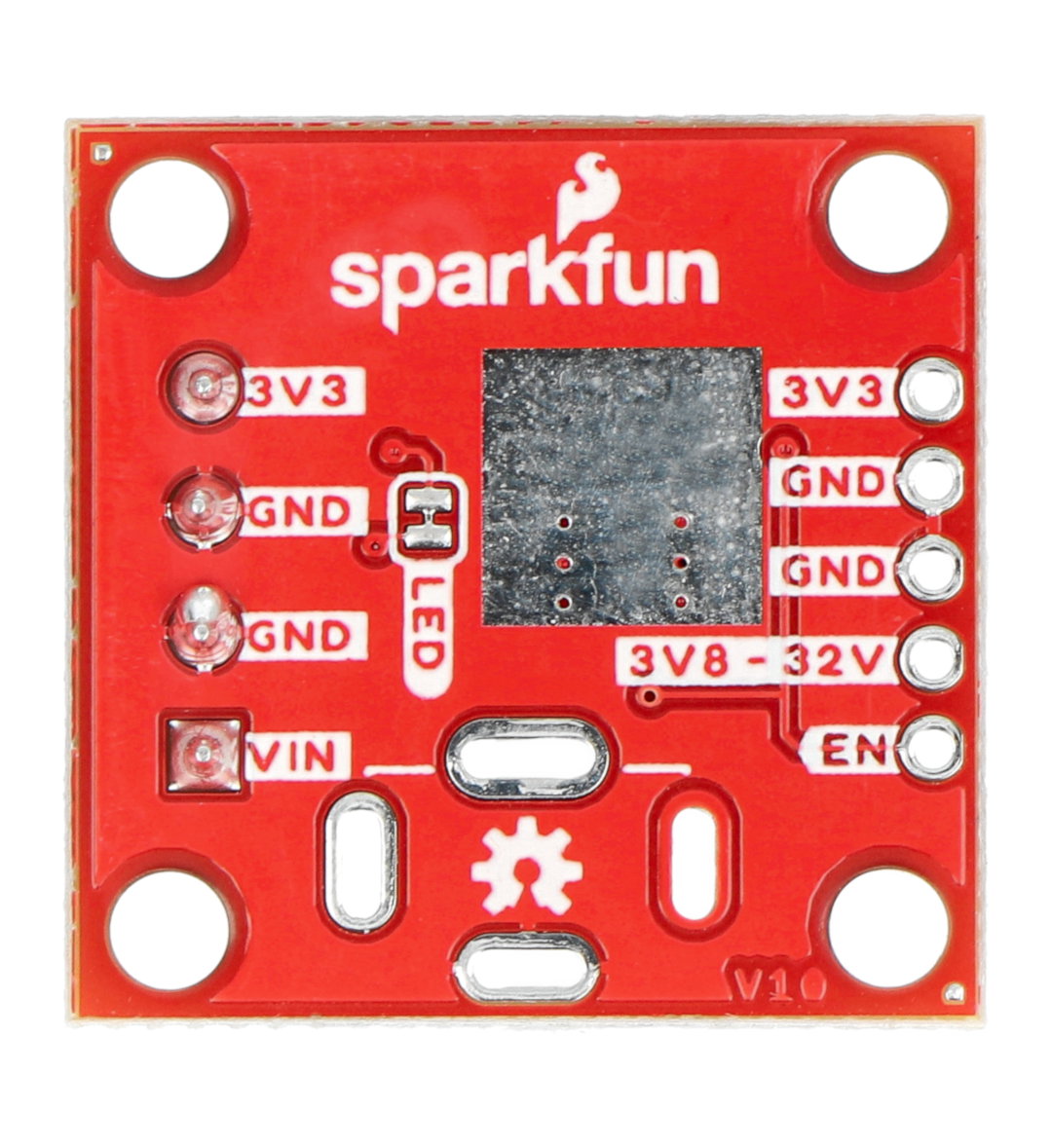

The AP63203 step-down converter module has screw connectors and pins in the form of solder holes:

  • 3V3 - output voltage 3.3 V
  • GND - system ground
  • VIN - input voltage from 3,8 V to 32 V
  • EN - enable

The AP63203 version without screw connector is also available.

Specification of the AP63203 step-down converter

  • Input voltage: from 3.8 V to 32 V
  • Output voltage: 3,3 V
  • Continuous output current: 2 A
  • Reference voltage: 0.8 V ± 1%
  • Resting current: 22 µA
  • Switching frequency: 1.1 MHz
  • Supports pulse frequency modulation (PFM):
    • efficiency up to 80% at a light load of 1 mA
    • Efficiency up to 88% with 5 mA load
  • Patented design provides superior EMI reduction
  • Frequency spread spectrum (FSS) for EMI reduction
  • Protections:
    • against over voltage
    • Current
    • Thermal shutdown
Przetwornica step-downStep-down converter 3.3 V 2 A.
Voltage to 3.8 V
Voltage from 32.0 V
Voltage output from 3.3 V
Output voltage to 3.3 V
Nominal output voltage 3.3 V
Current 2 A
Stabilizer - Type2 switching
Stabilizer - Type step-down
Package width 5 cm
Package height 7 cm
Package depth 1 cm
Package weight 0.005 kg
