Step-Down Voltage Regulator D24V10F3 - 3,3V 1A - Pololu 2830

Index: PLL-03018 EAN: 5904422366537

A step-down pulse inverter module with an efficiency of 80 % - 93 %. Converts the input voltage from 3.4 V to 36 V to an output value of 3.3 V. The maximum continuous current is 1 A.

Step-Down Voltage Regulator D24V10F3 - 3,3V 1A - Pololu 2830
€8.94 tax excl.
Shipping in 24 hours
PayPal payment
D24V10F inverter - voltage:
Manufacturer: Pololu

Product description: Polol D24V10F3 - step-down converter - 3.3 V, 1 A

The DC-DC pulse controller converts the input voltage from3.4 V*to36 Vinto a3.3 Voutput value. It allows for current consumption of up to 1 A. The system has a high efficiency of80 % - 93 %.

Voltage versions are available in our offer:3.3 V,5 V,6 V,9 Vand12 V.

Pololu D24V10F3 - przetwornica step-down - 3,3V 1A

Pololu D24V10F3 - step-down converter - 3.3 V, 1 A.


The module has four outputs:

  • VIN- input voltage from 3.4 V to 36 V - depending on the drop-out voltage.
  • GND- ground potential.
  • VOUT- output voltage.
  • SHDN- low state (below 0.4 V) switches the system into low power mode, where it consumes only 10 uA - 20 uA for each Volt of supply voltage. Pin is pulled to VIN by default through a 100 kΩ resistor. If the low-power mode is not usedSHDNcan be left unconnected.
  • PG- "power good" indicator. The open drain is switched to a low state when the output voltage drops below 80 % or rises above 120 % of the set value (i.e. below 4.5 V for 5 V).

Przetwornica step-down Pololu D24V10F3 - 3,3V 1A

The popular goldpin raster of the outputs is 2.54 mm (the set is included). The module can be plugged into thecontactboard,connected with wiresor placedin a dedicated printed circuit board.

Efficiency and output current

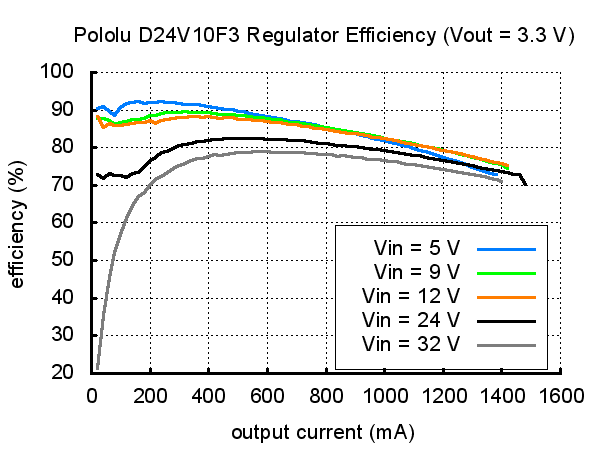

Efficiency is defined as the ratio of output power to input power (Power out)/(Power in). This is a very important parameter when working with portable energy sources (batteries and accumulators), where the time of operation on one charging cycle counts. The efficiency dependence on the input voltage is shown in the graphs below.

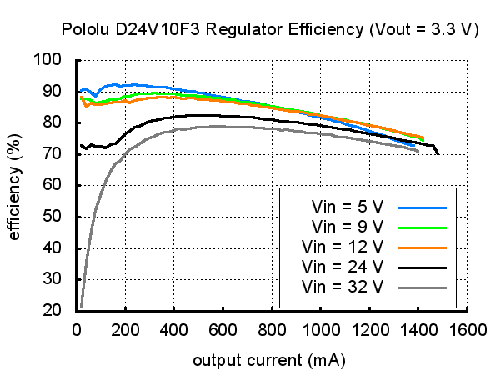

Wykres sprawności regulatora

Voltage drop-out

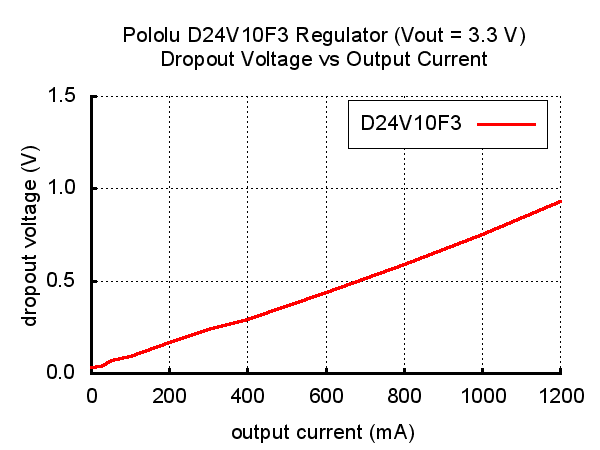

The graph below shows the drop-out voltage dependence on the output current. For example, for a5 Aconsumption, the output voltage must be1 Vhigher with an input value.

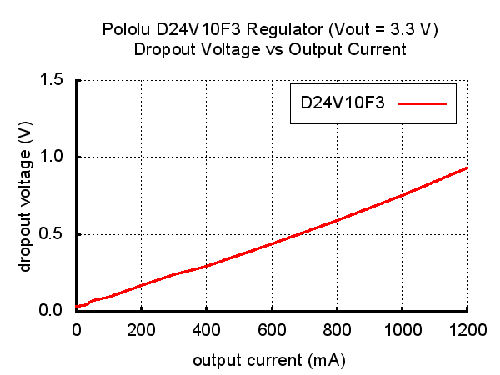

Wykres napięcia dropdown regulatora Pololu

Dangerous voltage pulses

When connecting the power supply to the module, dangerous, short, high amplitude eclectic impulses (so-called pins) may appear, which may permanently damage the system. Polol's tests show that for voltagesabove 20 V, the pinsmay have an amplitudeexceeding 42 V.In order to protect against this undesirable phenomenon it is recommended to solder a capacitor of at least33 uFas close as possible to the pins powering the converter.

Specifications of the step-down Polol converter

  • Input voltage: 3.4 V* to 36 V
  • Output voltage: 3,3 V
  • Accuracy of output voltage: 4 %
  • Maximum output current: 1 A
  • Switching frequency: 500 kHz
  • Built-in security:
    • against excessive power consumption
    • before too high a temperature
    • soft-start 2 ms
  • Controller: ISL85410(documentation)
  • Dimensions: 18 x 13 x 3.5 mm
  • Four mounting holes for M2 screws
  • Weight: 5 g (without connectors)

* Lower input voltage limit depending on the drop-out voltage -details on the chart.

Length 18 mm
Width 13 mm
Height 4 mm
Voltage to 3.4 V
Voltage from 36 V
Voltage output from 3.3 V
Output voltage to 3.3 V
Nominal output voltage 3.3 V
Current 1 A
Stabilizer - Type2 switching
Stabilizer - Type step-down
Package width 7.5 cm
Package height 8.2 cm
Package depth 0.3 cm
Package weight 0.003 kg
