Product description: UPS Armac PSW 850F LCD - 2 x Schuko socket - 230 V
UPSArmac 850F Ofiice Pure Sine Wave seriesis a high quality uninterruptible power supply withLine-Interactivetopology. The power of the device is850 VA/450 W.The power supplies ofthis series are distinguished by afull sine waveat the outputsockets. The Armac PSW 850F hastwo Schuko socketsandtwo RJ11 / RJ45 portsdedicated to telephone and data cabling.
Key features
- Line-Interactive (VI) topology
- Fully sinusoidal waveform on output sockets
- Convenient monitoring system thanks to PowerManager II software
- 2 x F-type Schuko sockets
- RJ45 overload and surge protection
- Efficient monitoring of sensitive equipment thanks to microprocessor control
- Self-starting when mains power returns
- Built-in automatic voltage regulation (AVR)
UPS designed for a wide range of home and office applications.

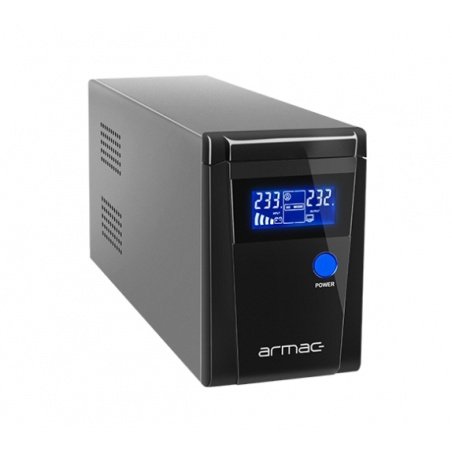

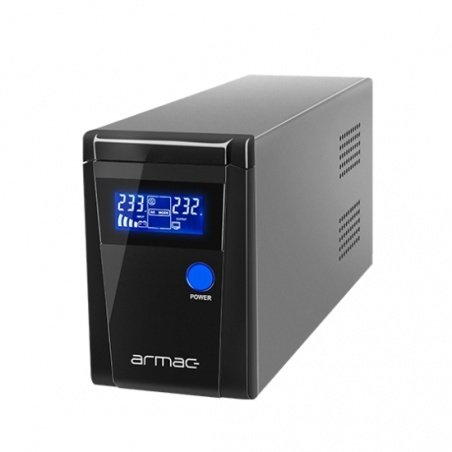

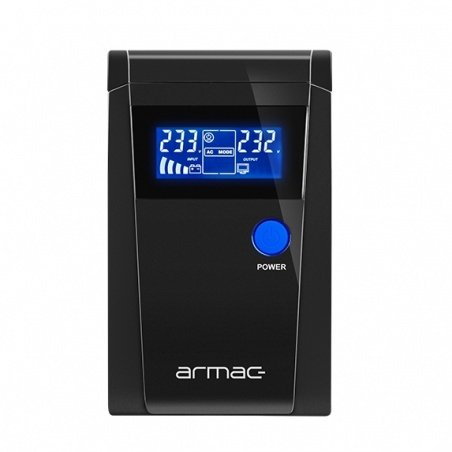

Nfront panel LCD display showing operating parameters.Technical specification of the uninterruptible power supply from Armac
- Connectors:
- 2 x Schuko type sockets
- 1 x RJ11
- 1 x RJ45
- USB type B
- Topology: Line-Interactive
- Communication with the computer: USB
- Power (apparent / active): 850 VA / 450 W
- Input voltage: 230 V
- Output voltage range: 220 V / 230 V / 240 V AC
- Output waveform (battery mode): full sine wave
- Transfer time: Typically 2 ms to 6 ms
- Output frequency: 50 Hz / 60 Hz
- Battery classification: 1 x 12 V / 9 Ah
- Battery charge time: 4 to 8 hours to 90% capacity
- Back-up time: depending on load
- Noise level: < 45 dB
- Monitoring software: PowerManager II (recommended)
- Operating conditions: Indoor
- Dimensions: 305 x 85 x 141 mm
- Weight: 6.5 kg
Convenient system for monitoring operation
The UPS can be connected to a PC via the USB port. Together with the recommendedPowerManager IIsoftware it is possible to control the operation of the unit and issue commands simply and conveniently. It allows maximum utilisation of the power supply's potential. A number of advantages include :
- Possibility of automatic notification in the form of e-mail and SMS messages when the device is alarmed
- Automatic detection of AC mains failure
- Keeping of log of UPS events and their analysis
- Setting of the operating time of the power supply
- UPS diagnostics

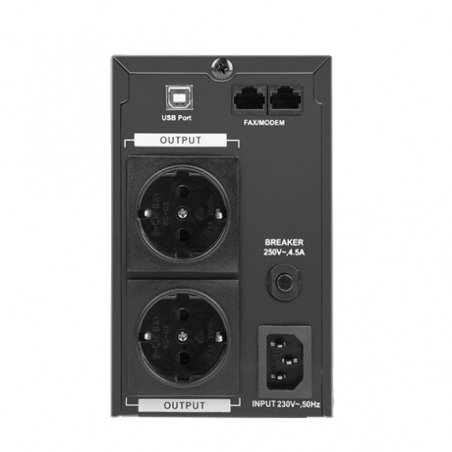

The UPS has two Schuko sockets.
