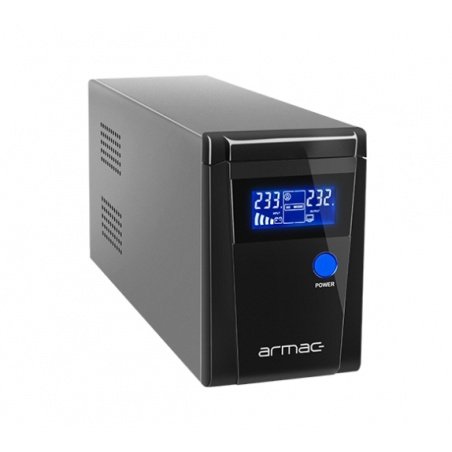

Product description: UPS Armac PSW 850F LCD - 2 x E socket - 230 V
UPSseries Ofiice Pure Sine Wavemanufactured by Armac is a high quality UPS withLine-Interactivetopology. The power of the device is850 VA/450 W. PSW seriespower suppliesare characterized by afull sine waveat the outputsockets. The Armac PSW 850F is equipped withtwo E-type socketsandtwo RJ11 / RJ45 portsfor telephone line and data cabling.
Key features
- Line-Interactive (VI) topology
- Full sinusoidal waveform on output sockets
- Parameters indicated on LCD display
- 2 x E-type socket (French)
- Effective monitoring of sensitive equipment thanks to microprocessor control
- Automatic start-up after restoration of mains supply
- Built-in automatic voltage stabilization system (AVR)
The UPS can be used in domestic and industrial applications.

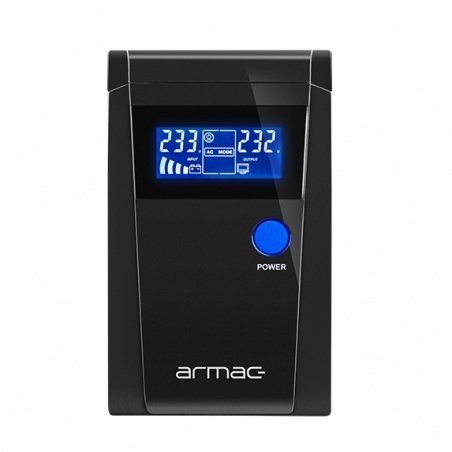

Nfront panel LCD display shows operating parameters.Technical specification of the uninterruptible power supply from Armac
- Connectors:
- 2 x E-type sockets (French)
- 1 x RJ11
- 1 x RJ45
- USB type B
- Topology: Line-Interactive
- Communication with the computer: USB
- Power (apparent / active): 850 VA / 450 W
- Input voltage: 230 V
- Output voltage range: 220 V / 230 V / 240 V AC
- Output waveform (battery mode): full sine wave
- Transfer time: 2 ms to 6 ms
- Output frequency: 50 Hz / 60 Hz
- Battery classification: 1 x 12 V / 9 Ah
- Battery charge time: 4 to 8 hours to 90% capacity
- Back-up time: depending on load
- Noise level: < 45 dB
- Monitoring software: PowerManager II (recommended)
- Operating conditions: Indoor
- Dimensions: 305 x 85 x 141 mm
- Weight: 6.5 kg
Convenient system for monitoring operation
At the back of the unit, a USB port is provided for connecting the PSU to a PC. The recommended software for monitoring and control is thePowerManager II. It allows the use of all UPS functions. A number of advantages include:
- Automatic detection of AC mains power failure
- Possibility of automatic e-mail and SMS notification when the unit alarms
- Maintenance of the UPS event log and its analysis
- Setting of the operating time of the power supply
- UPS diagnostics
The UPS has two E-type (French) sockets.
