Product description: Argon Industria PoE+ HAT with M.2 NVMe - cover for Raspberry Pi 5
The Argon Industria PoE+ HAT with M.2 NVMe is a functional PoE+ adapter for the Raspberry Pi 5 that allows you to simultaneously power the minicomputer and expand it with a fast M.2 NVMe SSD. The module utilizes the IEEE 802.3af/at PoE+ standard, allowing the Raspberry Pi 5 to receive power and network data over a single Ethernet cable. This solution significantly simplifies installation in installations where access to a traditional power socket is limited.
The shield delivers a stable 5V voltage at up to 5A , providing up to 25W of power to the Raspberry Pi 5 and connected peripherals. The integrated M.2 NVMe 2230/2242 slot allows for the use of a fast PCIe-connected SSD , accelerating data access and expanding storage capabilities. The module is suitable for servers, NAS systems, IoT clusters, automation, smart home, and edge computing projects.

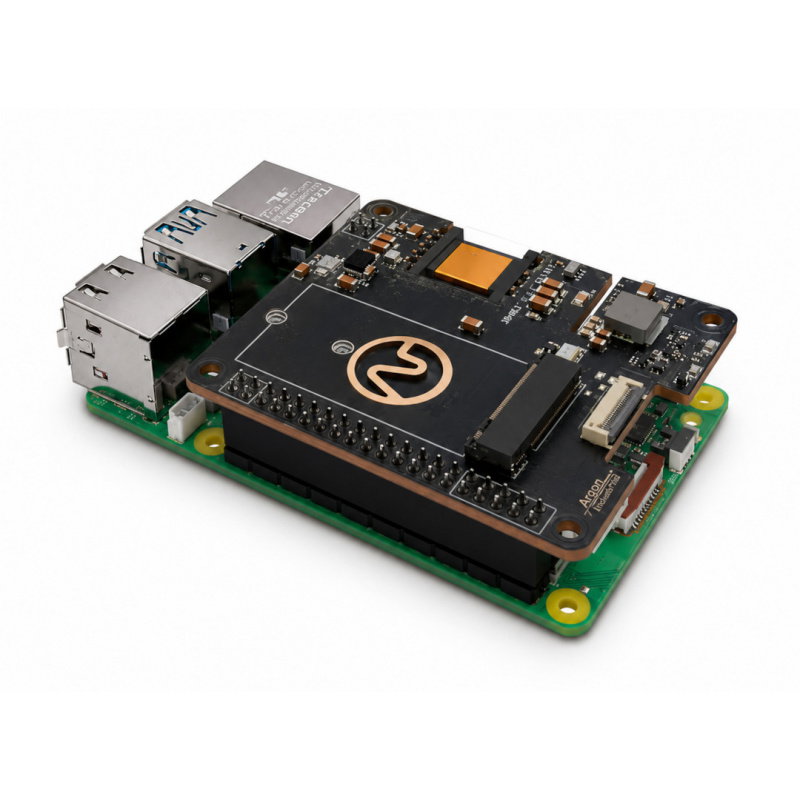

Argon Industria PoE+ HAT with M.2 NVMe - overlay for Raspberry Pi 5.
Argon Industria PoE+ HAT with M.2 NVMe is a functional PoE+ overlay for Raspberry Pi 5.Main features of the Argon Industria PoE+ NVMe overlay
- PoE+ power supply: the module allows you to power the Raspberry Pi 5 via an Ethernet cable in the IEEE 802.3af/at standard
- One cable for power and data: LAN cable transmits power and Gigabit Ethernet data simultaneously
- Stable 5V/5A output: The shield delivers up to 25W of power to the Raspberry Pi 5 and connected accessories
- M.2 NVMe slot: Supports M.2 NVMe SSDs in 2230 and 2242 formats via PCIe interface
- Better storage performance: NVMe drive provides faster data access than a traditional microSD card
- Raspberry Pi clustering: the solution makes it easy to build installations with multiple network-powered minicomputers
- Support for UPS installations: ability to work in systems with power backup via PoE infrastructure
- Additional 3-pin SH connector: 5V output for Raspberry Pi Touch Display 2 7", 5" screens and Argon HMI 8" and 10" screens
- Additional 4-pin SH connector: I2C interface with 3V voltage for Argon ONE V5 OLED screen
- Broad compatibility: compatible with Raspberry Pi 5 and Argon Poly+ 5, Argon NEO 5, Argon ONE V5 and Argon Industria HMI cases
Technical specifications
- Product type: PoE+ HAT with M.2 NVMe for Raspberry Pi 5
- Model: Argon Industria PoE+ HAT with M.2 NVMe
- Compatibility: Raspberry Pi 5
- Power standard: IEEE 802.3af/at PoE+
- Input voltage: 36V to 57V DC
- Output voltage: 5V
- Output current: 5 A
- Output power: up to 25 W
- Connectivity: Ethernet - data and power
- Data transmission: Gigabit Ethernet
- Storage: M.2 NVMe SSD slot
- Supported disk formats: 2230 / 2242
- Disk interface: PCIe
- Format: Raspberry Pi HAT standard
- Additional 3-pin SH output: 5V, for Raspberry Pi Touch Display 2 7", 5" screens and Argon HMI 8" and 10" screens
- Additional SH 4-pin output: I2C with 3V voltage, for Argon ONE V5 OLED screen
- Compatible housings: Argon Poly+ 5, Argon NEO 5, Argon ONE V5, Argon Industria HMI
The shield provides a stable voltage of 5 V at a current of up to 5 A.
