Electromagnet holding 12V 4W 45kgf
Holding electromagnet, powered by 12 V. With a standard acceleration due to gravity of 9.8 m/s 2 it maintains a mass of 45 kg . The current consumption of the device is 420 mA, the nominal power is approx. 5 W. The electromagnet has a mounting hole in the housing with an M6 thread (the set includes an appropriate screw). The product has dimensions: 49 x 21 mm. The length of the cable is approximately 30 cm.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product Description: Holding electromagnet 12V 4W 45kgf
Holding electromagnet , powered by 12 V. With a standard acceleration due to gravity of 9.8 m/s 2 it maintains a mass of 45 kg . The current consumption of the device is 420 mA, the nominal power is approx. 5 W. The electromagnet has a mounting hole in the housing with an M6 thread (the set includes an appropriate screw). The product has dimensions: 49 x 21 mm. The length of the cable is approximately 30 cm. An electromagnet is very often used as an actuator controlled by a microcontroller, such as the very popular Arduino . However, remember not to connect the magnet directly to the controller pins. In such a situation, the following electronic components should be used: a relay , an opto-isolator or a transistor amplifier .

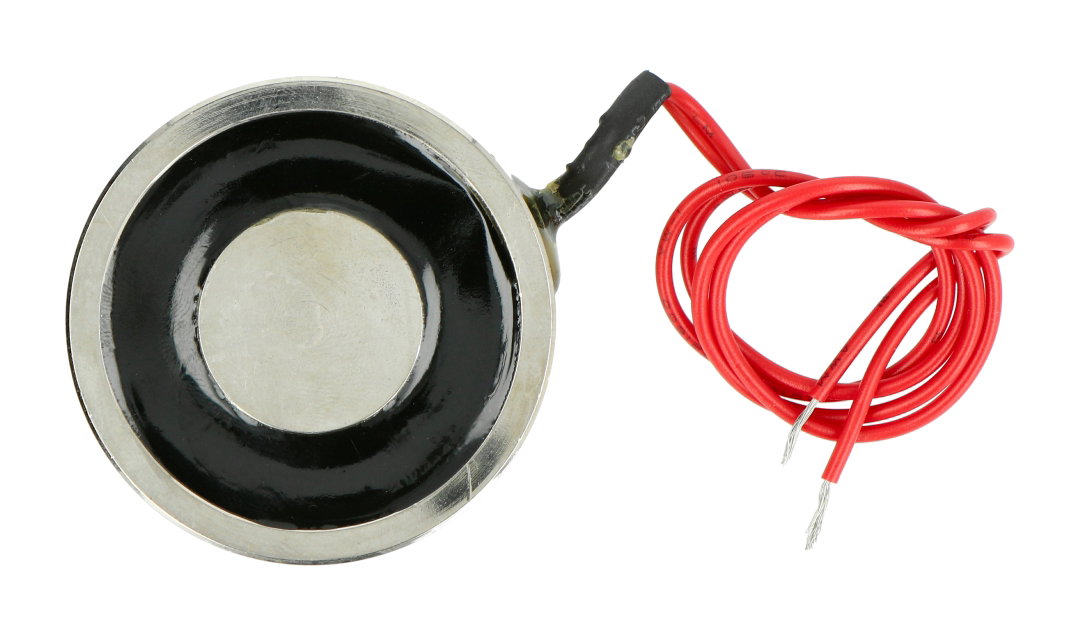

Holding electromagnet 12V 4W 45kgf .

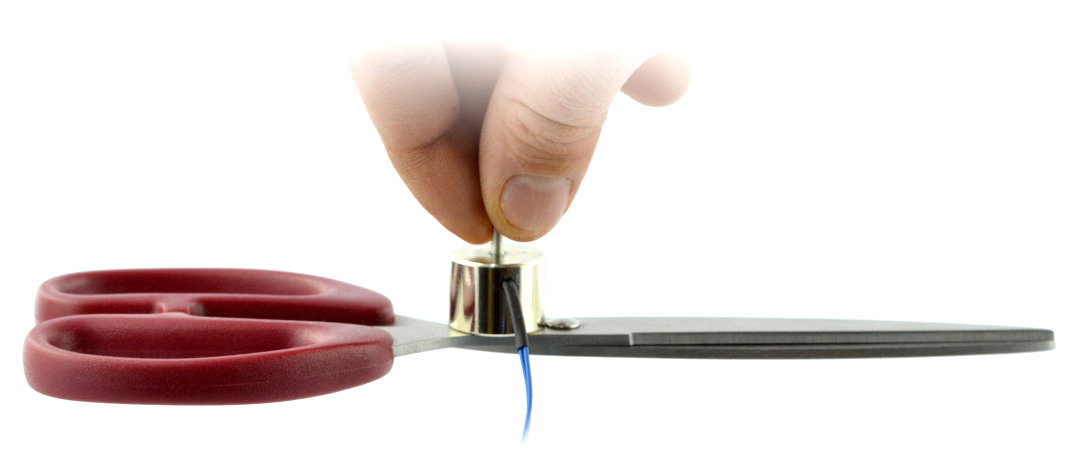

Electromagnet holding a load .
12V Holding Solenoid Specification
- Supply voltage: 12V
- Power: 5W
- Current consumption: approx. 420 mA
- Load capacity: 45 kgf (holds a mass of 45 kg for a gravitational acceleration of 9.8 m/s 2 )
- Cables with stripped insulation at the ends, approx. 30 cm long
- Mounting hole with M6 thread (screw included)
- Dimensions: 49 x 21 mm
- Weight: 235 g
Attention ! The manufacturer recommends maintaining good heat dissipation from the housing, because as the coil temperature increases, the holding force decreases. |
Useful links
| Name | Value |
|---|---|
| Width | 5 cm |
| Height | 2.5 cm |
| Depth | 10 cm |
| Weight | 0.24 kg |
