Product description: MB85RS4MT - 4Mb/512KB FRAM non-volatile SPI - Adafruit 4719.
The module withnon-volatile FRAM memoryfor data storage is characterized by low power consumption and very long durability. The data can be stored at room temperature for up to 95 years. It isideal for data logging with low or inconsistent power consumption.
The system's capacity is 4 Mb (512 KB) and the modulecommunicates via SPI interface witha frequencyup to 40 MHz. The outputs operate at 3 V and 5 V.
Module outputs
The module has leads to whichgoldpinconnectors should be soldered.The set includes a suitable 2.54 mm goldpin raster strip dedicated to the offered product.
Pin . | Description |
---|---|
VCC | Supply voltage: 3 V to 5 V. |
GND | The weight of the system. |
HOLD | The low state blocks the operation of the SPI bus. |
CS | Chip select - SPI bus device selection in low state. |
SCK | SPI bus clock line. |
MISO | SPI bus data line. |
MOSI | SPI bus data line. |
WP | Pin to status register security. |
Detailed description can be found inthe user guide. |

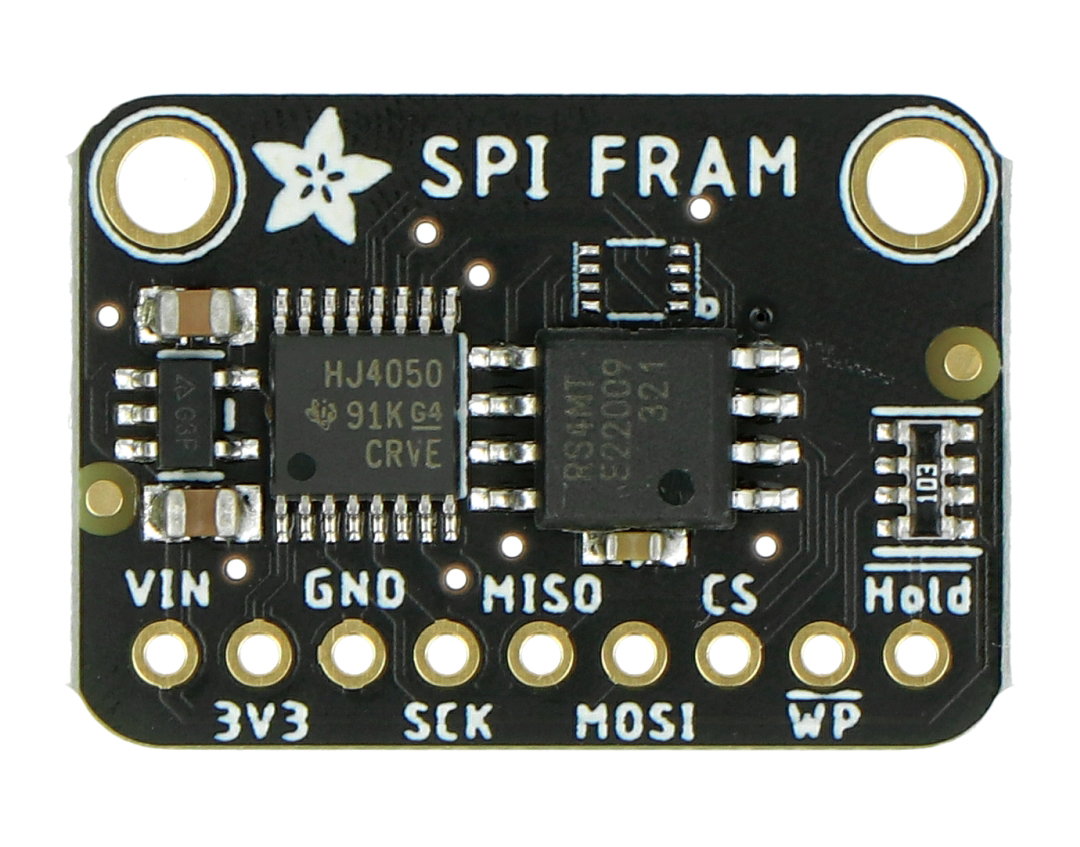

Memory specification
- Supply voltage: 3.0 V to 5.0 V
- Output operating voltage: 3.3 V to 5.0 V
- Integrated circuit: MB85RS4MT (documentation)
- Memory: 4 Mb (512 KB)
- Type of memory: FRAM
- Communication: SPI bus
- Leads: holes for goldpin connectors - raster 2.54 mm (self-soldering strip included)
