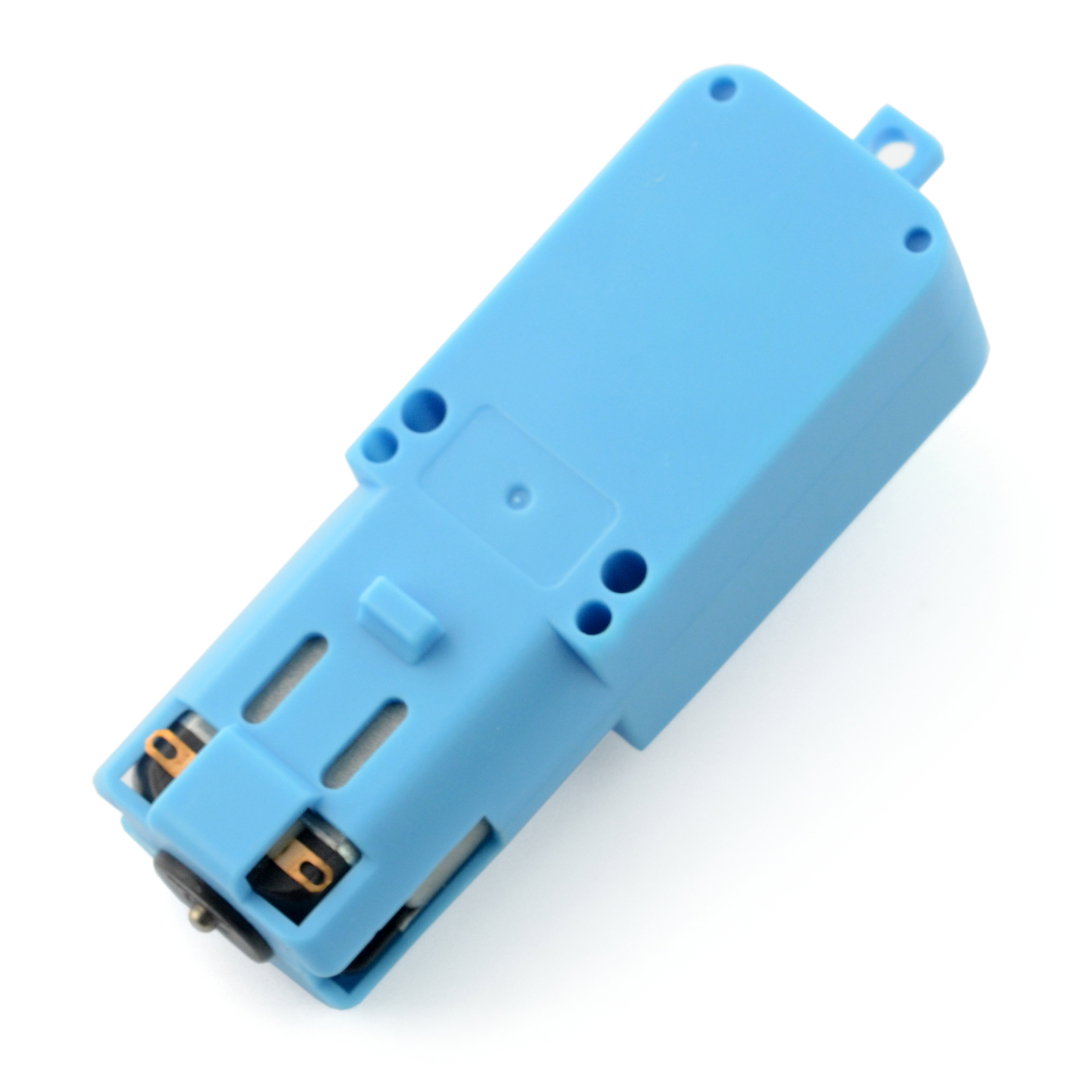

DC motor with 1:90 3-9V transmission with single shaft - Bi-Metal
Motor with 1:90 gear . After shifting, a single shaft rotates at a speed of up to approx. 113 rpm when powered by 6 V. It is powered by voltage from 1.8 V to 9 V and consumes an average of 500 mA of current.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: DC motor with gear 1:90 3-9V with single shaft - Bi-Metal
DC motor with 1:90 gear ratio . After shifting, a single shaft rotates at a speed of up to approx. 113 rpm when powered by 6 V. It is powered by a voltage ranging from 1.8 V to 9 V and consumes an average of 500 mA of current.
DC motor with gear.
Technical specifications of the engine with gear
- Supply voltage: 1.8V to 9V
- Power consumption
- 100 mA without load
- 500 mA during normal operation
- 820 mA with the shaft stopped
- Gear ratio: 1:90
- Rotational speed: 113 rpm (at 6 V)
- Shaft type: metal
- Shaft diameter: 5 mm
- Shaft height: 8 mm
- Gear: Bi-Metal
- The shaft is cut on both sides
- The engine has a single shaft
- Motor weight: 34.6 g
- Dimensions: 70 x 22 x 22 mm
| Name | Value |
|---|---|
| Length | 70 mm |
| Width | 22 mm |
| Voltage to | 3.0 V |
| Voltage from | 9.0 V |
| Motor - current | 500 mA |
| Motor - gear | 1:90 |
| Rotation speed | 120 obr/min |
| Mass | 35 g |
| Motor - shaft | 5.0 mm |
| Width | 8 cm |
| Height | 3 cm |
| Depth | 5 cm |
| Weight | 0.034 kg |
