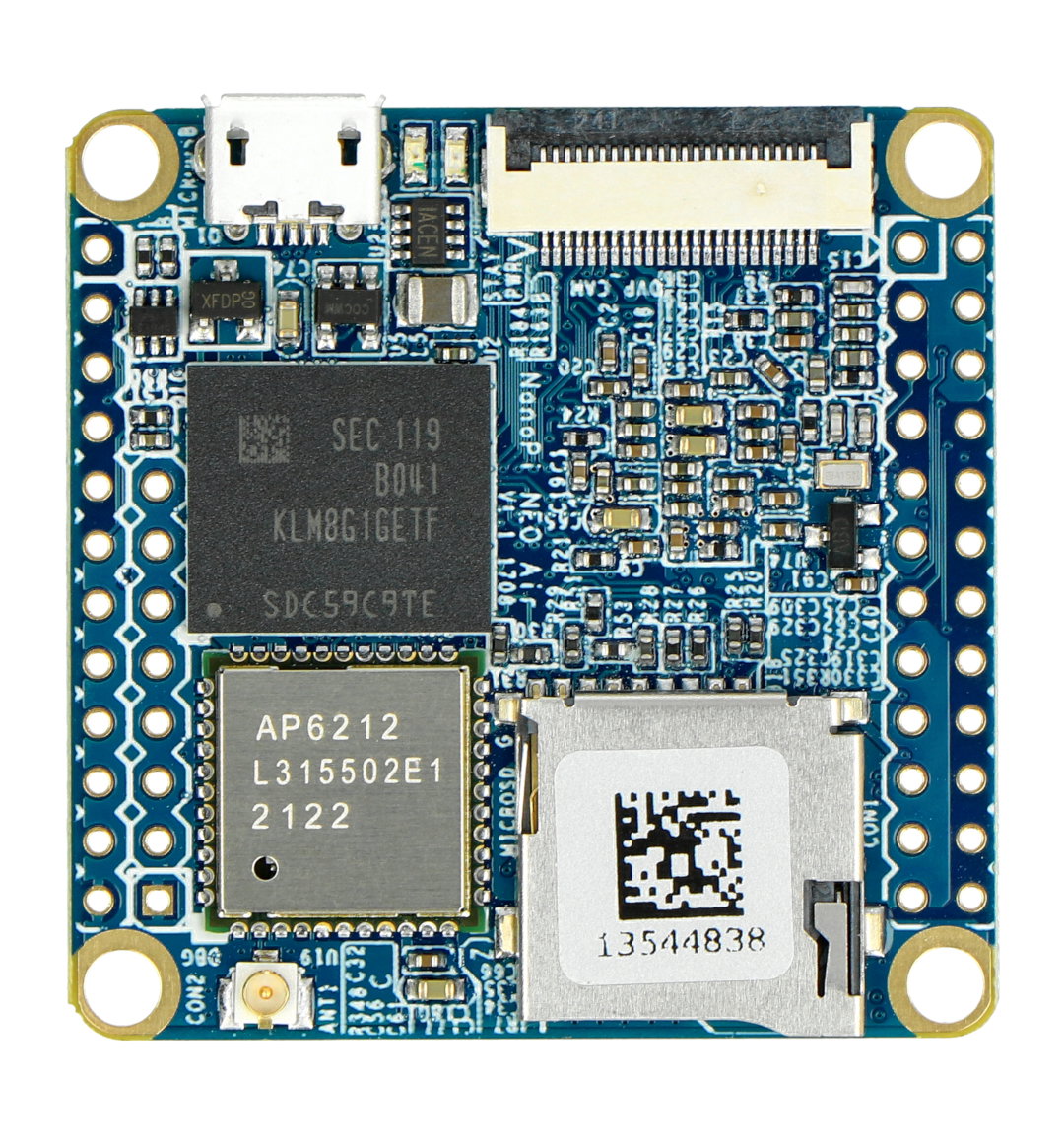

NanoPi NEO Air WiFi - Allwinner H3 Quad-Core 1.2GHz + 512MB RAM + 8GB eMMC
Miniature computer NanoPi in version Neo Air with Allwinner H3 quad-core ARM Cortex-A7 with a clock frequency of 1.2 GHz. Tile has a 512 MB DDR3 RAM, 8 GB eMMC, built-in wi-fi module and Bluetooth 4.0, and micro usb slot + 2 x USB host on pins 2.54 mm, 36 GPIO, connector for memory card microSD. Works with manufacturer's systems, u-boot and UbuntuCore.
We could not load the price.
The promotional price does not combine with quantity discounts.
[js src="//orbitvu.co/share/Du9udybnnqYDsfjKPoDTjB/3843179/360/script?auto_rotate_dir=left&background_color=0xffffffc8&border=no&border_color=0x000000&continous=yes&first_frame=1&border_frame=1&frame_rate=12&gui_background=0x000000c8&gui_foreground=0xffffffc8&gui_foreground_active=0x00b5a7c8&height=auto&lang=pl&logo_src=&max_scale=1&ovskin=no&preload_height=0&preload_width=0&rotate_dir=right&social=no&social_url=https%3A%2F%2Forbitvu.co%2Fshare%2FDu9udybnnqYDsfjKPoDTjB%2F3843179%2F360%2Fview&style=0&teaser=playonerotationslow&width=auto&html5_initial_info=touch&html5_hint=no&mousewheel=yes&buttons_type=auto&teaserplay_overlay_color=0x00000000&hires_support=yes&single_touch_pan_y=yes&content2=yes&report_bugs=no&partial_load=yes"]
Description
Miniature computer NanoPi in version Neo Air with processor of Allwinner H3 quad-core ARM Cortex-A7 with a clock frequency of 1.2 GHz. Tile has a 512 MB DDR3 RAM, 8 GB eMMC, built-in module WiFi and Bluetooth 4.0 and the slot for micro usb + 2 x USB Host on pins 2.54 mm,36 GPIO, connector for memory card microSD. Works with manufacturer's systems, u-boot and UbuntuCore.
The advantage of tile is its small size, the dimensions of the tiles 40 x 40 mm.
Botland is an official distributor of FriendlyARM products in Poland. The brand's quality shows best in the strict standards its computers, versatile accessories and handy add-ons are held to. All FriendlyARM products presented here are original.
What it takes to run minicomputer NanoPi?
- MicroSD memory card - carrier on which the operating system will be installed
- Power supply unit with a micro usb connector - 5 V with maximum load current 2 A
Operating system
NanoPi works with the systems selected by manufacturer: u-boot and UbuntuCore. The drive of device can be microSD card, which can be purchased in our store.
Operating systems can be downloaded from the manufacturer's website. The manufacturer also provides guide around the installation of the system. |
Communication
Minikomputer has basic communication interfaces that can be found in office computers of PC class. In addition to the previously listed connectors of audio and video, the user has at his or her disposal:
Communication
- 1x USB A + 2x USB Host on pins 2.54 mm: to which can be connected, for example, a mouse, a keyboard, a wi-fi card or USB flash drive. If you find that the slots are too short, you can increase their number using an external USB HUB. The interfaces displayed on pinach can be connected using wires.
- Wi-fi module: i.e. the possibility of direct connection to the network.
- Bluetooth 4.0: for communication in standard BT.
- GPIO x 36 pin: outputs/inputs with general purpose that can be used to control the LEDs, buttons, drivers of engines. Among them are the pins supporting interfaces: I2C, SPI and UART. The pins have to be soldered individually, goldpin raster strips of 2.54 mm can be purchased in our store.
- a slot for microSD: slot for memory card microSD on which the operating system can be installed.

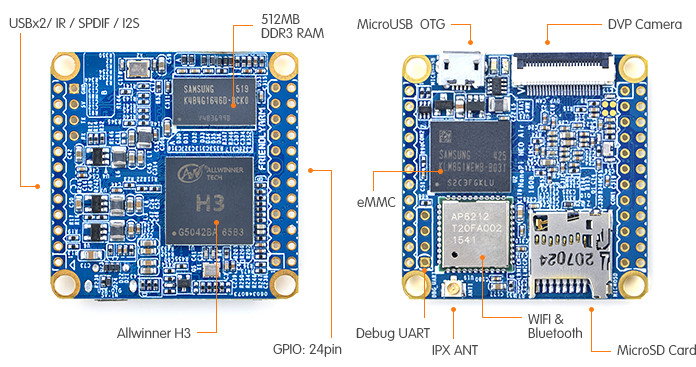

The distribution of the GPIO pins - pins have to be soldered individually, goldpin raster strips of 2.54 mm can be purchased in our store.
Power
As a power source, the system uses the microUSB connector. The manufacturer recommends that the voltage indicated on the connector had a value of 5.0 and output current of the used power supply shall not be less than 2.0 A. In our assortment you will find power supplies that meet these parameters, for example: power supply Extreme 2.1 A.
Starter set
The manufacturer has prepared a set of sensors and modules in a convenient chest that simplifies getting started with minicomputer.
|
Specification |
|
| Model | NanoPi Neo Air |
| Specification |
|
| Processor | Allwinner H3 |
| The core |
Quad-Core ARM Cortex A7 |
| Systems |
u-boot UbuntuCore |
| Clock frequency | 1.2 GHz |
| RAM |
512 MB |
| Memory |
8 GB eMMC microSD memory card |
| GPIO Socket |
36-pin connector for self-soldering |
| Power |
5 V / 2 A - microUSB |
| Tile sizes | 40 x 40 mm |
| Interfaces | |
| USB-Host |
1 x micro-USB slot 2 x USB Host on pins 2.54 mm |
| Network interface | Wi-fi 802.11 b/g/n |
| Communication | Bluetooth 4.0 |
| Video | - |
| Audio |
out on the GPIO connector |
| Commmunication |
UART, SPI, I2C, GPIO, PWM |
| The debugger |
Serial port 4pin / 2.54 mm |
| Additional |
Built-in LED |
Kit contents
1x USB A + 2x USB Host on pins 2.54 mm, to which can be connected, for example, a mouse, a keyboard, a wi-fi card or USB flash drive. If you find that the slots are too short, you can increase their number using an external USB HUB. The interfaces displayed on pinach can be connected using wires.
Wi-fi module, i.e. the possibility of direct connection to the network.
Useful links
| Name | Value |
|---|---|
| UC - Microcontroller | Allwinner H3 |
| UC - Core | Cortex A7 |
| UC - RAM | 512 MB |
| UC - core | 4. Quad Core |
| UC - Digital pins | 36 |
| UC - External memory | eMMC 8 GB |
| UC - freq | 1.2 GHz |
| UC - Ethernet | yes |
| UC - WiFi | yes |
| UC - USB | 1x USB |
| UC - Bluetooth | yes |
| UC - HDMI | no |
| UC - I2C | yes |
| UC - UART | yes |
| UC - Connector | 5V microUSB |
| UC - SPI interface | yes |
| UC - LCD interface | no |
| UC - Camera interface | yes |
| UC - Linux | yes |
| UC - Android | no |
| UC - Windows | no |
| Width | 11 cm |
| Height | 7.5 cm |
| Depth | 3 cm |
| Weight | 0.038 kg |
