DIY Magnetic Connector - Straight 9 Contact Pins - Adafruit 5470

Index: ADA-22220
Magnetic connectors, thanks to which you can easily and quickly connect two modules. The kit consists of two connectors - male with 9 pins pogo and female with 9 pins . The pins' pitch is 2.2 mm.
DIY Magnetic Connector - Straight 9 Contact Pins - Adafruit 5470
€14.90
€12.11 tax excl.
Delivery 2 pcs scheduled for 2024-04-03
Waiting for delivery
PayPal payment
Manufacturer: Adafruit

Product description: DIY Magnetic Connector - straight 9-pin magnetic connectors - Adafruit 5470

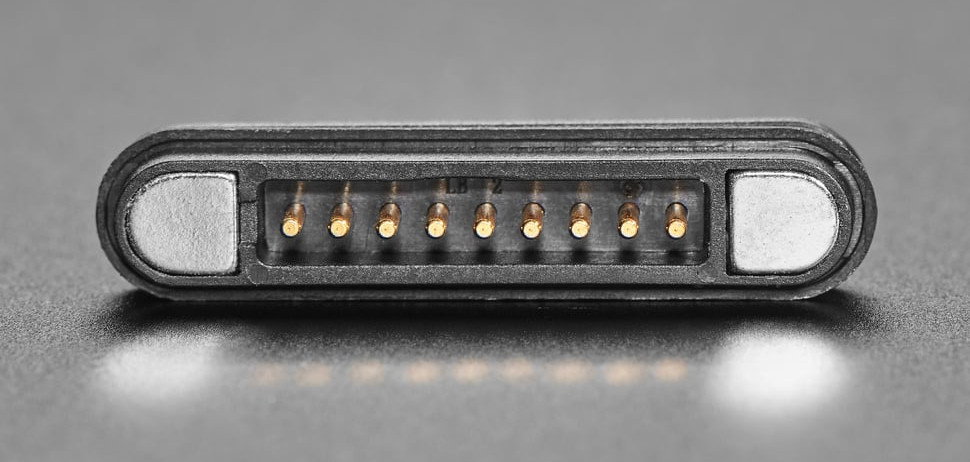

Magnetic connectors are very often used during prototyping of systems - they facilitate and accelerate the process of connecting two modules with each other. Those produced by Adafruit are modeled on MagSafe, and a similar solution can also be found in MacBooks and the littleBits set. The kit consists of two connectors - male with 9 pins pogo and female with 9 pins . The pins' pitch is 2.2 mm. Attempting to reverse connect the connectors will end up pushing them apart.

DIY Magnetic Connector - straight 9-pin magnetic connectors - Adafruit 5470.

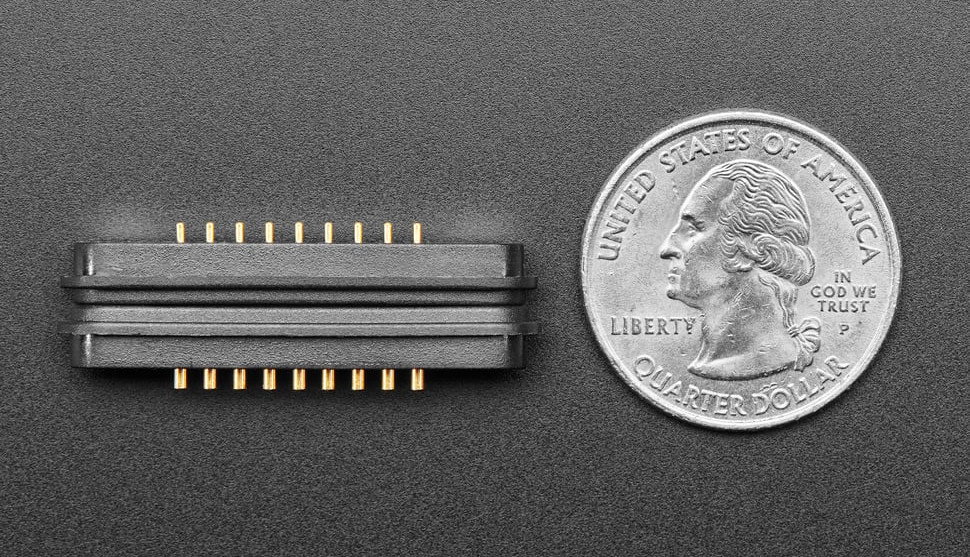

The magnetic joint will greatly facilitate the process of connecting two modules to each other.

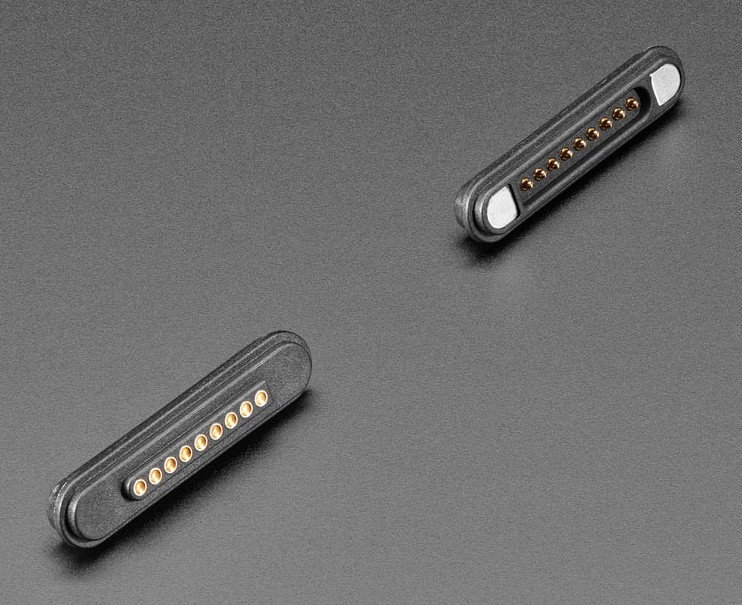

Included

  • 1x male pogo magnetic connector, 9-pin, straight
  • 1x female magnetic connector, 9-pin, straight

The offer also includes 4-pin and 5-pin angular magnetic connectors - check it out!

Technical specification of Adafruit magnetic connectors

  • Type of connectors: magnetic, pogo
  • Number of pins: 9
  • Pitch: 2.2 mm
  • Type: simple
  • Maximum voltage: 12 V
  • Maximum current: 3 A.

The set consists of two magnetic connectors.

Raster 2.2 mm
Lead 9
Conn Type magnetic
Conn - Standard male
Conn - Standard female
Package width 2.5 cm
Package height 6 cm
Package depth 2.5 cm
Package weight 0.007 kg
