Product Description: Adafruit ESP32-S3 Reverse TFT Feather - 4 MB Flash, 2 MB PSRAM
Module from the Feather series, based on the ESP32-S3 , which is an improved version of the Adafruit ESP32-S3 TFT Feather. It is equipped with a color TFT display with a diagonal of 1.14 " and a resolution of 240 x 135 px . The IPS technology used improves color quality from every viewing angle. The board has a dual-core Espressif system clocked at 240 MHz, 4 MB Flash memory and 2 MB PSRAM. The Adafruit module also offers the user WiFi 2.4 GHz and Bluetooth LE (Low Energy) wireless communication and a native USB type C connector. The manufacturer placed the display in the front of the module, so it can be used as a front panel for IoT devices. For devices requiring low current consumption, the Feather module has a 3.3 V LDO regulator controlled by the GPIO output. In low-power mode, the entire module can draw about 100 uA of current.

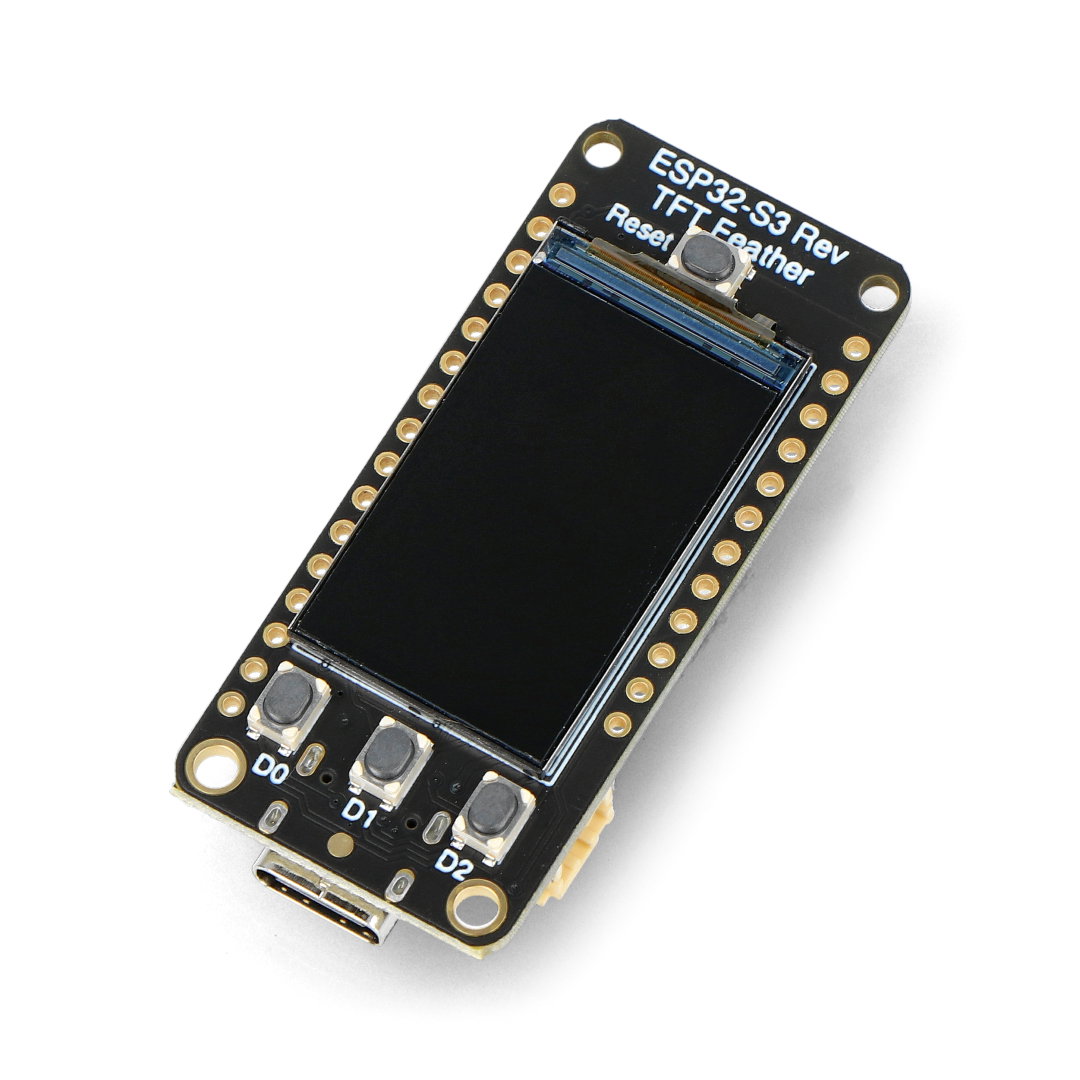

Adafruit ESP32-S3 Reverse TFT Feather - 4MB Flash, 2MB PSRAM.
Also check the manufacturer's user guide .

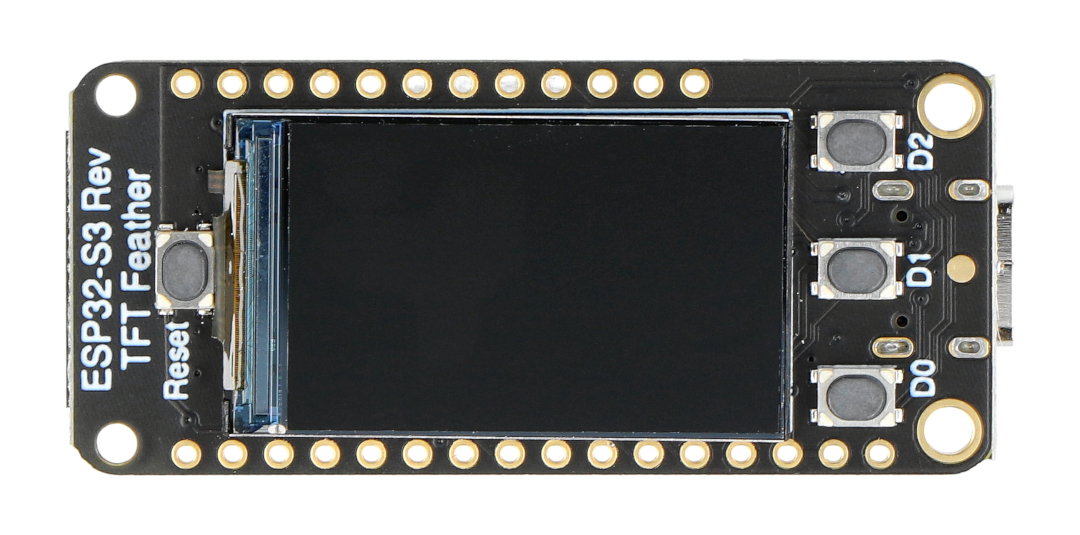

In the central part of the board there is a color display.
What is the Feather family of chips?
Feather consists of control modules (Feathers) and peripheral devices (Wings). The pins of the plates have been designed in such a way as to enable the assembly of entire systems on breadboards using goldpin connectors. An unlimited number of Wings modules can theoretically be connected to one main module (Feather). Most extensions come with rich development resources, including example program codes and libraries.
Special features of the module
- Tensilica dual-core processor - providing high computing power. There is also 4 MB Flash memory and 2 MB PSRAM at the user's disposal.
- Wireless communication - the built-in ESP32-S3 chip supports communication via WiFi 2.4 GHz and Bluetooth Low Energy (BLE).
- Compatibility with Arduino - the board supports the ESP-IDF and Arduino IDE environments, which facilitates the programming process, and also allows you to use the entire back-end of ready-made libraries.
- Built-in Li-Pol charger - thanks to the integrated charging system and battery status monitoring - MAX17048 - it is possible to use the system without an external power source.
- Low energy consumption - the use of the ESP32 microcontroller allowed to reduce the current consumption to even 40 uA, when the system is powered from the Li-Pol battery. For further optimization, it is also possible to disable the NeoPixel LED and the display.
- TFT display - placing a color TFT display on the front side of the board, together with three additional buttons, allows the module to be used as a front panel.
The module is equipped with a dual-core Tensilica processor.

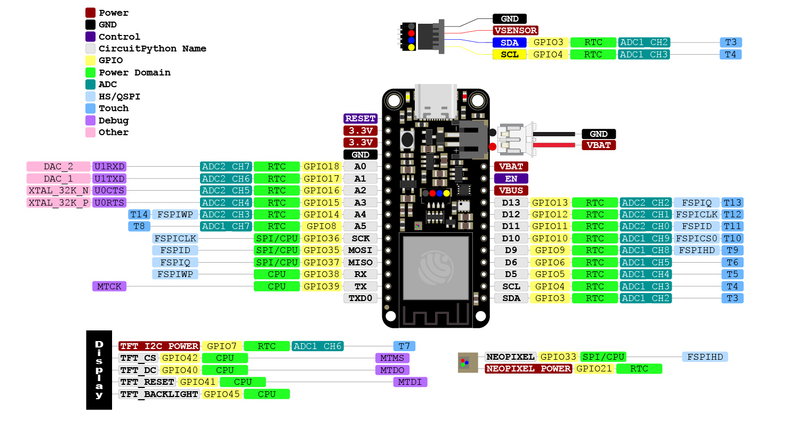

Pin placement.
Pin description
- GND – common module ground
- VBAT - positive battery voltage lead
- Pins A0 to A5 - can be used as analog inputs
- Pins D5, D6, D9, D10 to D13 - digital inputs and outputs
- UART interface:
- RX: UART receiving pin
- TX: UART transmit pin
- I2C interface (shared with STEMMA QT connector):
- SCL – bus clock pin
- SDA - bus data pin
- SPI interface:
- MISO - SPI data receiving pin
- MOSI - SPI interface data transmitting pin
- SCK – bus clock pin
Module technical specification
- Chip: ESP32-S3 with Tensilica 240MHz dual-core processor
- Flash memory: 4MB
- PSRAM: 2MB
- Display: color TFT IPS with a diagonal of 1.14 "and a resolution of 240 x 135 px
- UBS: type C - for programming and power supply
- Wireless communication: WiFi 2.4 GHz and Bluetooth LE
- The MAX17048 system monitoring the battery operation
- Reset and DFU buttons
- STEMMA QT connector for I2C devices
- LEDs informing about the working status and charging the module (including Neopixel)
- Low power consumption down to 40 uA in sleep mode
- Compatible with Arduino and CircuitPython
Kit contents
- Feather ESP32-S3 Reverse with TFT Display - WiFi Module - 4 MB Flash 2 MB PSRAM - Compatible with Arduino - Adafruit 5691
- Goldpin strip 1x16 - raster 2.54 mm - for self-soldering - 2 pieces

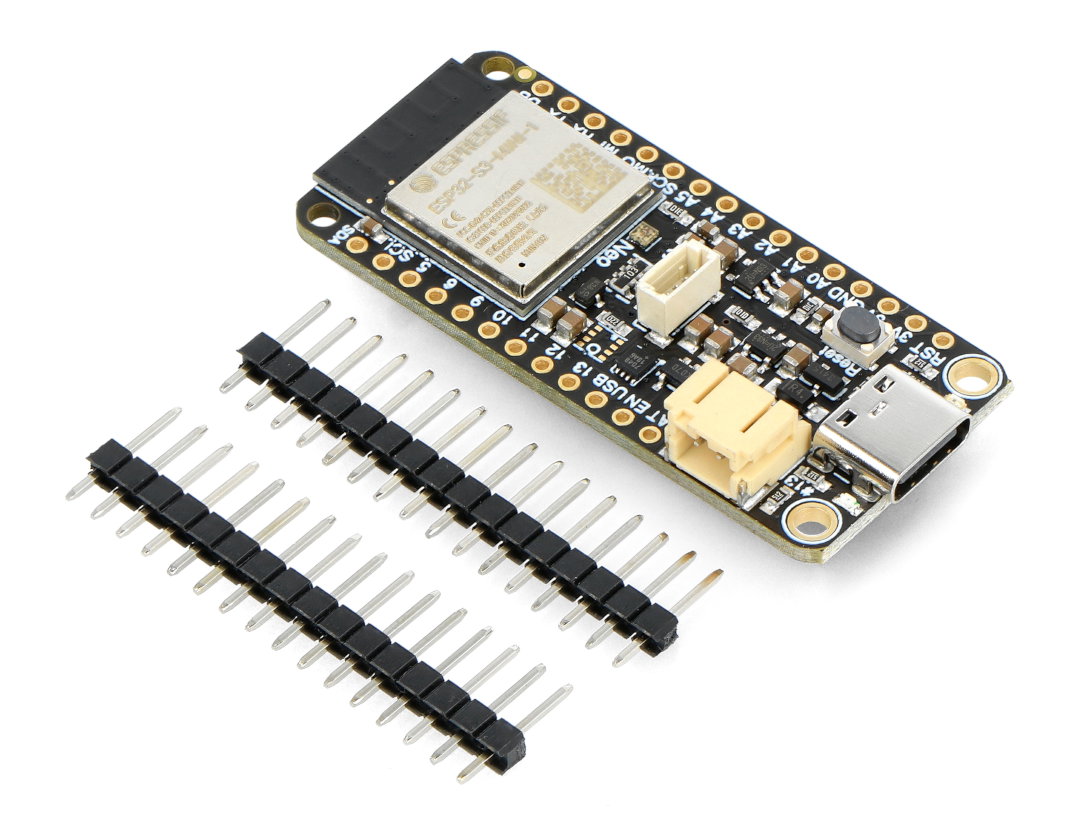

Components included in the set.
