Product description: TB67H420FTG - 47 V / 3,4 A dual channel motor controller - Pololu 2999
The module based on theTB67H420FTGchip allows you tocontrolup totwoDC motors. The motor can be supplied with voltagefrom 10 V to 47 Vat continuous current up to 1.7 A, momentary (for a few seconds) up to 4.5 A. We recommend reading theTB67H420FTGdocumentation before use.
Controller pinouts
| PIN | Description |
|---|---|
| Vin | Motor supply voltage from 10 V to 47 V. It has protection against polarity change of supply voltage (up to 40 V). |
| GND | System ground potential. |
| VM | Output to provide power to the motor after reverse polarity protection. It can be used to power other components of the system. |
| A+ | Motor outputs A. To be connected for single channel mode. |
| A- |
|
| B+ | B motor outputs. To be connected for single channel mode. |
| B- | |
| VCC | Adjustable 5 volt output. This pin gives access to the voltage from the TB67H420FTG internal regulator. The output should only be used for logic inputs as it can only provide a few milliamps. |
| INA1 |
Control input forA+.PWM can be applied to this pin (usually PWMA in the high state). Default state is low. In single channel mode it controlsA+andA-. |
| INA2 |
Control input forA-.PWM can be applied to this pin (usually PWMA in the high state). Default state is low. In single channel mode, controlsB+andB-. |
| PWMA |
PWM input for channelA. Default state low. In single channel mode, the PWM input. |
| INB1 | Control input forB+.PWM can be applied to this pin (usually PWMB in high state). Default state is low. |
| INB2 | Control input forB-..PWM can be applied to this pin (usually PWMB in the high state). Default state is low. |
| PWMB | PWM input for channelB. Default state low. |
| LO1 |
Error diagnostics output. Goes low when an error occurs due to excessive current or temperature. Default state is high. |
| LO2 | Error diagnostics output. Goes low when load or temperature fault occurs. Default is low. |
| VREFA | The output indicates the current threshold value for channelA.In single channel mode, outputs the current threshold value. |
| VREFB | The output indicates the current threshold value for channelB. |
| TBLKAB | Noise filter configuration pin for the constant current circuit. Default is low. Input should not be changed when the controller is powered. |
| HBMODE | Operating mode configuration input, High state for single channel mode, low state for dual channel trub.This input should not be changed when the controller is powered. |
Sensor connection with two motors
|
Complete truth table for TB67H420FTG |
||||||
| Input | Output | Operating mode | ||||
| PWMx | INx1 | INx2 | x+ | x- | ||
| 0 | 0 | 0 | Z | Z |
Free running. Standby mode if all PWM and IN inputs are in the low state. |
|
| 1 | 0 | L | L |
Stop |
||
| 0 | 1 | |||||
| 1 | 1 | |||||
| 1 | 0 | 0 |
Z | Z | Free running | |
| 1 | 0 | H | L | Forward speed | ||
| 0 | 1 | L | H | Reverse rotation | ||
| 1 | 1 | L | L | Stop | ||

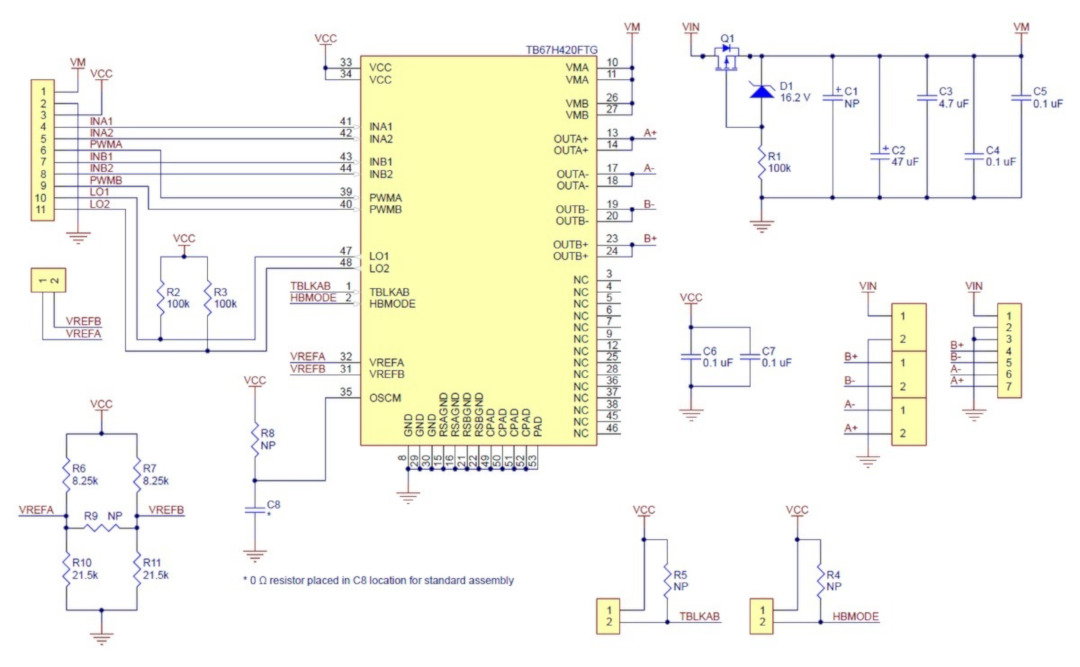

Diagram
The system includes the controller and the necessary passive elements for its proper operation. Electronic circuit diagram is available on the drawing below.
Technical specifications of the controller from Pololu
- Single / double channel motor controller
- Motor supply voltage: from 10 to 47 V
- Output current:
- 1.7 A (4.5 A instantaneous) in dual channel mode
- 3.4 A (9 A instantaneous) in single channel mode
- Configurable current limiting thresholds of 4.5 A (dual channel mode) and 9 A (single channel mode), can be limited by additional resistors and voltage sources.
- No need for an additional logic power supply. Inputs are compatible with 3V and 5V
- Undervoltage, short-circuit and overheat protection
- Protects against reverse polarity of the supply voltage up to 40 V
- Dimensions: 25,4 x 30,5 mm
