Description: Odroid HC4 - Amlogic S905X3 Quad-Core 1.8GHz + 4GB RAM

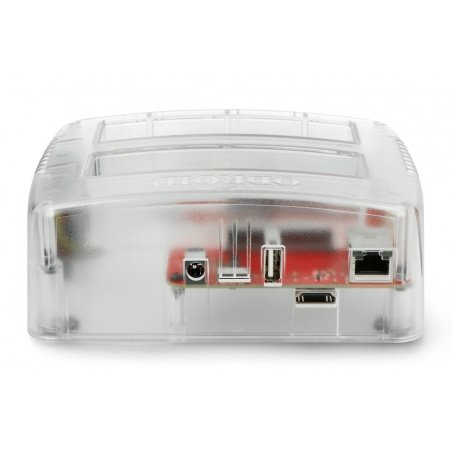

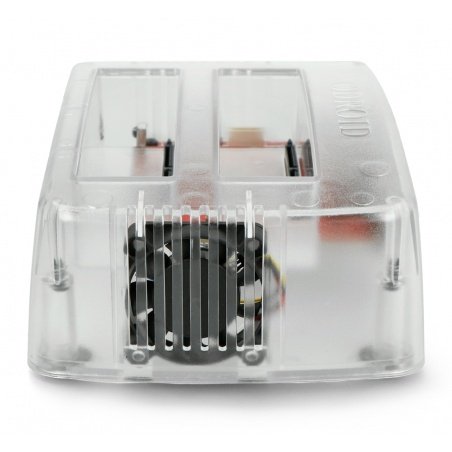

The Odroid HC4 minicomputer is based on the same processor as Odroid C4 -Amlogic S905X3 Quad-CorewithARM Cortex A55core at 1.8 GHz. The device is equipped with4 GB of RAM, Mali-G31 graphics, microSD card slot, two SATA connectors, HDMI, USB connector and Gigabit Ethernet port. The HC4 was created with the vision of creating high-performance NAS / Home Cloud servers. The minicomputer is enclosed ina transparent housingwith access to all ports of the device.
Odroid HC4 allows you to connect two 3.5" HDDs, two SSDs or 2.5" HDDs, as well as one 3.5" HDD and one 2.5" SSD.
Also availablewith OLED display.
What do I need to run my Odroid HC4 minicomputer?
- MicroSD memory card- a memory carrier on which the operating system will be installed.
- Power supply 15 V / 4 A- minicomputer equipped with 5.5 / 2.1 mm DC socket.
- HDMI cable- to connect the device with a monitor or other display.
- Mouse and keyboard- to navigate the system interface and enter data.
Operating system for Odroid HC4
The Odroid HC4 Minicomputer has a function to boot from the hard drive via the SATA port whena microSD cardis not inserted. It works with Linux Debian / Ubuntu and other Linux systems with kernel 4.9.230 or higher, and Mainline with kernel 5.8 or higher.

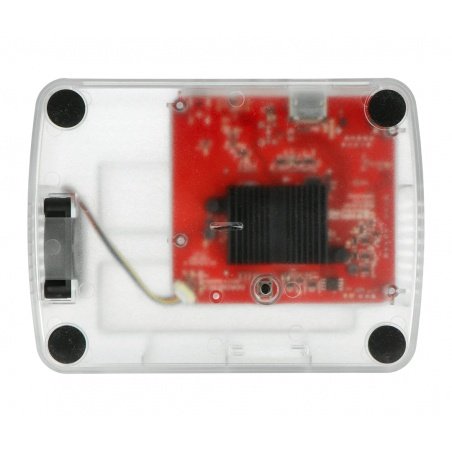

The distribution of components on the Odroid HC4 board
|A||Amlogic S905X3 processor|
|B||4GB DDR4 RAM|
|C||2x SATA port|
|D||RJ45 port 10/100/1000 Mb/s|
|E||HDMI 2.0 port|
|F||USB 2.0 port|
|G||DC jack 5.5 / 2.1 mm|
|H||2x status LED|
|K||5x GPIO pin (for optional OLED display)|
|L||MicroSD card slot|
|N||System start-up switch|
Specification Odroid HC4
ARM Cortex A55
Ubuntu / Debian
|Memory RAM||4 GB DDR4|
SATA for two 2.5" / 3.5" drives
|GPIO socket||5-pin connector for OLED display|
15 V / 4 A
DC Jack 5.5 / 2.1 mm
|Dimensions of the tiles||90,5 x 84 x 25 mm|
|USB Host||USB 2.0 socket type A|
|Network interface||10/100/1000 Mbps Ethernet|
