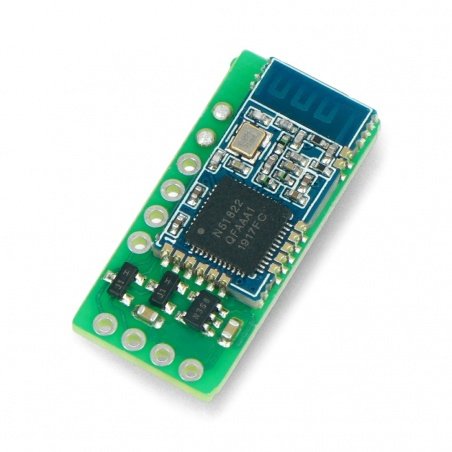

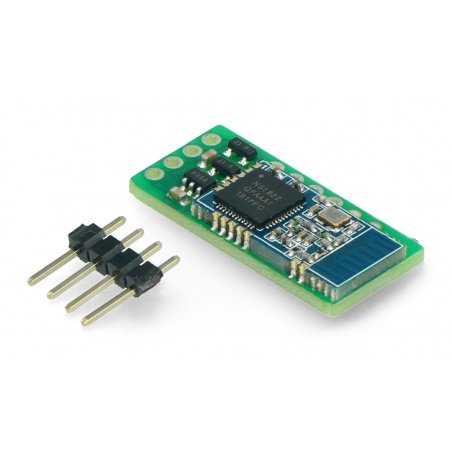

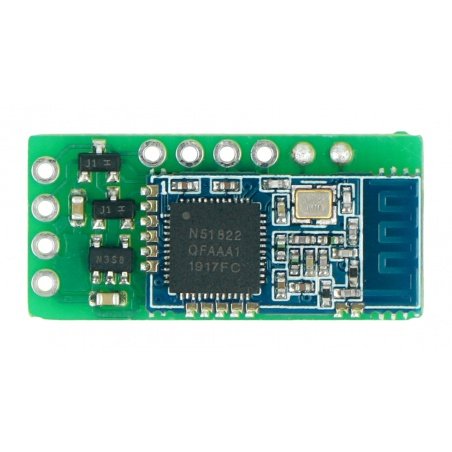

BBMagic BBMobile - Bluetooth LE module for Arduino, STM, ARM, AVR

Index: BBM-19294 EAN: 5904422358655
Module created by BBMagic, designed for Arduino and other modules with STM, ARM, AVR, PIC microcontrollers, etc. It communicates with Arduino via UART serial interface at 9600 bps or 4800 bps. Allows you to create wireless mobile interfaces on your smartphone screen. Application interface description is sent as a text data structure in popular JSON format. The module is powered from 3.3 V to 5 V, communication tolerates 5 V.
BBMagic BBMobile - Bluetooth LE module for Arduino, STM, ARM, AVR
€11.50
€9.35 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: BBMagic
Compatibility: Arduino

Product description: BBMagic BBMobile - Bluetooth module for Arduino, STM, ARM, AVR

BluetoothLow Energy module created byBBMagicDesigned for Arduino and other modules with STM, ARM, AVR, PIC microcontrollers. It communicates with Arduino via serialUARTinterface at 9600 bps or 4800 bps. Allows you to createwireless mobile interfaceson your smartphone screen. Application interface description is sent as a text data structure in popular JSON format. The module is poweredfrom 3.3 V to 5 V,communication tolerates 5 V.

Moduł Bluetooth ArduinoArduino Bluetooth Module.

Thanks to the Bluetooth module for Arduino BBMobile

  • Forget about problems with aesthetic user interface - build and operate graphical HMI with simple text commands
  • Make your project wireless
  • Create beautiful graphical interface for your devices
  • Use many ready-made sketches, schemes and designs
  • Learn how to use the lightweight and popular JSON (JavaScript Object Notation) data exchange format
  • Take advantage of the latest Bluetooth Low Energy technology

Main features of Bluetooth Arduino BBMobile

  • Allows you to create wireless mobile interfaces on your smartphone screen
  • Compatible with Arduino, ARM, AVR, PIC, STP controllers, etc.
  • Works with the free BBMobile application for Android and mobile devices with Bluetooth from version 4.0 (Bluetooth Low Energy - BLE)
  • Applications created and supported by any microcontroller with a UART interface, 9600 bps, 8N1
  • Description of the application interface is sent as a text data structure in the popular JSON format (JavaScript Object Notation)
  • The microcontroller controls the application behavior by sending short control commands
  • Information about user interaction (pressing a button, switching a switch, etc.) is sent back to the microcontroller
Podłączenie Bluetooth do Arduino
How to connect Bluetooth module to Arduino.

How to connect Bluetooth module to Arduino

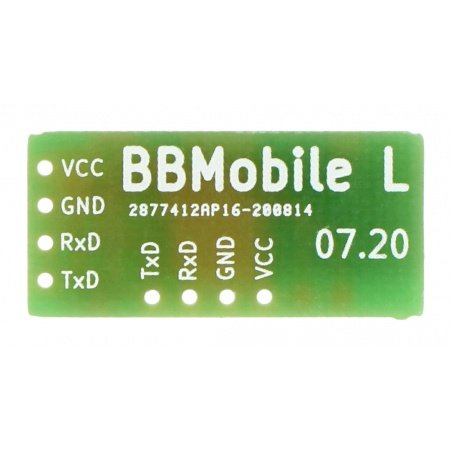

The Bluetooth module communicates over theUARTserial interface at 9600 bps or 4800 bps. The BBMagic is poweredfrom 3.3 V to 5 V,the UART communication interface tolerates 5 V. The pins are described on the back of the Bluetooth module board. Plug Bluetooth module into pins 2, 3, 4 and 5 of Arduino module.

Specification for BBMobile Bluetooth module

  • Power supply: 3,3 V to 5 V
  • Communication: UART (tolerance 5 V, default 9600 bps, possible 488 bps, 8N1 - 8 data bits, no parity bit, 1 stop bit)
  • Wireless communication: Bluetooth version 4.0 and higher (Bluetooth Low Energy - BLE)
  • Creating mobile applications by sending JSON text code via UART
  • Communication with application via short text commands
  • Free BBMobile application for Android from version 4.4.2
  • Dimensions: 27 x 12 x 4 mm
Package width 4 cm
Package height 0.3 cm
Package depth 7 cm
Package weight 0.002 kg
