Devastator Tank Mobile Robot Platform (Metal DC Gear Motor)

Index: DFR-06610 EAN: 5904422308957
BOTLAND B. DERKACZ SPÓŁKA JAWNA Opinie z ekomi-pl.com

A new version of the universal, mobile platform made of aluminum on two tracks. It has two metal DC motors that can be controlled using any microcontroller (including Arduino) withh driver of engines.

PLN379.00
PLN308.13 tax excl.
Czas oczekiwania: ok. 10-30 dni
Waiting for delivery
30-day returns
PayPal payment
Manufacturer: DFRobot

Description

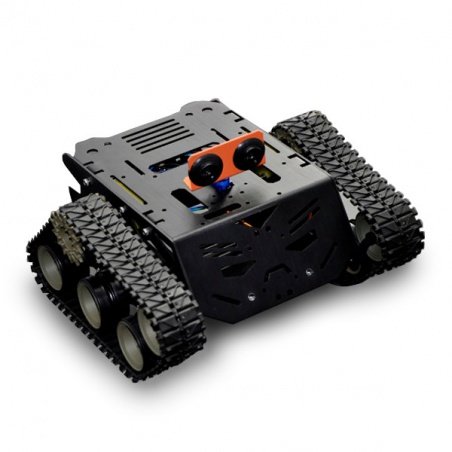

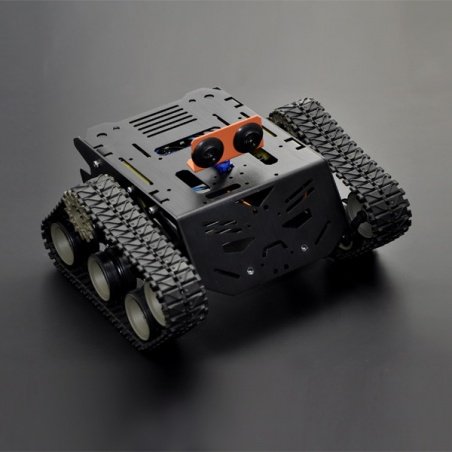

The devastator is a tracked platform to build a mobile robot. In addition to the chassis, the set includes two metal DC motors and tracks along with necessary mounting devices. Elements of the chassis are made of aluminum that provides high durablility. The boards have holes allowing to mount various sensors, controllers, for example, Romeo, Arduino Raspberry Pi manufacturer.

This is a newer version of the popular Devastator. It has the following improvements:

  • The new form has a greater number of modules
  • Modular wires - no soldering needed
  • The plastic engines have been replaced by more resistant - metal
  • Increased speed and torque
  • Increased payload from 1.5 kg to 3 kg
  • New suspension to overcome the most difficult areas

The platform is simple to install, the set includes illustrated instruction. In order to start robot, you just need to fold the chassis and add any robot controller (for example, compatible with the Arduino system, Romeo V2 is equipped with the driver of motors L298). In our offer, we also have sensors that can extend the robot's capabilities. The devastator is also compatible with Intel Edison.






Set requires self-assembly, included is user manual.

 Specification

  • Engines with gear
    • Supply voltage of motors: from 2 V to 7.5 V
    • Rated voltage: 6 V
    • Gear: 45:1
    • The shaft is D-shaped: diameter of 4 mm
    • No-load speed (6V): 133 rpm
    • No-load current (6 V): 0.13 A
    • Torque (6V): 4.5 kg*cm (0,44 Nm)
  • Design
    • Load capacity: 3 kg
    • The diameter of the tracks: 43 mm
    • Maximum speed: 36 cm/sec
    • The sizes of the whole design: 225 x 220 x 108 mm
    • The mass of the whole design: 1.3 kg



Chassis - wheels 2
Chassis - type tracked
Chassis + drive yes
Chassis + driver: no
