IR LED Osram

Index: RSO-10225 EAN: 5904422303013

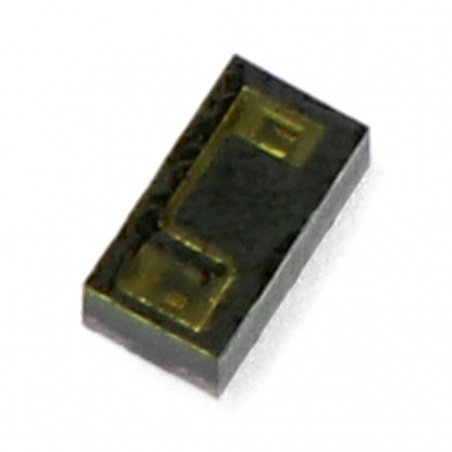

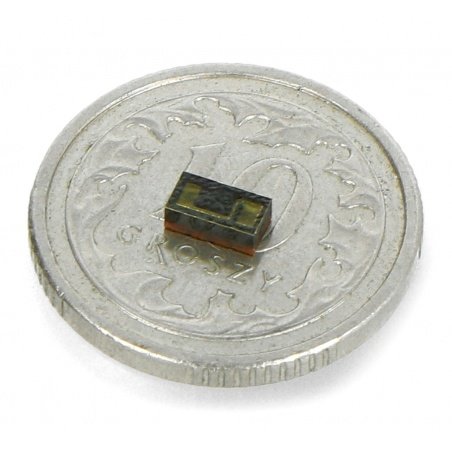

Miniature digital proximity and light sensor from OSRAM. It detects objects at a distance of up to 160 mm and also light in the range from 0,0022 lx to lx 73000. It has a built in IR transmitter. It communicates via an I2C bus, it operates with a maximum voltage of up to 4.5 V.

€2.53
€2.06 tax excl.

In stock, shipping 24 hours!
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Osram

Description

Miniature digital proximity and light sensor from OSRAM. It detects objects at a distance of up to 160 mm and also light in the range from 0,0022 lx to lx 73000. It has a built in IR transmitter. It communicates via an I2C bus, it operates with a maximum voltage of up to 3.6 V. The sensor, due to the small size, find application in mobile phones, notebooks, cameras, etc.

Specification

  • Measuring range of:
    • distance: up to 160 mm
    • light:from0,0022 lxto lx 73000.
  • The maximum voltage VDD: 4.5 V
  • Maximum current for SDA and INT: 7mA
  • Current consumption:
    • 0.8 µA in standby mode
    • 90 µA for the operation ALS
    • 60 µA for the PS operation
  • The IR transmitter of 850 nm
  • The functions of PS and ALS
  • Communication: I2C
  • Case: surfactant soldered SMD
  • Operating temperature: -40 °C to 85 °C
  • Storage temperature: -40 °C to 100 °C
  • Dimensions: 4 x 2.1 x 1.35 mm

Voltage to 0.5 V
Voltage from 4.5 V
Interface I2C
Sensor - distance to 1 cm
Sensor - distance from 0 cm
