DFRobot Gravity: digital I2C multiplexer - 8-channel

Index: DFR-12628 EAN: 6959420914173

Module with multiplexer that allows you to connect 8 different digital I2C buses to one interface, for each, there are separate pins SDA (bus of data line) and SCL (clock line of the bus). The device operates with a supply voltage from 3 V to 5 V.

DFRobot Gravity: digital I2C multiplexer - 8-channel
€8.50
€6.91 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: DFRobot
Compatibility: Arduino Raspberry Pi

Description

Module withmultiplexerthat allows you to connect8 differentdigitalI2C buses to one interface, for each, there are separate pins SDA (bus of data line) and SCL (clock line of the bus). The device operates with a supply voltage from3 V to 5 V, the output I2C bus has the ability to change the default address,0x70 to 0x77. Theoretically, it is possible to connect up to 8 multiplexers that allows you to control up to64 devices through a single I2C interfaceof minicomputer.The kit also includes a cable suitable forGravity DFRobot IO Expansion Shieldand a 4-pin goldpin connector.

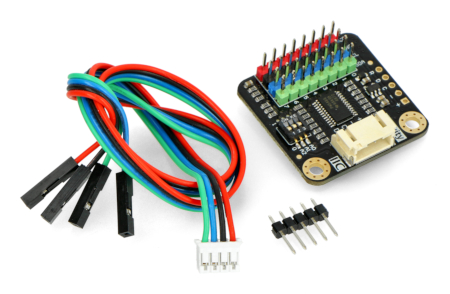

multiplexer gravity

Pins

The system has four pins on a special connector, to which the cable is included in the package.

dfrobot multiplexer i2c

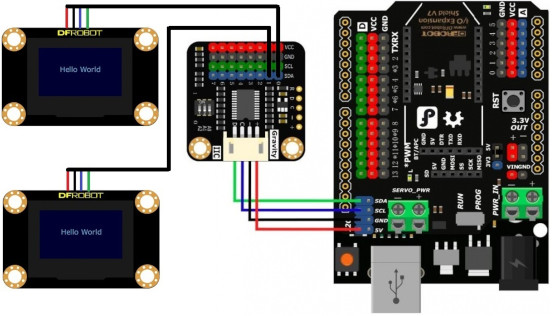

Connection example of module withDFRobot Gravity shield.

Pin Description
VCC Supply voltage: from 3.3 V to 5 V.
GND The ground of the system.
SCL Clock line of I2C interface.
Traffic Data line of I2C interface.

Specification

  • System:TCA9548A
  • Supply voltage: from 3.3 V to 5 V
  • Connector type: PH2.0-4P
  • Interface: I2C (IIC)
  • Clock I2C: 100K, 400K
  • The number of I2C ports: 8
  • The default I2C address: 0x70
  • Range of I2C addresses: from 0x70 to 0x77
  • Dimensions: 32 x 32 mm

Sensor - type multiplexer
Package width 5.7 cm
Package height 2.5 cm
Package depth 6.3 cm
Package weight 0.017 kg
