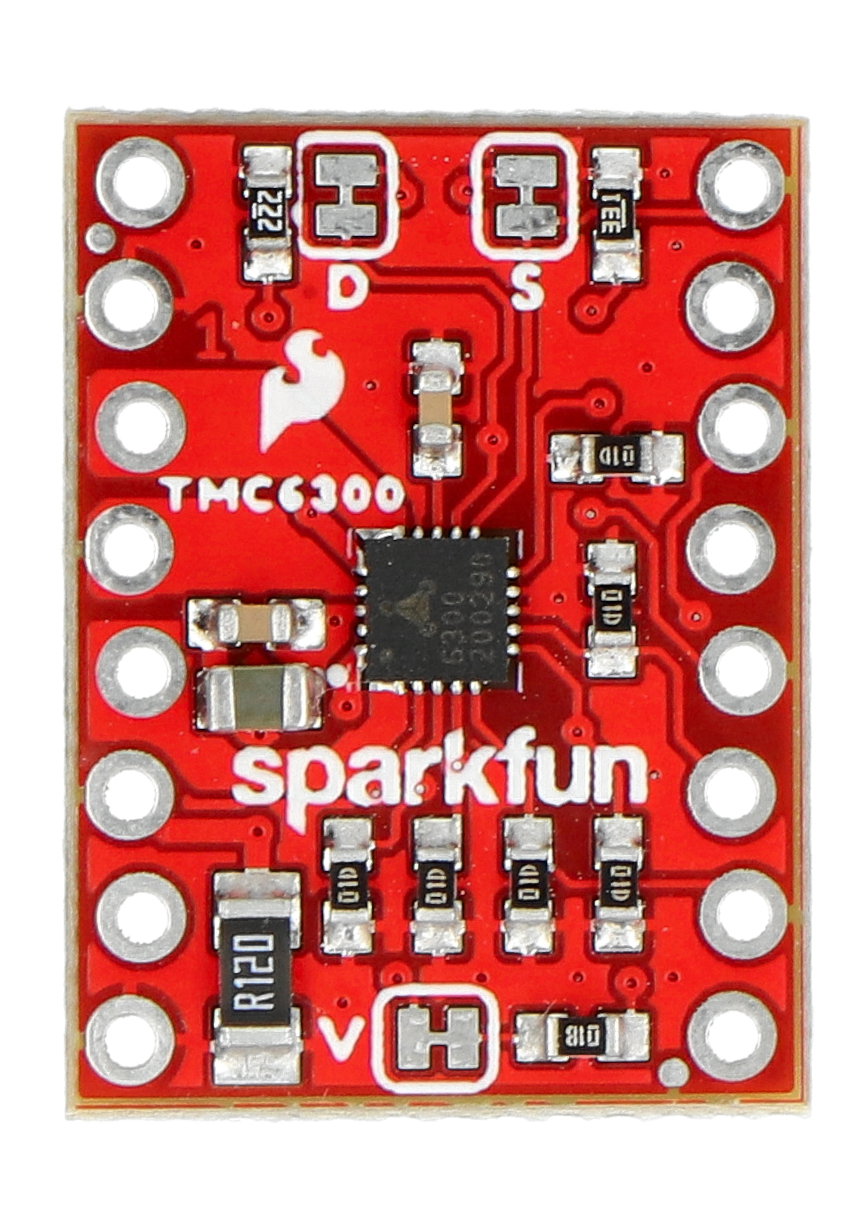

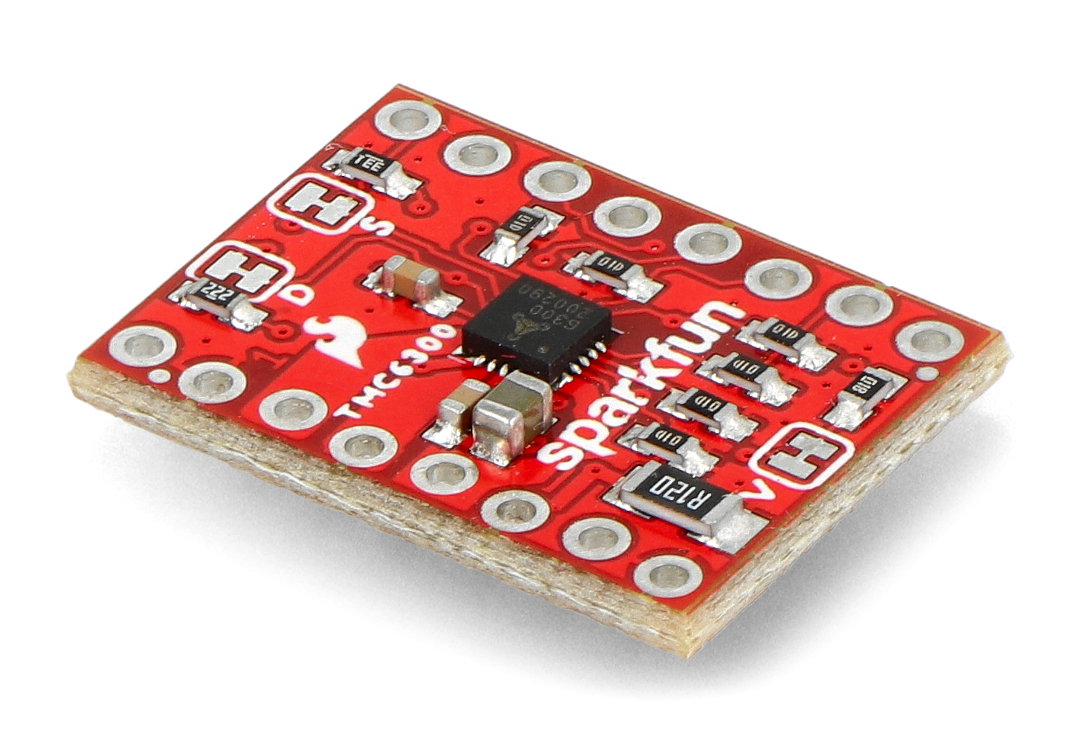

SparkFun Brushless Motor Driver - BLDC motor driver - TMC6300 - SparkFun ROB-21867
BLDC brushless motor driver from SparkFun equipped with the TMC6300 chip from ADI + Trinamic. SparkFun Brushless Motor Driver is an easy to use and extremely effective driver designed for a three-phase motor. The input voltage range is 2 V to 11 V and the maximum current is 2 A (1.4 A RMS).
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: SparkFun Brushless Motor Driver - BLDC motor driver - TMC6300 - SparkFun ROB-21867
BLDC brushless motor driver from SparkFun equipped with the TMC6300 chip from ADI + Trinamic. SparkFun Brushless Motor Driver is an easy to use and extremely effective driver designed for a three-phase motor. The input voltage range is 2 V to 11 V and the maximum current is 2 A (1.4 A RMS). Separate high-side and low-side controls allow precise control of each motor commutation phase. The board is also equipped with thermal protections , which turn off the system when exceeding 150°C, and short-circuit protections .
SparkFun Brushless Motor Driver - BLDC motor driver - TMC6300 - SparkFun ROB-21867.
Botland is an official distributor of modules and accessories from SparkFun Electronics. This well known American maker provides a complete base for electronics projects. Our range holds original SparkFun Electronics products only.
The pins of the board are solder pads to which appropriate connectors should be soldered.

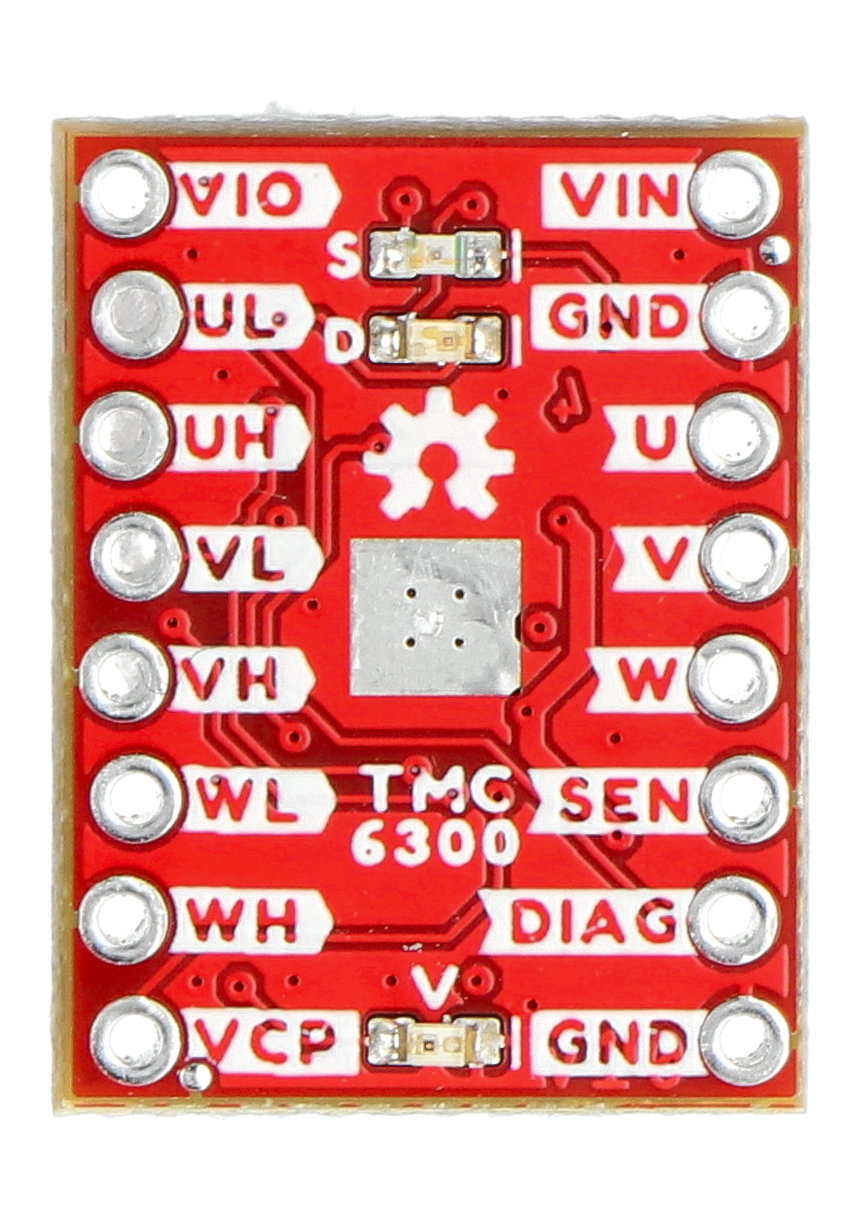

Description of the controller pins
The board has outputs in the form of solder pads. Appropriate connectors should be soldered to them (e.g. goldpin pins, raster 2.54 mm), and connected according to the dependencies below:
- VIN - input voltage pin from 2 V to 11 V
- VI0 - input / output voltage pin from 1.8 V to 5.25 V
- VCP - regulator pin
- GND - system ground
More information about the pins can be found in the user's guide prepared by the manufacturer.
Module technical specification
- Module type: motor controller
- Designed for three-phase brushless BLDC motors and PMSM motors
- Built-in chip: TMC6300
- Input voltage range: 2 V to 11 V DC
- Maximum current consumption: 2A (1.4A RMS)
- Typical standby current consumption: < 50 nA
- RDS factor: LS 170 mΩ and HS 170 mΩ (typ.)
Kit contents
- SparkFun Brushless Motor Driver - BLDC motor driver - TMC6300 - SparkFun ROB-21867 - 1 piece
Components included in the set.
Useful links
| Name | Value |
|---|---|
| Width | 5.5 cm |
| Height | 9.5 cm |
| Depth | 0.5 cm |
| Weight | 0.002 kg |
