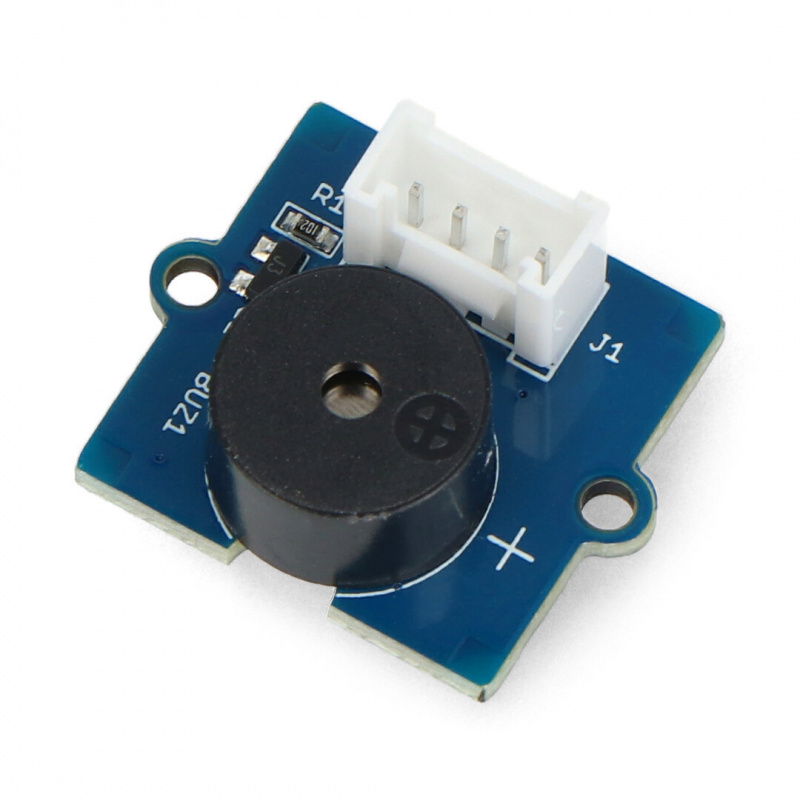

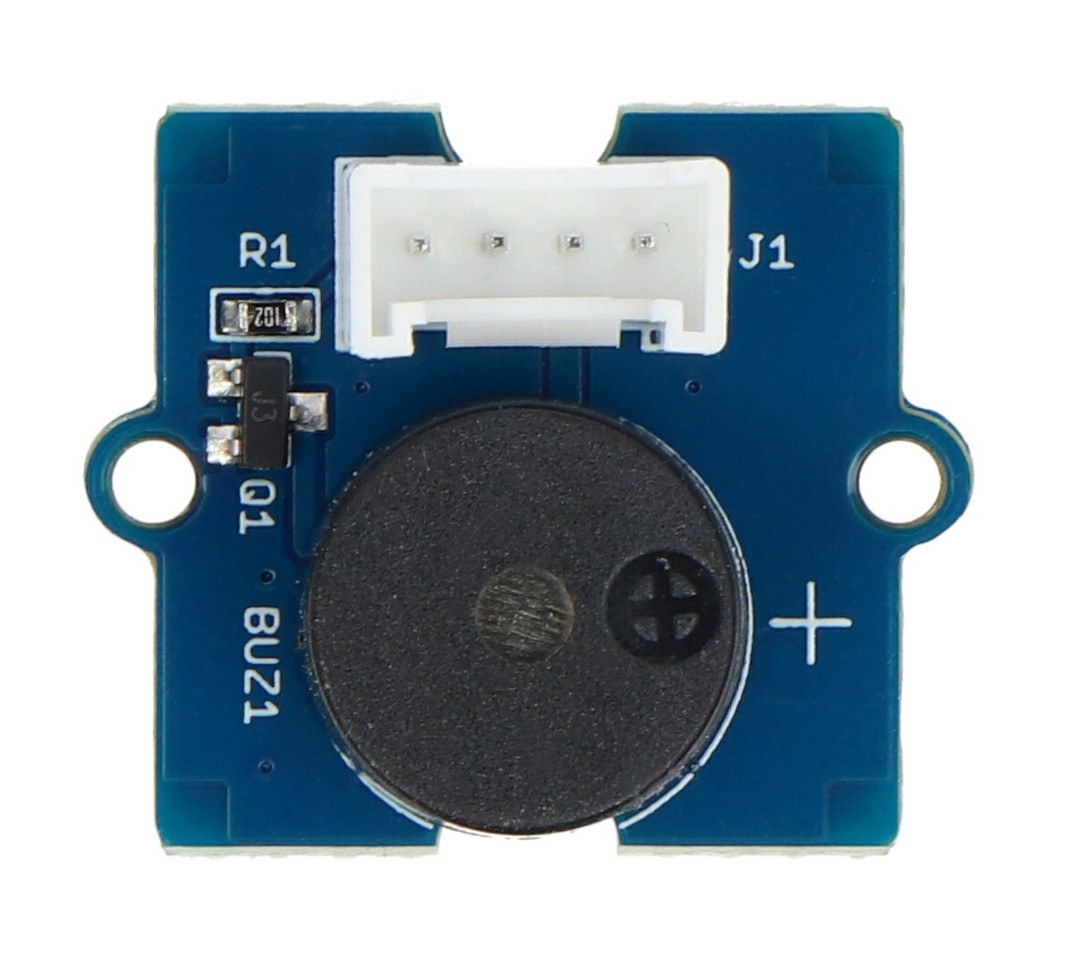

Grove - Buzzer - module with active buzzer
Active buzzer module from Grove. It emits a uniform tone after taking a high position. When using PWM, it can generate different sounds and effects. The power voltage from 3,3 V to 5 V.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description

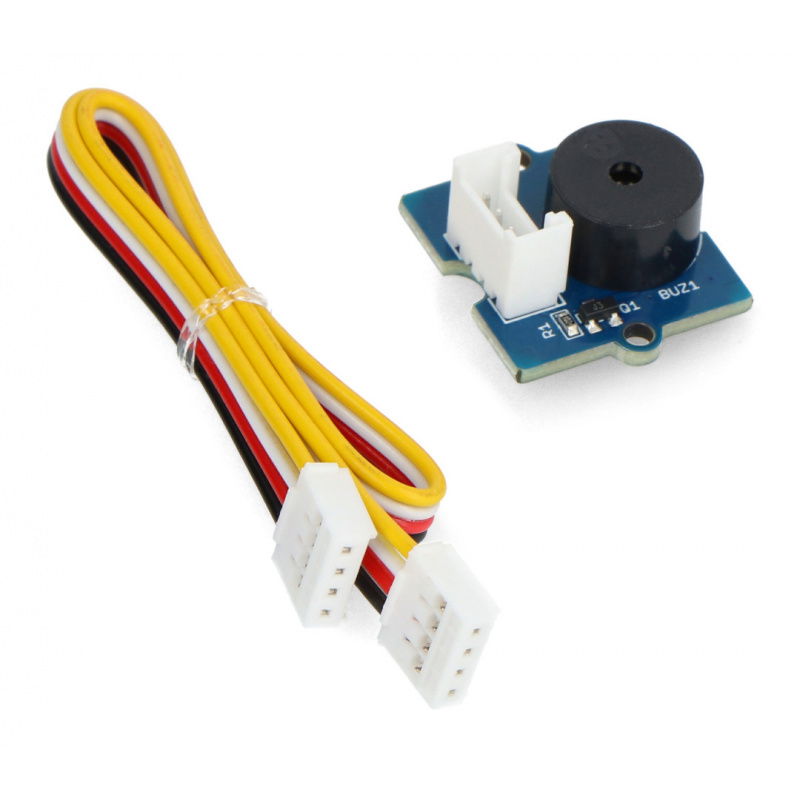

Active buzzer module from Grove. It emits a uniform tone after taking a high position. When using PWM, it can generate different sounds and effects. The power voltage from 3,3 V to 5 V. A suitable cable to connect to Seeedstudio Base Shield v2.0 can be purchased separately.
Botland is an official distributor of electronics and robotics solutions from Seeedstudio. Hundreds of ready to use devices, components and modules are available from stock or to order. Our team guarantees that all Seeedstudio products presented here are original.
Specification
- Power supply: from 3,3 V to 5 V
- Sound output: over 85 dB
- Frequency: 2300 Hz +/- 300 Hz
- Communications: digital signal
- 4-pin Grove interface
- Module dimensions: 20 x 20 mm
The product is compatible with Arduino The manufacturer offers a user manual, and the program for Arduino. |
Connection

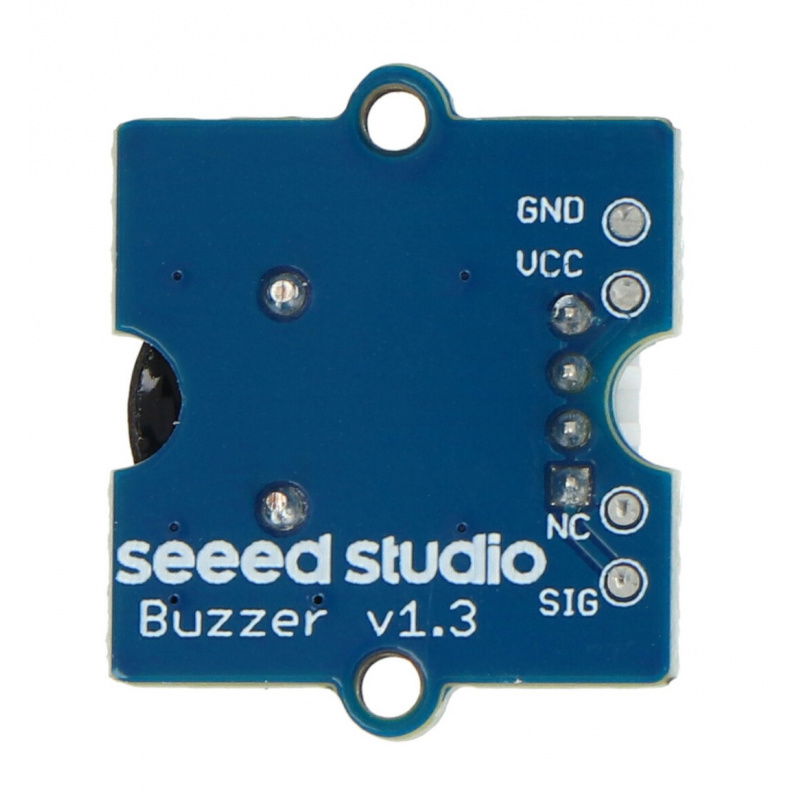

The sensor communicates with the microcontroller through a digital signal. It has the following pins:
| Pin | Description |
|---|---|
| GND | The ground of the system. |
| VCC | The supply voltage of 5 V. |
| NC | Not connected. |
| SIG | Digital signal. |
Grove is a series of modules and sensors that are compatible with Base Shield boards working with Arduino and STM32 Nucleo. |
Useful links
| Name | Value |
|---|---|
| Sensor - type | buzzer |
| Width | 4.5 cm |
| Height | 6.9 cm |
| Depth | 1.1 cm |
| Weight | 0.024 kg |
