Grove - LM2904 sound sensor

Index: SEE-11332 EAN: 5903351246507

Module from the Grove series, based on the system LM2904 and a microphone. It can be powered with a voltage ranging from 3.5 V to 10 V. The output is the analog signal. The sensor can detect the strength of the environment's sound. It has an analog output that makes it compatible with most of the commissioning modules, including Raspberry Pi and Arduino.

Grove - LM2904 sound sensor
€8.50
€6.91 tax excl.
Available
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Seeedstudio
Compatibility: Arduino Raspberry Pi

Description

Module from the Grove series, based on the system LM2904 and a microphone. It can be powered with a voltage ranging from 3.5 V to 10 V. Output is the analog signal. The sensor can detect the strength of the environment's sound. It has an analog output that makes it compatible with most of the commissioning modules, including Raspberry Pi and Arduino.

Attention!

This product is only available in our market in Poland and cannot be sold to other countries.

Connection

The module is equipped with Grove interface that facilitates its connection to the Arduino along with Base Shield v2.0 or Raspberry via Hat of GrovePi+.

Grove-czujnik dźwięku

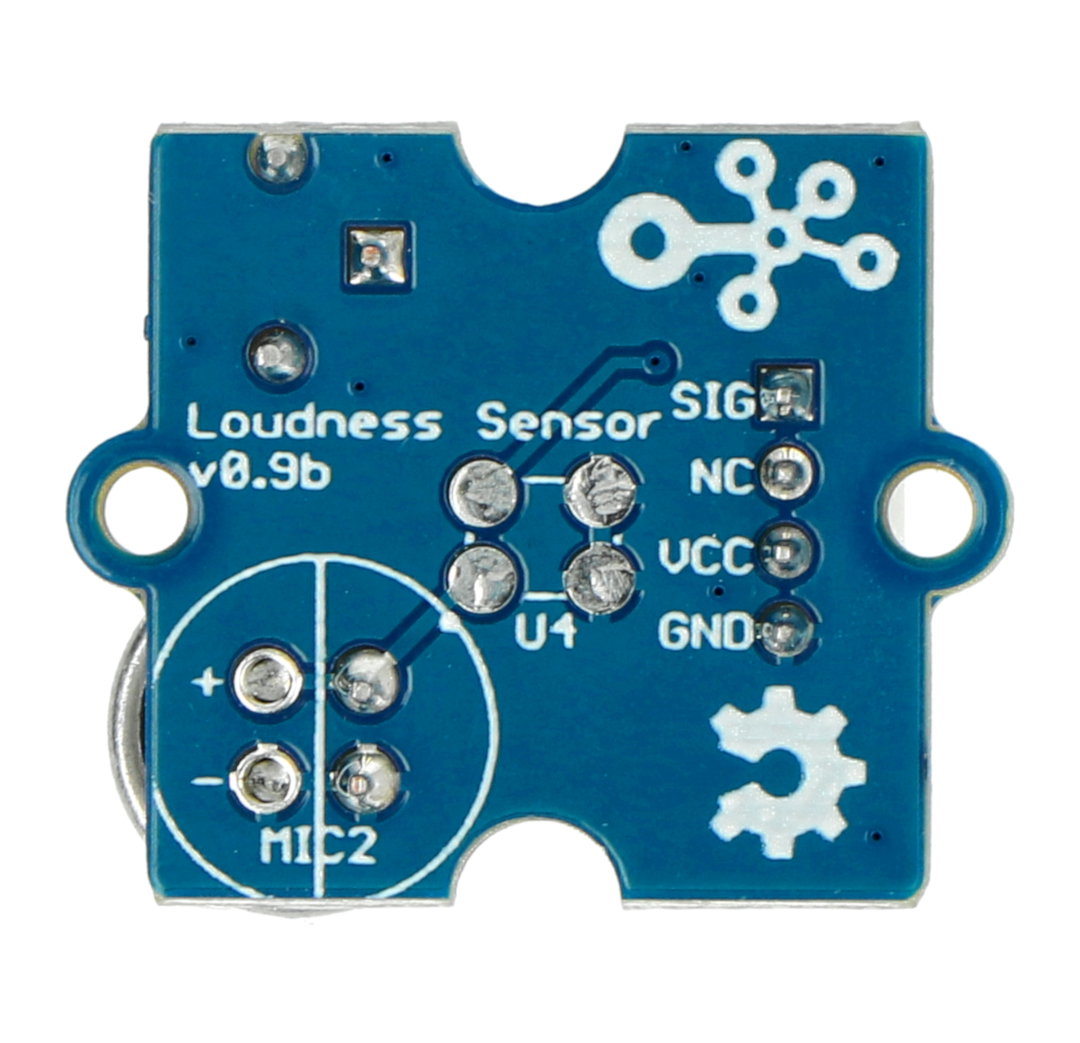

Pin Description
SIG Signal output
NC Not connected
VCC Supply voltage 3.3 V or 10 V.
GND The ground of the system


Specification

  • Supply voltage: from 3.3 V to 10 V
  • Output signal: analog (0 to 1023)
  • Working frequency: 50 to 2000 Hz
  • Sensitivity: -48 dB to 66
  • The ratio of signal to noise: > 58 dB
  • 50 multicolor LEDs
  • Dimensions: 110 x 70 x 11 mm





Sensor - type sound
