Product description: UART To ETH (B) - UART TTL to Ethernet converter - SMD/THT - Waveshare 24276
A small UART TTL to Ethernet interface converter module from the manufacturer Waveshare. It was designed for integration in industrial devices, IoT and many others. The use of the Castellated-Hole technique facilitates the use of the module in projects of limited size, while maintaining the simplicity of implementation. The built-in system supports operating modes such as: TCP server, TCP client, UDP group, UDP and Ethernet, IP, HTTP, ARP, ICMP, PHCP, DNS protocols . The maximum UART transmission speed is 115200 bit/s.
Also check out the user guide prepared by the manufacturer!
UART To ETH (B) - UART TTL to Ethernet converter - SMD/THT - Waveshare 24276.
Designed for integration into industrial equipment.
Main features of the UART TTL to Ethernet converter
- Support for popular protocols - Ethernet, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS.
- Wide application - can be used as a server, Modbus gateway, MQTT, for data acquisition or IoT solutions.
- Simple communication - the UART interface in the TTL standard facilitates communication with the module.
- SMD or THT assembly - the use of Castellated-Hole technology allows for easy installation in a small area.
- High transmission speed - UART up to 115200 bit/s.

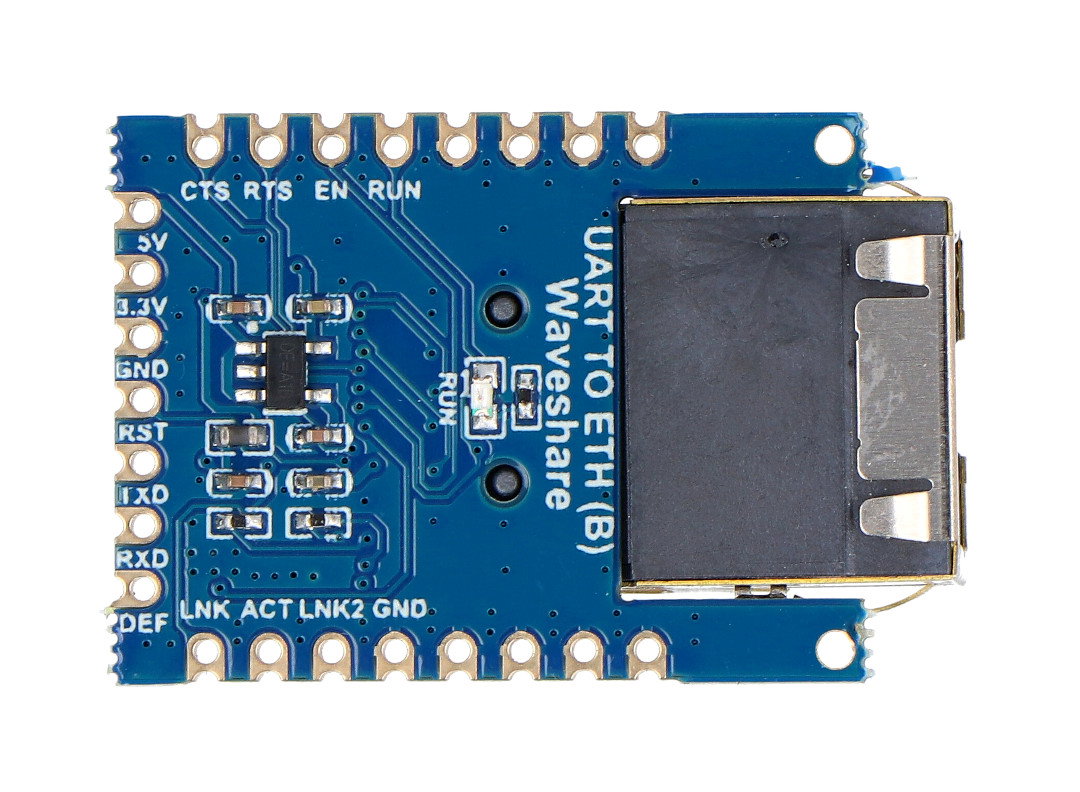

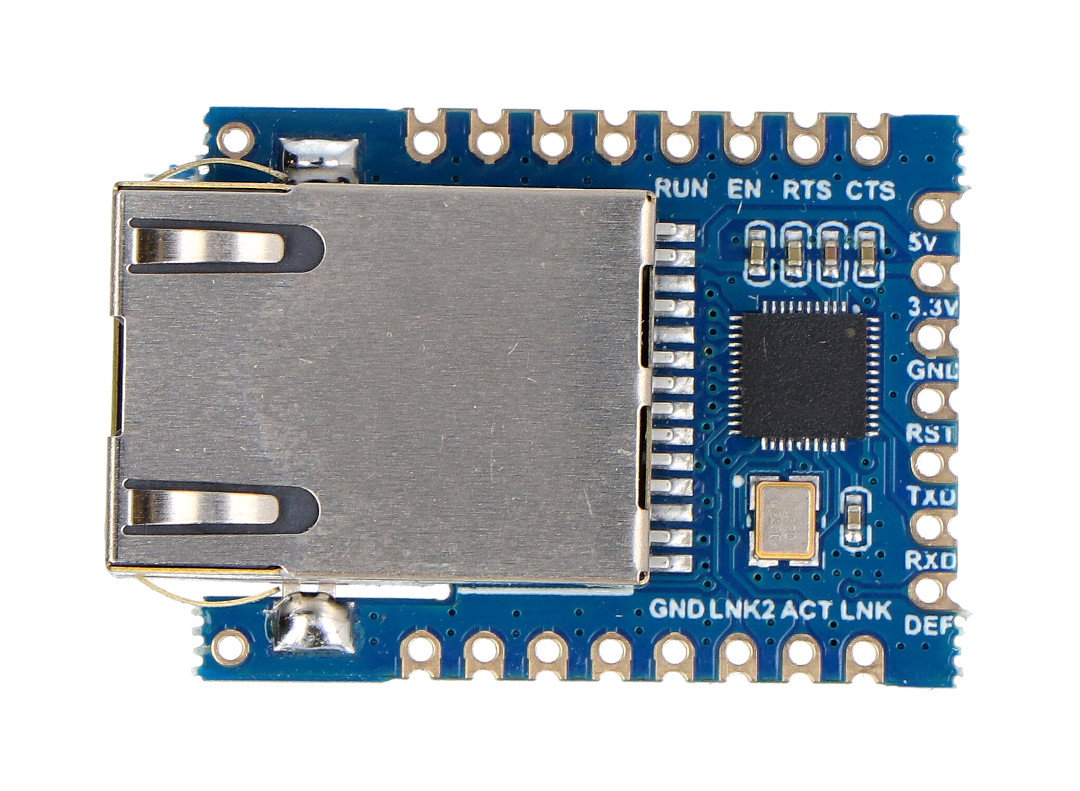

Description of the module pins
- 5 V and 3.3 V - module supply voltages
- GND - system ground
- RST - reset pin
- TXD - UART data transmit pin
- RXD - UART data receiving pin
- RUN - device operating status
- DEF - restoring the default configuration
- CTS - switching on serial transmission
- LINK2 - signaling of the RJ45 cable connection
- LINK - TCP connection status
- ACT - data transfer status
The UART interface in the TTL standard facilitates communication with the module.
Elements included in the set.
Technical specifications of the converter
- Converter type: UART to Ethernet
- UART communication standard: TTL
- Ethernet connector: RJ45
- UART transmission speed: from 300 bit/s to 115200 bit/s
- Number of data bits: from 5 to 9
- Work types: TCP server, TCP client, UDP group, UDP
- Supported protocols: Ethernet, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
- Operating temperature: from -40°C to 85°C
- Mounting: SMD or THT, 2.54 mm pitch
- Dimensions: 34 x 23 x 11.5 mm

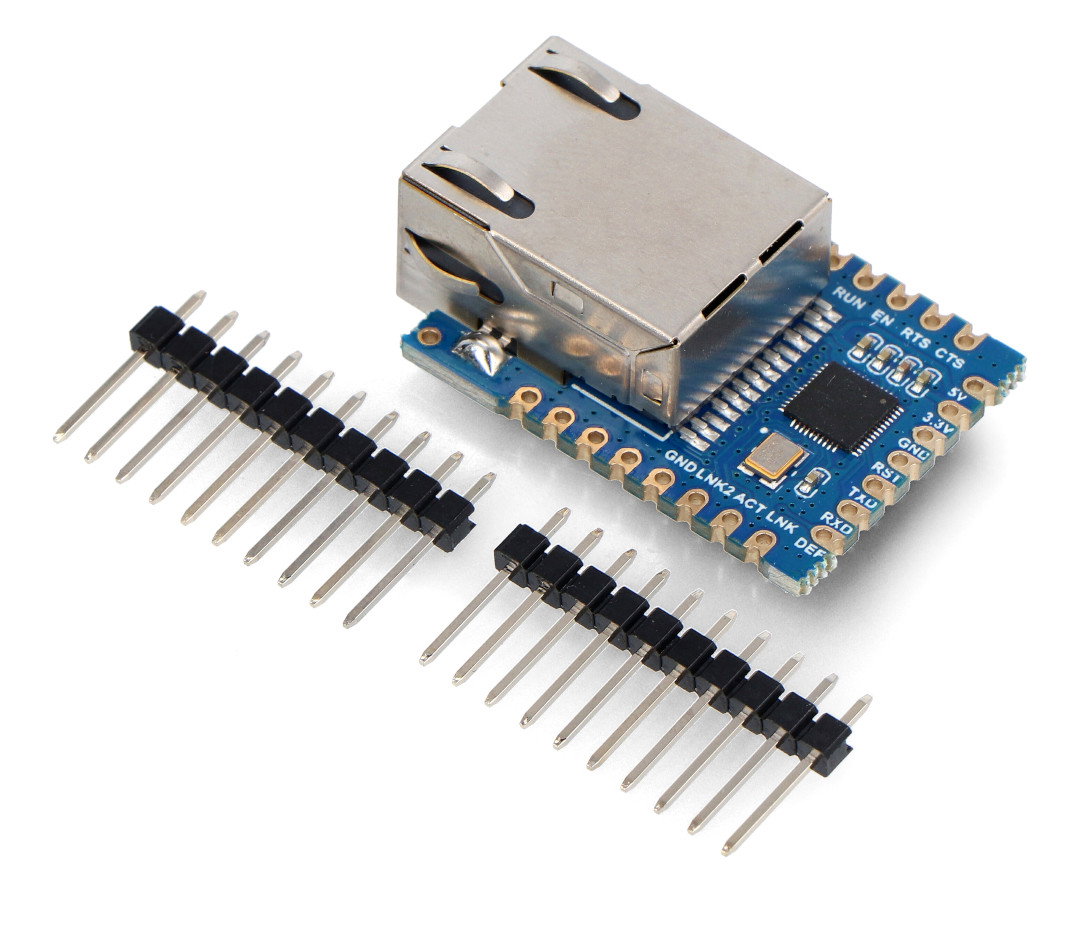

Set contents
- 1 x UART TTL to Ethernet converter - SMD and THT assembly - Waveshare 24276
- 2 x Goldpin male connector, 10-pin, 2.54 mm pitch
