Adafruit ATtiny816 Breakout with seesaw - STEMMA QT / Qwiic

Index: ADA-22893
ATtiny816 Breakout is a module manufactured by Adafruit, which acts as a pin expander. It is designed to be used with boards that use the I2C bus , such as Arduino and Raspberry Pi. It extends the functionality of these boards with an additional 12x GPIO, 9x ADC, 5x PWM, 1x NeoPixel, 1x EEPROM with 127 bytes of NVM memory (the last byte of the EEPROM is used to select the I2C address) and 1x interrupt pin. The module is equipped with the ATtiny816 microcontroller with 8 kB of Flash memory, 512 bytes of RAM and 128 bytes of EEPROM memory.
Adafruit ATtiny816 Breakout with seesaw - STEMMA QT / Qwiic
€7.90 -15%
€6.72
€5.46 tax excl.
Lowest price 30 days: €6.34
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Adafruit
Compatibility: Arduino Raspberry Pi

Product description: ATtiny816 Breakout - extension for Arduino - with connectors - STEMMA QT / Qwiic - Adafruit 5681

ATtiny816 Breakout is a module manufactured by Adafruit that acts as a pin expander . It is designed to be used with boards that use the I2C bus , such as Arduino and Raspberry Pi. It extends the functionality of these boards with an additional 12x GPIO, 9x ADC, 5x PWM, 1x NeoPixel, 1x EEPROM with 127 bytes of NVM memory (the last byte of the EEPROM is used to select the I2C address) and 1x interrupt pin. The module is equipped with the ATtiny816 microcontroller with 8 kB of Flash memory, 512 bytes of RAM and 128 bytes of EEPROM memory.

ATtiny816 Breakout - extension for Arduino - with connectors - STEMMA QT / Qwiic - Adafruit 5681.

Product compatible with Arduino and Raspberry Pi!
Before starting work with the module, also check the user's guide prepared by the manufacturer.

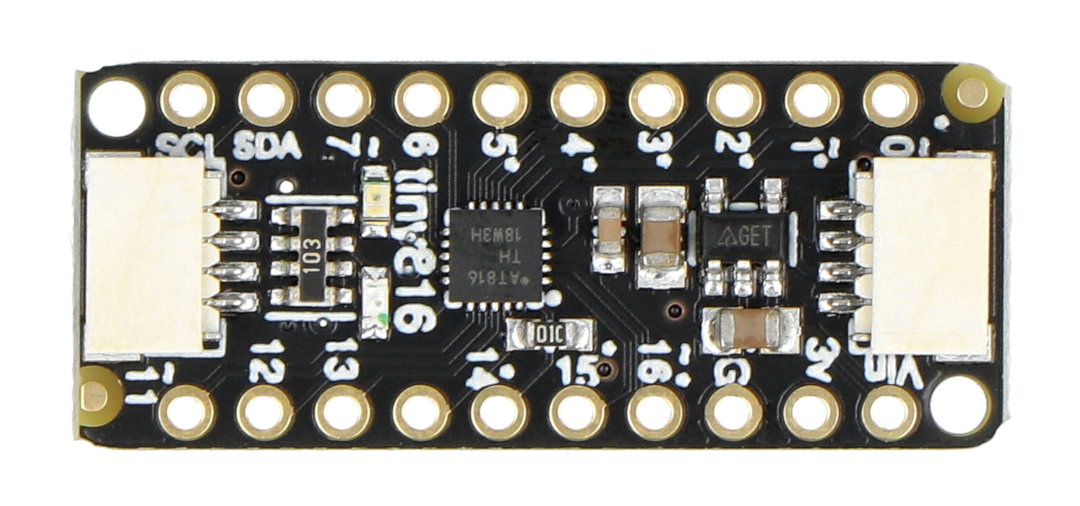

ATtiny816 Breakout.

The interface offered by the board

  • 12x GPIO with selectable pullup resistors: 0-5, 6, 8, 11, 14, 15, 16
  • 9x 10-bit ADC inputs - pins 0, 1, 2, 3, 4, 5, 14, 15, 16
  • 5x 8-bit PWM outputs - pins 0, 1, 7, 11, 16
  • 1x NeoPixel output (up to 60 pixels)
  • 1x EEPROM with 127 bytes of NVM memory - the last byte of the EEPROM is used to select the I2C address
  • 1x interrupt output that can be triggered by any accessories - pin 6
  • 2x I2C address selection pin - pins 12 and 13
  • 1x LED

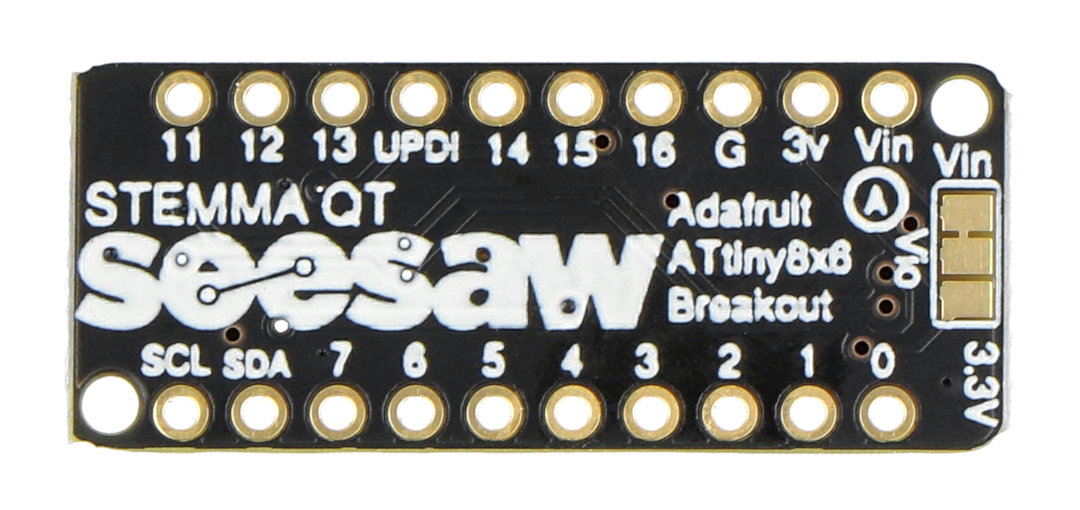

Description of board pins

  • VIN - power pin (from 2 V to 5 V)
  • 3V - power pin (3.3V)
  • GND - system ground
  • SCL - clock pin of the I2C bus
  • SDA - data pin of the I2C bus

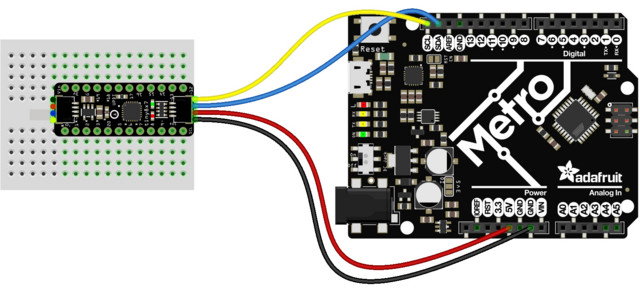

Example connection diagram.

Example connection diagram.

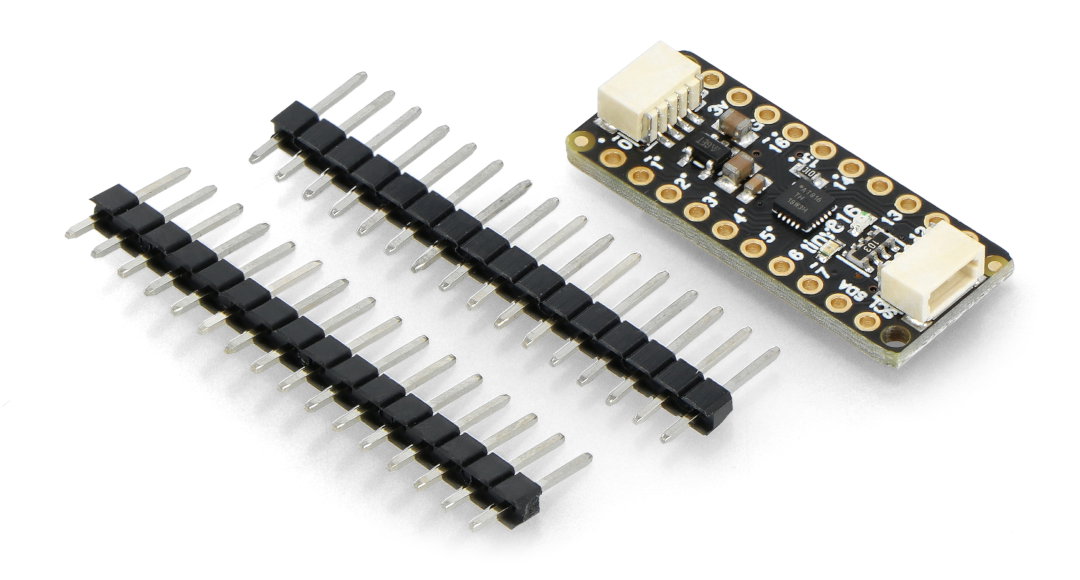

Kit contents.

Kit contents.

Module technical specification

  • Type: lead expander
  • Built-in chip: ATtiny816
  • Flash memory: 8KB
  • RAM: 512 bytes
  • EEPROM: 128 bytes
  • Oscillator: up to 20MHz
  • Built-in 3.3V regulator
  • Leads: solder pads, STEMMA QT / Qwiic

Kit contents

  • ATtiny816 Breakout - extension for Arduino - with connectors - STEMMA QT / Qwiic - Adafruit 5681
  • Goldpin strip - raster 2.54 mm - 2 pieces
Package width 7.5 cm
Package height 11 cm
Package depth 0.5 cm
Package weight 0.005 kg
