Product description: ArduCam IMX219 8Mpx 1/4" - wide angle - for NVIDIA Jetson Nano - ArduCam B0179
Camera module dedicated for use with NVIDIA Jetson Nano minicomputer. Equipped with IMX219 sensor of 8 Mpx resolution with wide angle lens M12 175° (D). The lens used provides a much wider field of view compared to the standard lens in the camera module V2. The product has been equipped with IR filter and MIPI CSI-2 2-track/4-track interface. The camera module can also be used to work with boards Raspberry Pi Compute Module.

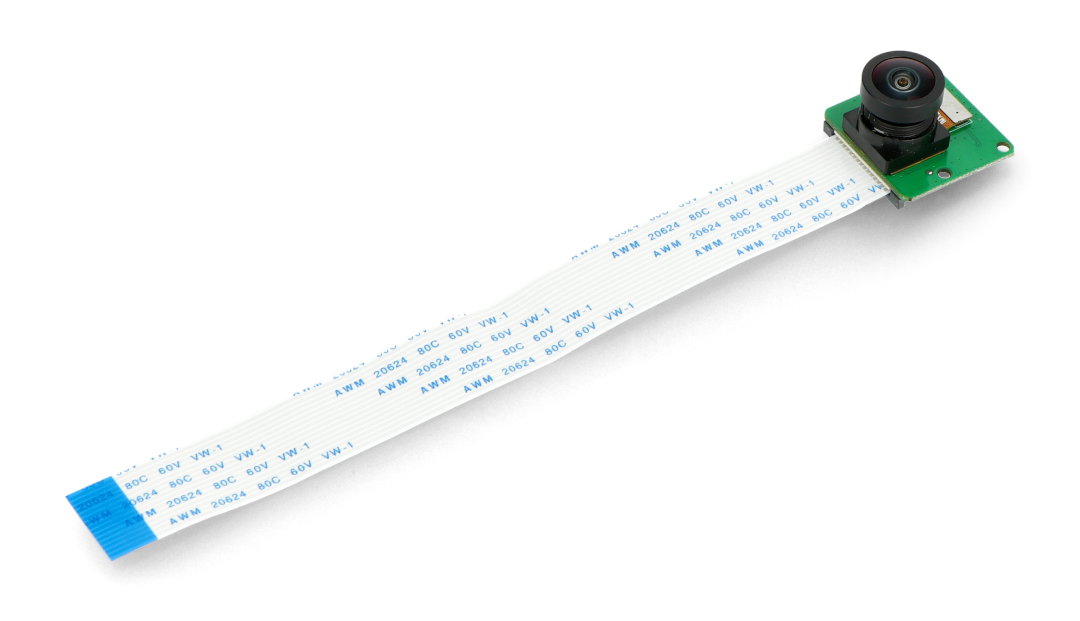

ArduCam IMX219 8Mpx 1/4" camera - wide angle - for NVIDIA Jetson Nano - ArduCam B0179.
Attention!
Camera module is designed mainly for use with NVIDIA Jetson Nano. It can also be used with Raspberry Pi computing module e.g. CM3, CM3+, but is not compatible with standard Raspberry Pi models e.g. 3 / 3B+ / 4.
ArduCam IMX219 8Mpx 1/4" camera - rear view.
Special features of ArduCam camera
- Presented camera module is more than HD quality: it uses 1/4'' 8 megapixels IMX219 sensor ensuring extremely sharp image. Maximum resolution is 3280 x 2464 pixels.
- Much wider angle of view: equipped with a wide angle lens M12 175° (D) x 155° (H) x 115° (V), which provides a much wider field of view compared to the standard lens in the camera module V2
- High frame rate: frame rate is 21 fps at 8 Mpx / 60 fps at 1080p / 180 fps at 720p
- IR sensitivity: visible light, built-in IR filter
Technical specification of the camera module from ArduCam
- Built-in sensor: Sony 8 MP IMX219
- Optical format: 1/4''
- Number of displayed frames per second: 21 fps at 8 Mpx / 60 fps at 1080p / 180 fps at 720p
- Data format: RAW8 / RAW10
- EFL: 2.5mm
- Focal Ratio: 2,8
- Focus type: fixed focus
- Angle of view: M12 175° (D) x 155° (H) x 115° (V)
- Interface: MIPI CSI-2 2-track / 4-track
- IR Sensitivity: Integrated IR filter, visible light
Set contents
- ArduCam IMX219 8Mpx 1/4" camera - wide angle - for NVIDIA Jetson Nano - ArduCam B0179
- FPC tape, 0.5 mm raster - 22-22 pin - 15 cm long
- FPC tape, 0.5-1 mm raster - 22-15 pin - 15 cm long
The camera module is mainly designed for use with the NVIDIA Jetson Nano.
