Pippy - bionic robot dog - Raspberry Pi compatible - Waveshare 19525

Index: WSR-19362 EAN: 5904422346430

Bionic robot from Waveshare in the form of a dog - Pippy. It is equipped with a number of sensors that allow it to perform actions such as monitoring the environment, following lines, avoiding obstacles, self-balancing, motion detection or color detection. Pippy also has a built-in 9-DoF motion sensor. The robot requires a Raspberry Pi to work properly, which is not included in the kit.

Pippy - bionic robot dog - Raspberry Pi compatible - Waveshare 19525
€174.66 tax excl.
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Waveshare
Compatibility: Raspberry Pi

Product description: Pippy - bionic robot dog - Raspberry Pi compatible - Waveshare 19525

A bionicrobotfrom Waveshare in the form of adog- Pippy. Equipped with a number ofsensorsthat allow it to perform actions such asmonitoring the environment,following lines,avoiding obstacles,self-balancing,motion detectionorcolor detection. Pippy also has a built-in9-DoFmotion sensor. The robot requires a Raspberry Pi to work properly, which is not included in the kit.

Bioniczny pies robot o otwartym kodzie źródłowym.

Open source bionic robot dog.

Special features of Pippa

  • Powered by two 2600 mAh 18650 batteries (not included)
  • Built-in APW7313 controller
  • Equipped with a 9-DoF ICM20948 motion sensor responsible for robot movements and enabling self-balancing
  • OLED display for monitoring the battery charge status
  • Equipped with an ultrasonic sensor, which enables it to avoid obstacles, and an OV5647 wide-angle camera, which will prove useful for "line tracking" missions

Assembly Notes

  • Adjust the servos before directly mounting the arm. The adjustment should be done using the software. Manual adjustment may permanently damage the mechanism.
  • It is recommended to use a nylon screw to mount the camera. Using a metal screw may lead to a short circuit that will damage the camera.

Technical specifications of Pippy the Bionic Dog

  • Robot type: bionic dog
  • Control Module: Raspberry Pi (not included, to be purchased separately)
  • Programming language: Python
  • Power supply:18650battery x 2 (battery length should be less than 67mm)
  • Servo:
    • model: MG90S
    • Gear type: metal
  • OV5647 camera:
    • camera resolution: 5 MPx HD
    • viewing angle: wide angle camera 160° FOV
  • Display:
    • diagonal: 0.91'' OLED
    • resolution: 128 x 32 px
  • WiFi communication:
    • AP mode (self-generating hotspot)
    • STA mode (connecting to a router)
  • Safety: protection against overcharging and discharging, overcurrent protection, short circuit protection, reverse polarity protection
  • Element construction material: aluminum alloy
  • Colour: green
  • Dimensions of assembled robot: 191,55 x 108,02 x 165,61 mm

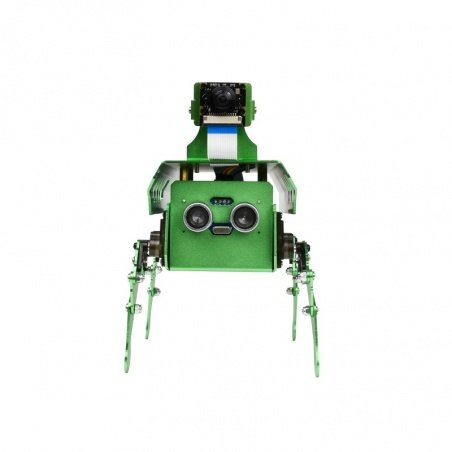

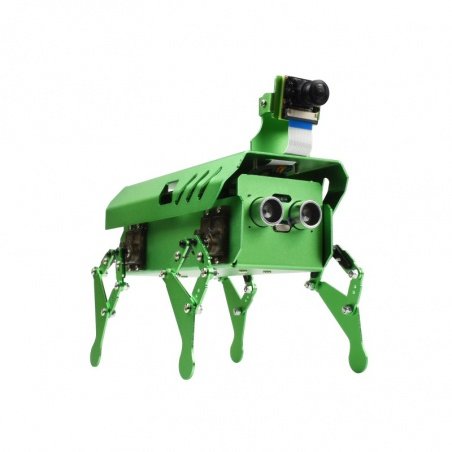

Wyposażony w czujnik ultradźwiękowy, który umożliwia mu omijanie przeszkód.

Equipped with ultrasonic sensor, which enables the robot to avoid obstacles.

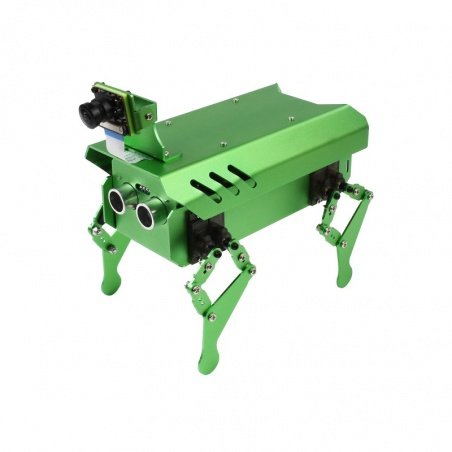

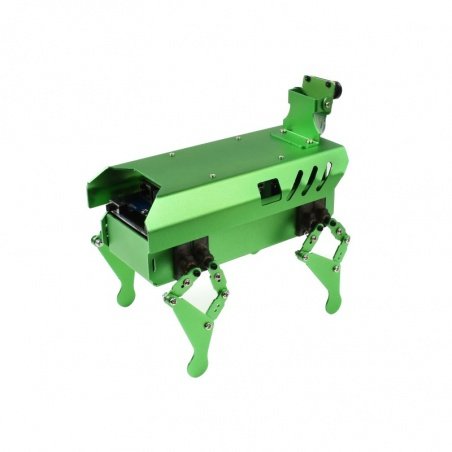

Elementy obudowy wykonane zostały ze stopu aluminium.

Housing elements are made of aluminum alloy.

Set contents

  • Pippy green reconstruction elements - 18 pieces
  • Base Board with battery cage
  • Raspberry Pi camera (G)
  • Acrylic cap for the camera
  • Ultrasonic distance sensor
  • 4-pin connection cable
  • Mini-sleeve cross keyer
  • MicroSD card reader
  • MG90S metal rack and pinion servo - 10 pcs.
  • EU plug for power supply
  • 8.4V AC adapter
  • Screwdriver facilitating assembly - 2 pcs.
  • Set of screws, caps, washers and spacers
