Beetle RP2040 - board with RP2040 microcontroller - DFRobot DFR0959
The small Beetle board created by DFRobot is equipped with a Raspberry Pi RP2040 microcontroller. The RP2040 ARM Cortex M0+ dual-core processor clocked at up to 133 MHz has 264 kB of RAM and supports USB 1.1. The board is equipped with leads in the form of large soldering pads , which have been additionally gold-plated to facilitate soldering of connectors or wires. The compact dimensions of the Beetle board, which are 27 x 20 mm , allow it to be used in small portable devices.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Beetle RP2040 - board with RP2040 microcontroller - DFRobot DFR0959
The small Beetle board created by DFRobot is equipped with the Raspberry Pi RP2040 microcontroller. The RP2040 ARM Cortex M0+ dual-core processor clocked at up to 133 MHz has 264 kB of RAM and supports USB 1.1. The board is equipped with leads in the form of large soldering pads , which have been additionally gold-plated to facilitate soldering of connectors or wires. It has 8 carefully selected GPIO ports, such as I2C, UART, SPI, digital and analog ports. The compact dimensions of the Beetle board, which are 27 x 20 mm , allow it to be used in small portable devices.
Beetle RP2040 - board with RP2040 microcontroller - DFRobot DFR0959.
Botland is an official distributor of DFRobot open-source hardware. Every roboticist and practitioner of emerging technology has heard at least once of DFRobot solutions, built above all around Arduino. Our range holds original DFRobot products only.
Module with RP2040 microcontroller.
Main features of the Beetle RP2040 board
- Based on the RP2040 chip
- 2 MB of flash memory
- Compact dimensions 27 x 20 mm
- Gold-plated soldering pads for easier soldering
- Programmed in C++, MicroPython and Arduino
- 8 GPIO pins, 2x I2C, 2x UART, 1x SPI, 8x digital port, 2x analog port
- Built-in LED
- USB Type-C interface
- Compatible with USB 1.1
Application of the Beetle minicomputer
- Lighting control
- Stage props control
- Desk equipment
- AI data collection and analysis
- Computer USB devices
What is RP2040?
The Raspberry Pi RP2040 microcontroller is a dual-core ARM Cortex M0+ processor operating at a frequency of up to 133 MHz. It includes 264 kB of SRAM, 30 multi-function GPIO pins, plenty of standard peripherals (I2C, SPI, UART, PWM...) and USB support.

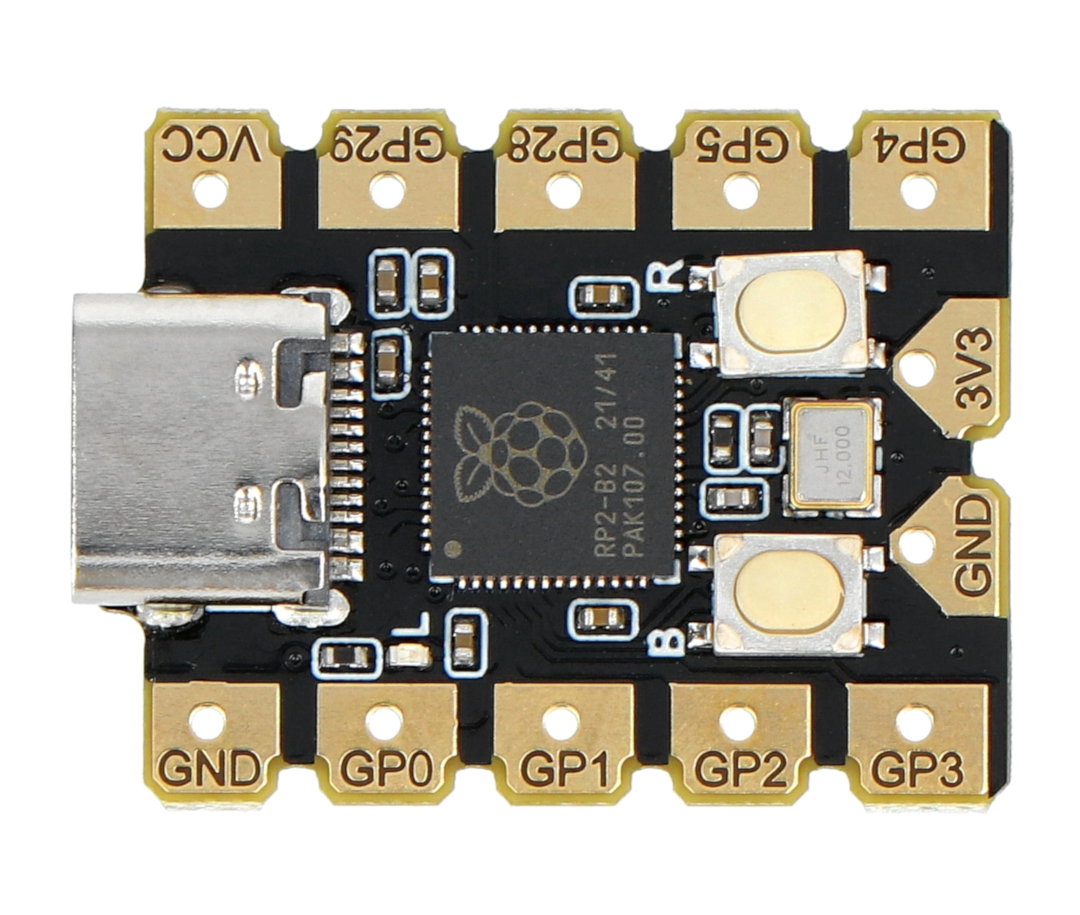

Pins of the Beetle RP2040 board.

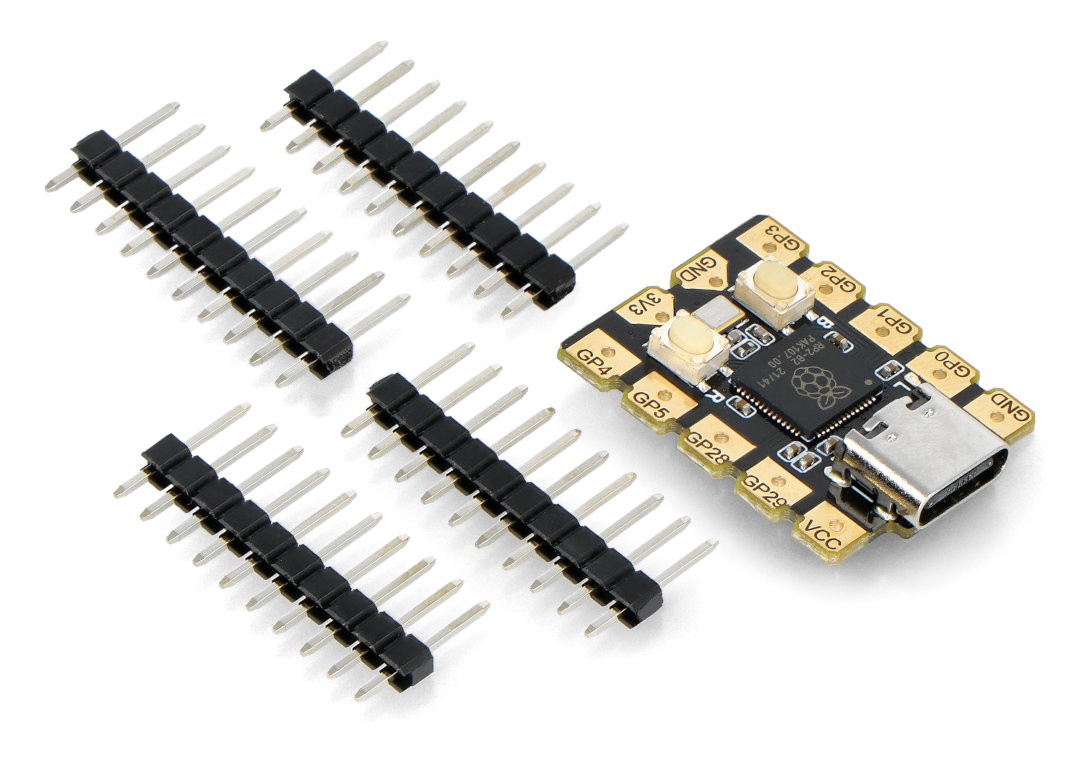

Kit contents.
Beetle RP2040 specification
- Chip: Raspberry Pi RP2040
- Clock: 133MHz
- RAM memory: 264KB
- Flash memory: 2MB
- Power supply: 3.3V to 5V
- Logic voltage: 3.3V
- USB interface: USB Type-C
- Interfaces:
- 8x GPIOs
- 2x I2C
- 2x UARTs
- 8x digital port
- 2x analog port
- 1x Reset button
- 1x boot button
- 1x LED
- Programming: C++, MicroPython, Arduino C, Mind+ graphical programming
- Soldering pad size: 4 x 3.5 mm
- Pin pitch: 2.54 mm
- PCB material: FR-4
- Gold-plated soldering pads
- Solder material: lead free, environmentally friendly
- Dimensions: 27 x 20 x 4.91mm
Kit contents
- Beetle RP2040 - board with RP2040 microcontroller - DFRobot DFR0959
- A set of goldpin connectors
Useful links
| Name | Value |
|---|---|
| UC - Microcontroller | RP2040 |
| UC - Core | ARM Cortex-M0+ |
| UC - Flash | 2048 kB |
| UC - core | 2. Dual Core |
| UC - freq | 133 MHz |
| UC - USB | USB C |
| UC - I2C | yes |
| UC - UART | yes |
| UC - SPI interface | yes |
| Width | 5.7 cm |
| Height | 6 cm |
| Depth | 2.5 cm |
| Weight | 0.01 kg |
