Product description: Digital ambient light sensor - VEML7700 - I2C - angular - STEMMA QT / Qwiic - Adafruit 5378
Digital ambient light sensor from Adafruit . It was based on the VEML7700 chip, which allows it to measure in the range from 0 lux to 120 klux . Unlike standard sensors, it detects light entering parallel to the surface of the circuit board. It has a STEMMA QT / Qwiic connector and solder pads - an alternative connection method.
The product is compatible with Arduino and Raspberry Pi
The manufacturer provides a detailed user guide . You will find, among others, a description of individual outputs, sample program codes and free libraries.

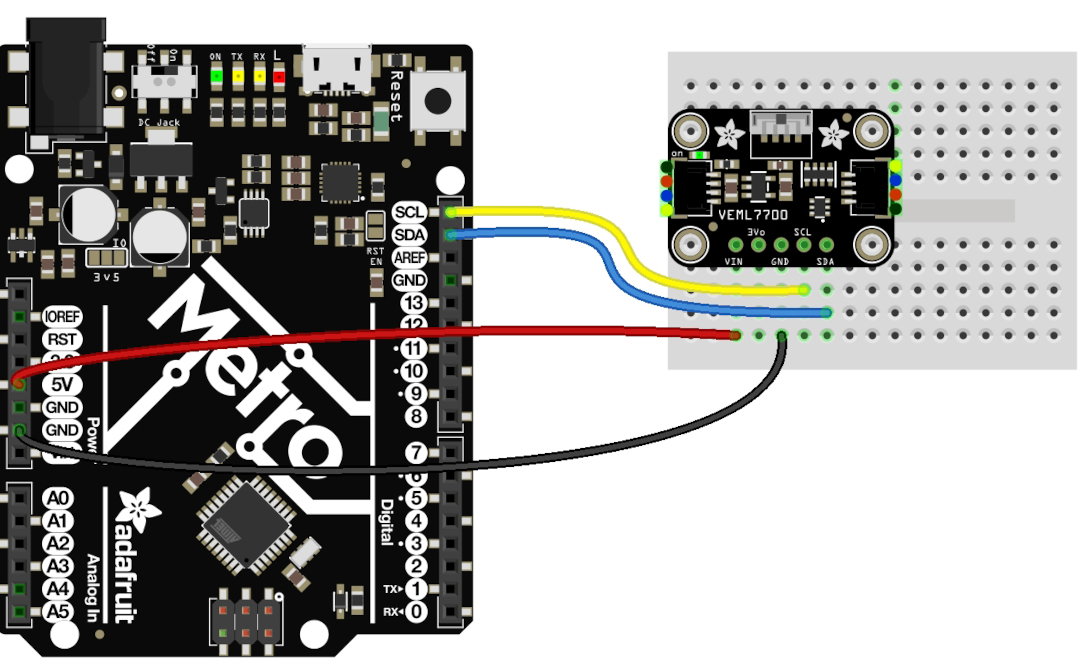

An example of connecting the module with the Metro board. The contact plate and the Metro plate are not part of the set - they can be purchased separately.

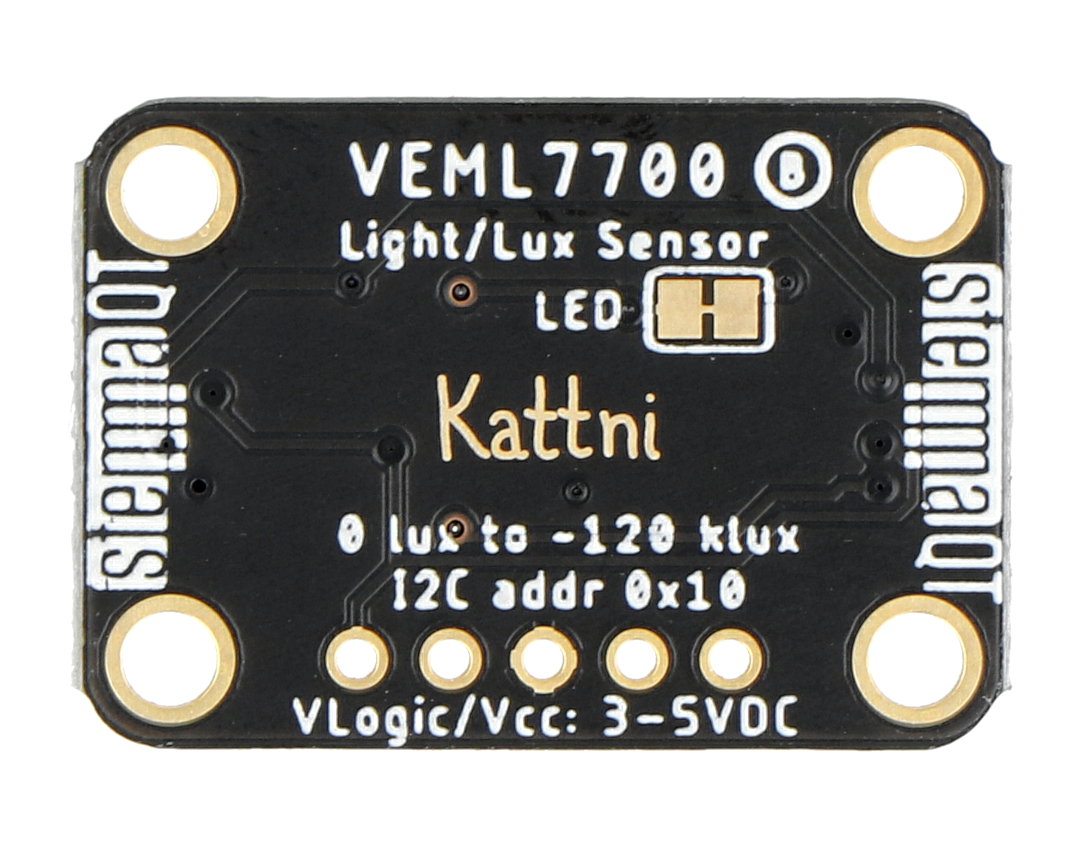

Description of the pins of the board
The board has two connection options - using standard solder pads to which the goldpin strips included in the kit should be soldered, or using STEMMA QT / Qwiic connectors, which do not require soldering.
- VIN - supply voltage from 2.7 V to 5.5 V
- GND - the ground of the system
- SDA - data line of the I2C bus
- SCL - clock line of the I2C bus
- VOUT - analog output.
Kit contents
- Digital ambient light sensor - VEML7700 - I2C - angular - STEMMA QT / Qwiic - Adafruit 5378 - 1 piece
- 1x5 goldpin strip - 2.54 mm raster - 1 pc
Technical specification of the sensor
- Type: Ambient Light Sensor
- Built-in chip: VEML7700
- Type: digital
- Measurement angle: detects light entering parallel to the plate's surface
- Supply voltage: 3 V to 5 V
- Measurement range: 0 lux to 120 klx
- Resolution: 12-bit
- Communication interface: I2C bus
- Interface address: 0x10
- Gain and Integration Time: Software Adjustable
- Supported development environments: Arduino (C / C ++) and CircuitPython (Python 3)
- Connectors: STEMMA QT / Qwiic, solder pads
- Operating temperature range: -25 ° C to 85 ° C
- Tile sizes: 25.5 x 17.7 x 4.6 mm
- Weight: 1.9 g
The detection range is from 0 lux to 120 klux.
