Description

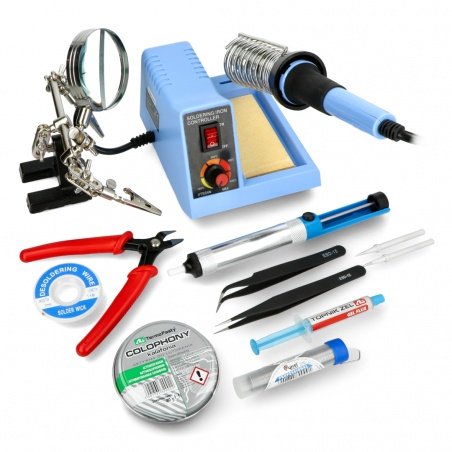

Kit for soldering electronic components.Includes soldering stationandholder with magnifier, tin with calaphony, two pairs of tweezers (straight and curved) for holding soldered element andthe extractor and two replacable tips.
0%
| No. | Photo | Description |
|---|---|---|
| 1 |  |
ZD99 soldering iron station - 48W- Grotto soldering station with flask. Has the ability to adjust the temperature in the range from 150 °C to 450 °C. The total power is 48 W. |
| 2 |  |

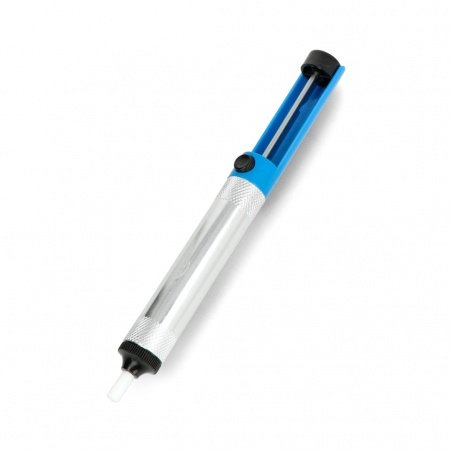

The extractor - device to remove the excess of tin. Has a metal body with a diameter of 20 mm,the lengthof the device is 190 mm. |
| 3 |  |
Holder with magnifying glass - third hand ZD10D- mounting handle with a magnifying glass that magnifies about 2.0 diopters, and two clamps to facilitate soldering. |
| 4 |  |

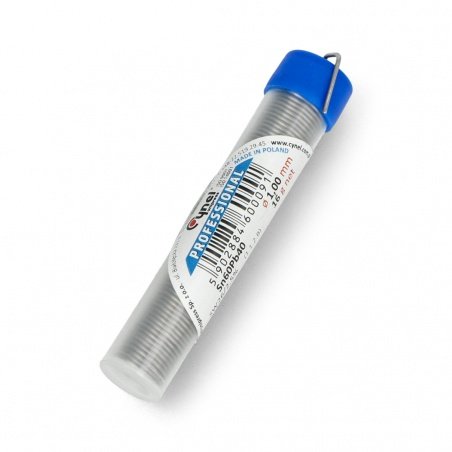

Tin in vial 16g / 1.00 mm-Tin in the vial with a diameter of 1.00 mm and a weight of 16 grams. |
| 5 |  |
Calaphony 40 g- flux with the addition of activators to facilitate soldering. |
| 6 |  |

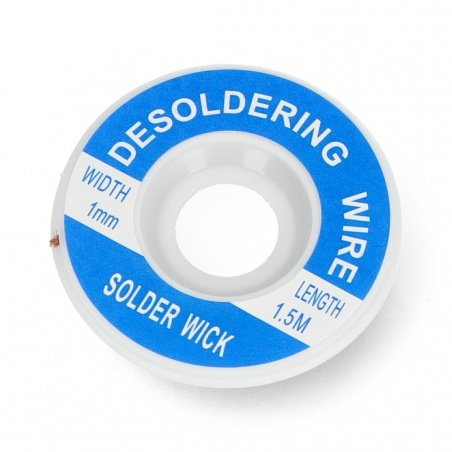

Braid- to remove excess of the tin. |
| 7 |  |

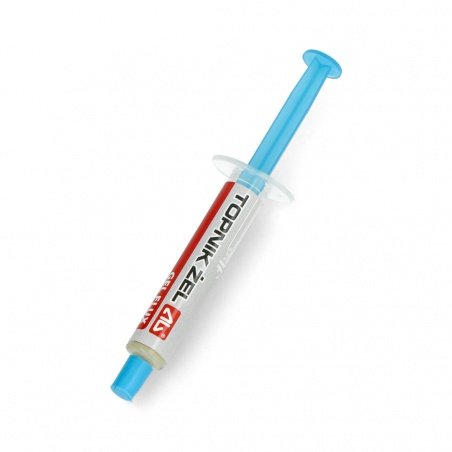

Flux in gel 5 cm3- used interchangeably to calaphony, helps soldering. |
| 8 |  |

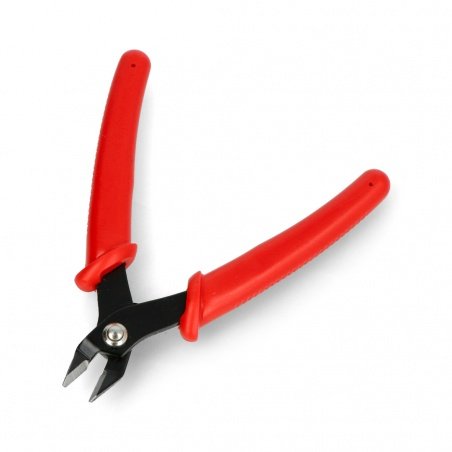

Side cutters - allow trimming the protruding legs of the elements after their soldering. Color and shape may vary from the settings shown in the picture but the functionality remains. |
| 9 |  |
Tip for soldering station type 79-3121- works with i.a. stations: ZD99, ZD8906, etc. |
| 10 |  |
Tip for solder station type 79-3111- works with i.a. stations: ZD99, ZD8906, etc. |
| 11 |  |

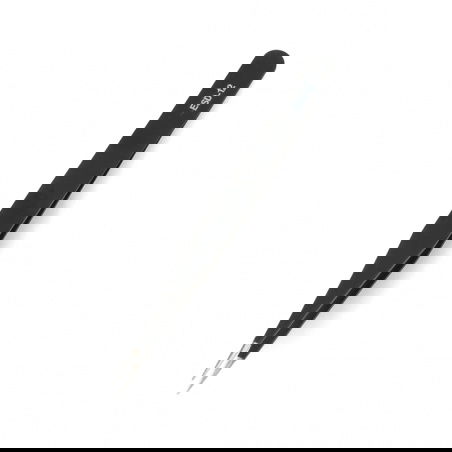

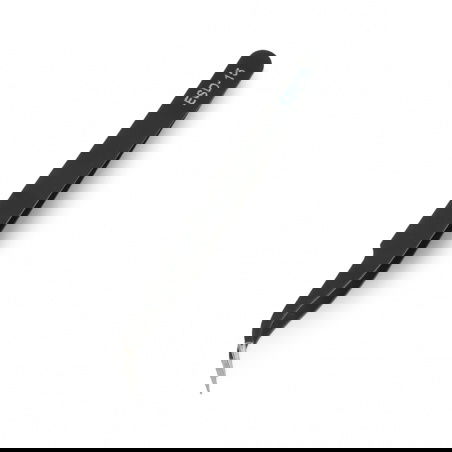

The non-magnetic curved tweezers VetusESD15 - 116mm-non-magnetic tweezers of stainless steel. Symbol: Vetus HRC40 ESD15. Length: 116 mm. |
| 12 |  |

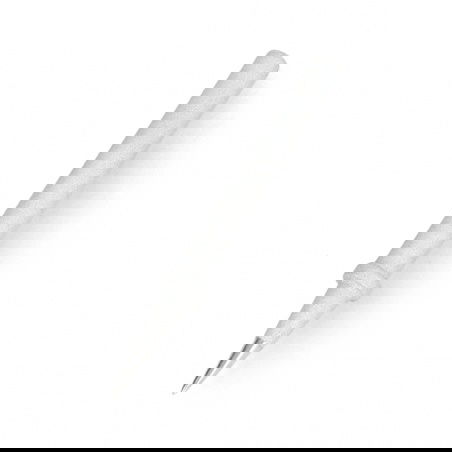

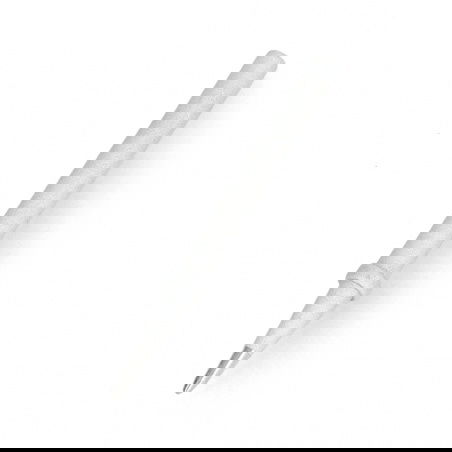

The non-magnetic straight tweezers Vetus ESD12 - 135mm-non-magnetic tweezers of stainless steel. Symbol: Vetus HRC40 ESD-12. Length: 135 mm |
Technical characteristics of the station ZD99
- Power Supply: 230 V / 50 Hz
- Power consumption: 48 W
- Temperature range: from 150 °C to 450 °C
- Dimensions: 115 x 145 x 90 mm (198 mm with handle)
|
