Product description: Set of 45 connectors and power cords
A service set of power plugs that are most commonly found in electronics. It consists of28 pieces of different power plugs, one part of which is a plug and the other part is a 5.5 mm DC Jack socket. All plugs have identical DC Jack socket, so you can use them with the100 cm long power cordincluded in the set. The power cord can be connected to all kinds of measurement and laboratory equipment, e.g. power supply unit. The set also includestwo 4 mm banana plugs, two crocodile plugs, banana - crocodile cable, 10 pieces of different colored cables with a length of 50 cmand ending on both sides of the frog. The set of connectors and cables will be useful during service repairs, especially if you want to power laptops and other devices from the laboratory power supply.

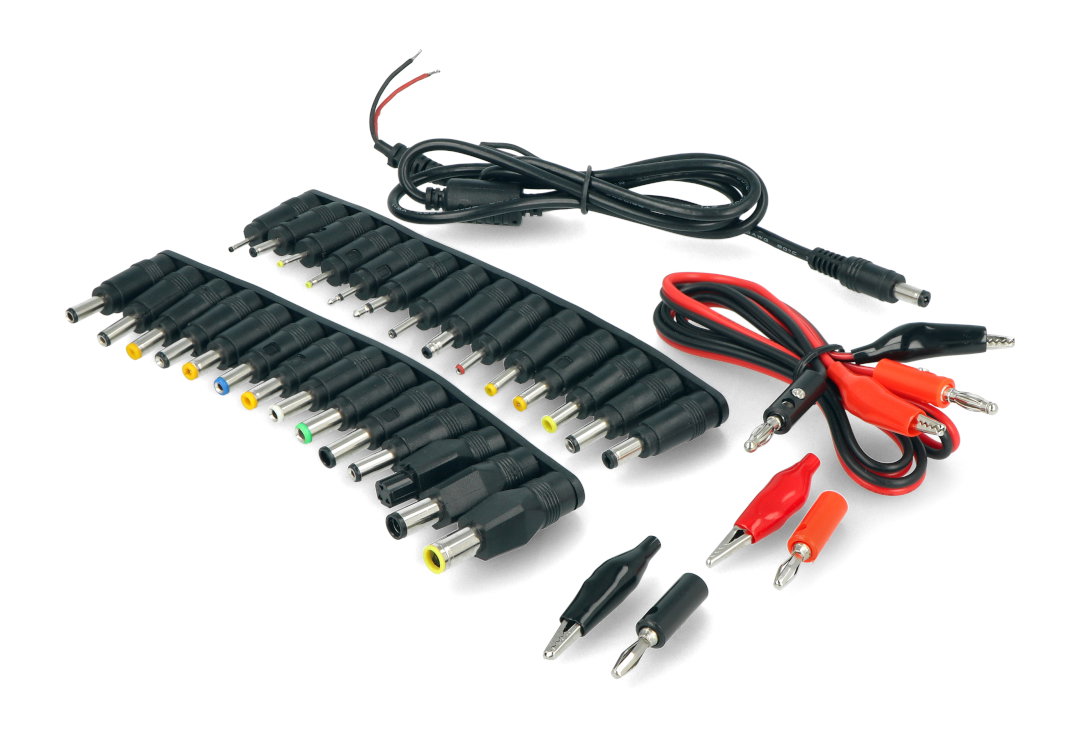

A set of 45 connectors and power cords.
The set consists of 45 parts.
Contents of the set
- Plugs with sockets: set of 28 power supply plugs with DC 2,1/5,5 mm sockets:
- 7.9 mm x 1.0 mm plug
- 7.4 mm x 1.0 mm plug
- Dell 3P connector
- 5.0 mm x 2.1 mm connector
- 6.0 mm x 1.4 mm connector
- 6.0 mm x 3.3 mm connector
- 5.5 mm x 2.5 mm plug
- 5.5 mm x 2.5 mm plug
- 5.5 mm x 2.1 mm plug
- connector 5.5 mm x 2.1 mm
- 5.5 mm x 1.5 mm plug
- 5.5 mm x 1.7 mm plug
- 5.0 mm x 2.1 mm plug
- 5.0 mm x 2.5 mm plug
- 5.0 mm x 2.5 mm plug
- connector 6.0 mm x 3.0 mm
- 5.0 mm x 1.0 mm plug
- connector 4.8 mm x 1.7 mm
- connector 4.0 mm x 1.7 mm
- 3.5 mm x 1.35 mm plug
- connector 4.8 mm x 1.7 mm
- 3.0 mm x 1.0 mm plug
- 3.5 mm jack mono plug
- 2.5 mm jack mono plug
- 2.5 mm x 0.7 mm plug
- 2.35 mm x 0.7 mm plug
- 4.0 mm x 1.35 mm plug
- 2.0 mm x 0.6 mm plug
- Banana4 mm crocodile cable, 100 cm long. Banana plug 4 mm - crocodile (colour: black + red).
- Crocodile4 mm banana cable, 100 cm long. DC Jack 5.5 mm / 2.1 mm stripped wires (colour: black + red). There is a filter (choke) on the cable.

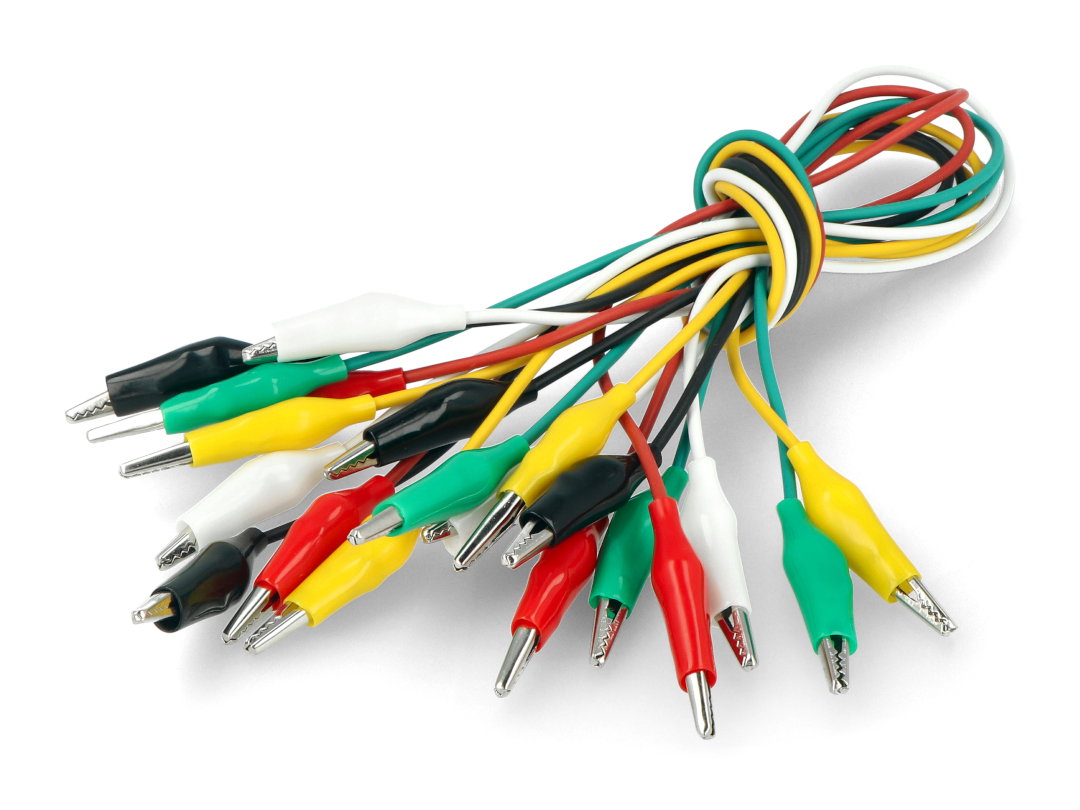

- Banana 4 mm crocodile cable, single-core, 50 cm long. Terminated on both sides by crocodiles with isolation. A total of 10 wires, 50 cm long, 2 of each color: black, white, red, green, yellow.
- Banana4 mm crocodile cable, standard 4 mm laboratory plug for screwing the cable(colour: black + red).
- Banana cable 4 mmcrocodile in insulation(colour: black + red).
