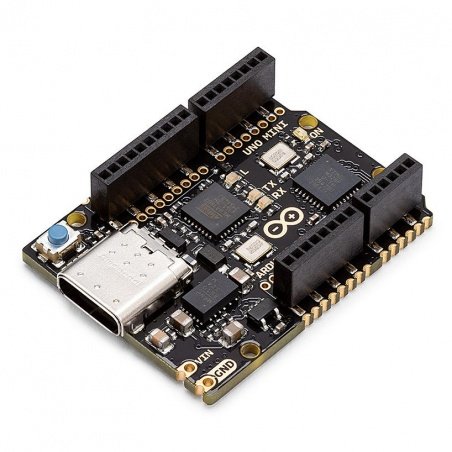

Arduino UNO Mini Limited Edition - ABX00062

Index: ARD-20654 EAN: 7630049203228
Limited collector 'sedition of popular Arduino UNO board. It's a miniaturized, but fully functional version of well known Arduino UNO. The board was made in black with gold additions, with elegant design and packaging. Each produced board has its own PCB number and includes hand signed letter from Arduino founders. The miniature version of the Arduino Uno was created to celebrate the Arduino community and the many years of work by the entire team.
€49.50
€40.24 tax excl.

Available
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Arduino

Product description: Arduino UNO Mini Limited Edition - ABX00062

A limited collector 's edition of popular Arduino UNO board. It is a miniaturized but fully functional version of the well known Arduino UNO. The Arduino UNO Mini LE board is made in black with gold and comes in an elegant design and packaging. Each manufactured board has its own PCB number and includes a hand signed letter from the Arduino founders. The miniature version of the Arduino Uno was created to celebrate the Arduino community and the many years of work by the entire team.

Offer valid while supplies last, product will no longer be available!

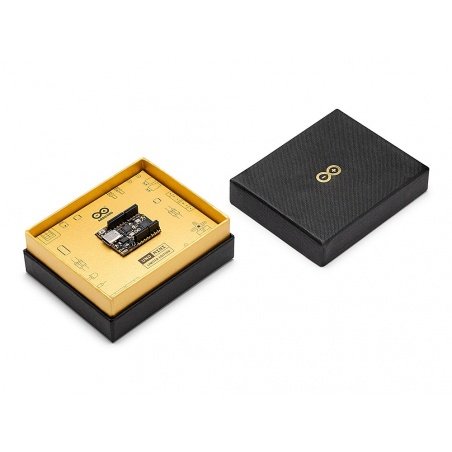

Arduino UNO Mini Limieted EditionArduino UNO Mini - collector's edition.

Main features of Arduino UNO Mini LE

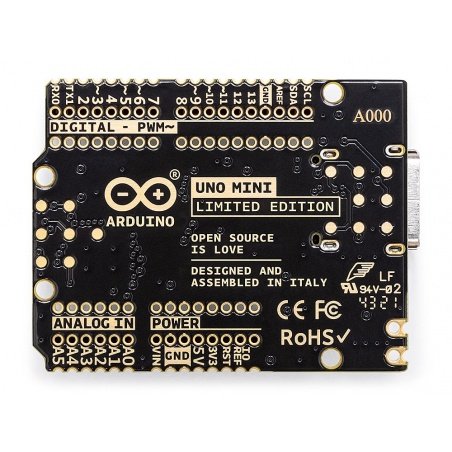

Arduino UNO Mini Limited Edition is a miniaturized version of the popular Arduino UNO board. The module is based on the chip ATmega328PIt is equipped with USB type C connector for programming and board power supply, as well as available pins for connecting external power source. The board has preinstalled female pins, built-in LED, reset button and all other elements known from standard UNO board, but placed on only 25% of board's dimensions.

  • ATmega328P - classic, efficient microcontroller with low power consumption.

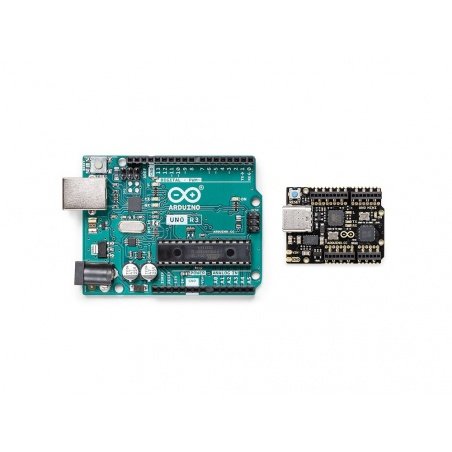

  • Small size - Arduino UNO LE (Limited Edition) is 25% size of standard Arduino UNO board.
  • Pin Raster - The pin spacing is 0.05" or 1.27 mm. This is half the distance compared to the classic UNO board (0.1" or 2.54 mm).
  • EEPROM - the ATmega328P is equipped with 1 kb of EEPROM memory, which is not erased when power is removed.
Arduino UNO Mini Limited Edition Specification
Microcontroller ATmega328P
Connector USB type C
Embedded LED pin 13
Number of digital I/Os 14
Number of analog inputs 6
PWM pins 6
UART yes
I2C yes
SPI yes
Logic voltage 5 V
Input voltage 6 V to 21 V
Battery connector none
Current capacity / I/O pin 20 mA
Current capacity 3.3 V pins 50 mA
ATmega328P clocking 16 MHz
ATmega16U2 clocking 16 MHz
Memory: ATmega328P

SRAM: 2 kB
Flash: 32 kB
EEPROM: 1 kB

Dimensions 34.2 x 26.7 mm
Weight 8,05 g

Voltage to 6.0 V
Voltage from 21.0 V
Voltage output from 5.0 V
Output voltage to 5.0 V
UC - Microcontroller ATmega328P
UC - Core 8-bit AVR
UC - EEPROM 1 kB
UC - Flash 32 kB
UC - RAM 2 kB
UC - core 1. Single Core
UC - Digital pins 14
UC - analog in 6
UC - freq 16 MHz
UC - A/C 10-bit
UC - PWM 6
UC - USB USB C
UC - I2C yes
UC - UART yes
UC - SPI interface yes
