Product description: WiFi module ESP-07S ESP8266 - 9 GPIO, ADC, U.FL socket
ESP-07S module based on ESP8266 chipcommunicatesin802.11 b/g/nWi-Fi standard at 2.4 GHz. This is an improved version of theESP-07 module, compared to its predecessor, the S version increased the amount of Flash memory to 4 MB, removed thebuilt-in ceramic antenna and redesignedthe tile, which gave the module greater stability. The module is equipped with 16 outputs of which 9 are general purpose GPIO pins, 1 isADC andUART bus.
|
Compared to the previous ESP-07 version, the ESP-07S has increased the flash memory to 4 MB, removed the built-in ceramic antenna and redesigned the board, giving the module greater stability. |
Features of ESP-07S ESP8266 WiFi module
- It has 16 outlets
- 9 x GPIO - digital input/output pins
- 1 x ADC - analogue-to-digital converter
- 2 x UART (TX, RX) - for communication with e.g. Arduino
- Installation: SMD
- The conjecture of communication speed: 115200 bps
- Equipped with a connector to connect an external U.FL antenna

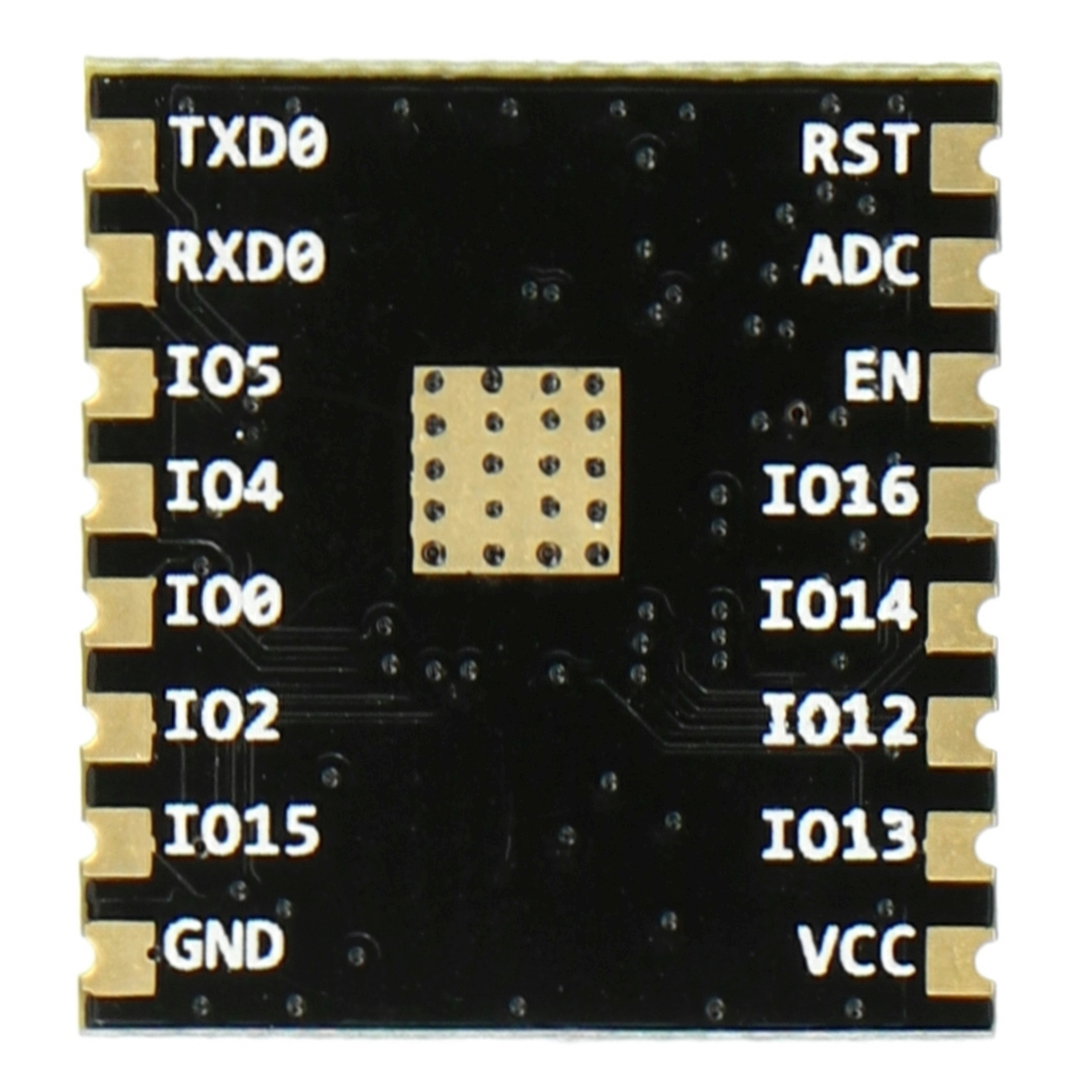

WiFi module outputs ESP-07S ESP8266 - 9 GPIO, ADC, U.FL socket
| Pin | Description |
|---|---|
| TxD | UART serial interface transmitter. |
| RxD | UART serial interface receiver. |
| GPIO x | GPIO output (digital input/output) with a consecutive number. |
| GPIO 0 | GPIO with special function: To update, enter low state (connect to GND). |
| GPIO 15 |
GPIO No. 15 with special function: In the normal and programming mode, the low state must be specified (connect to GND). |
| ADC | Analogue-to-digital converter input. |
| REST | Reset the system. |
|
EN (CH_PD) |
Power down - when you enter a low state, you go into sleep mode.
To update, enter high state (3.3 V). |
| VCC | Power supply - 3.3 V. |
|
Arduino compatible product Instructions for connecting the module with Arduino based on the ESP-01 module can be found on theDIYblogand inthe guideprepared byus. The board tolerates voltage of 3.3V. Therefore, you should choose Arduinoworking with 3.3V oruse a converter. |
WiFi module specification ESP-07S ESP8266 - 9 GPIO, ADC, U.FL socket
- Power supply voltage: 3,3 V
- Chip: ESP8266
- Standard: Wi-Fi: 802.11 b/g/n
- Flash memory: 4 MB
- Frequency of operation: 2.4 GHz
- Supports security: WPA / WPA2
- Can operate in AP (Access Point), STA (standalone) and AP+STA mode
- Supported network protocols: IPv4, TCP / UDP / HTTP / FTP
- Encryption standards: WEP / TKIP / AES
- Built-in 10-bit ADC
- GPIO - 16 outputs
- 9 x GPIO - digital input/output pins
- 1 x ADC - analogue-to-digital converter
- 2 x UART (TX, RX) - for communication with e.g. Arduino
- Operating temperature: -40°C to 125°C
- Dimensions: 16 x 17 x 3 mm
- Weight: 1,4 g
