Description
Air purity sensor from Groveseries. It is used for detecting slightly toxic gases such as carbon monoxide, alcohol, acetone, thinner, formaldehyde and other.The kit includes a cable adapted to SeeedstudioBase Shield v2.0.

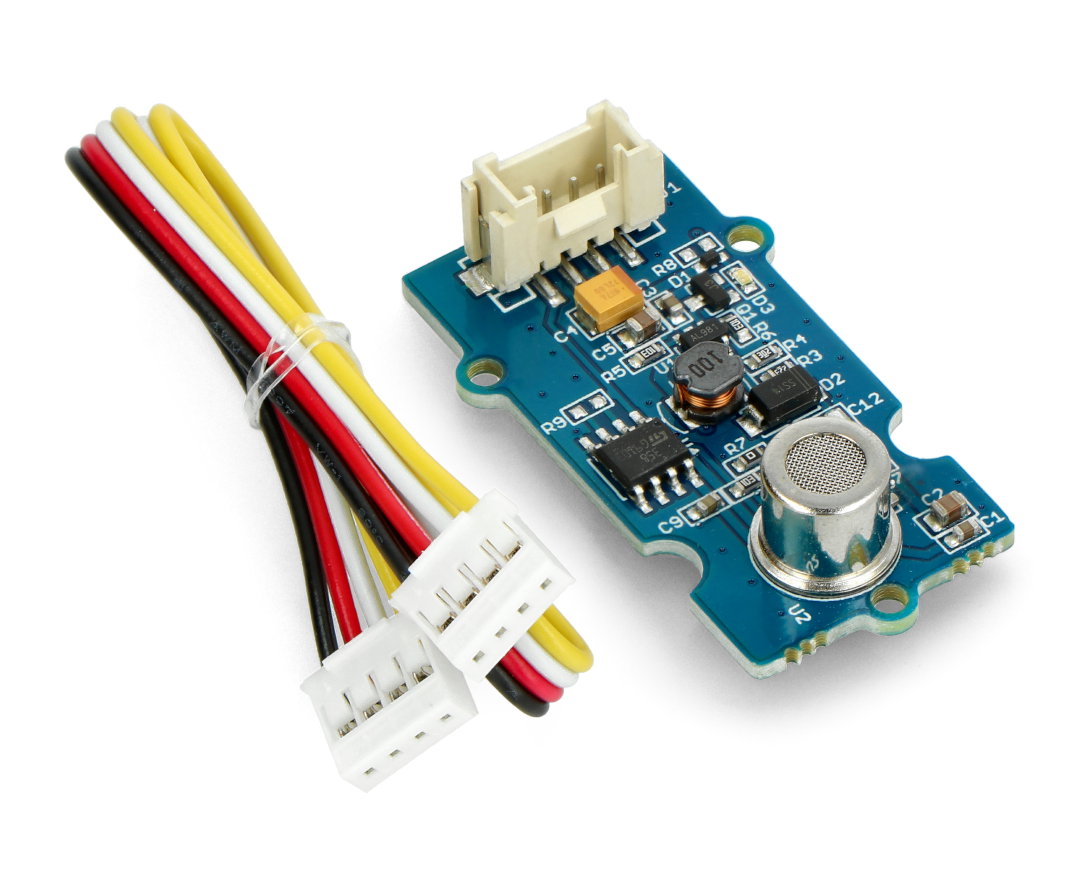

Module supplied with 4-pin cable forBase Shield v2.
Specification
- Supply voltage: 3.3 V or 5 V
- Based on the system MP503
- High sensitivity
- Communications: the analog signal
- Dimensions: 40 x 20 mm
|
The product is compatible with Arduino The manufacturer offers auser manual and a libraryforArduino. |
Connection

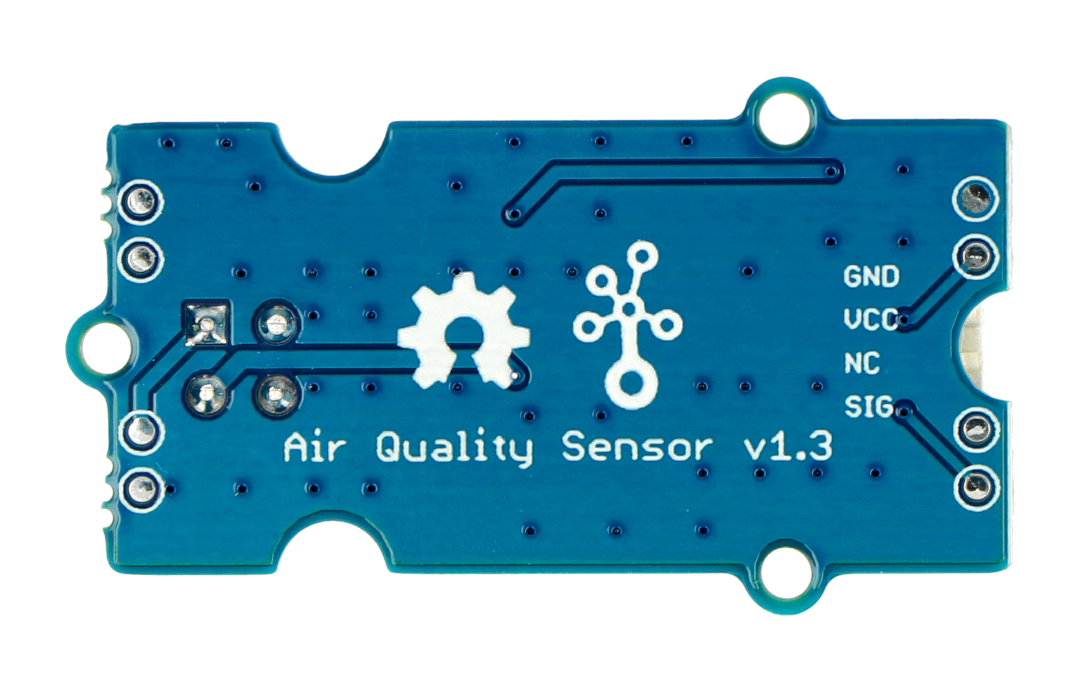

The sensor communicates with the microcontroller in an analog way. It has the following outputs:
| Pin | Description |
|---|---|
| GND | The ground of the system. |
| VCC | Supply voltage 3.3 V or 5 V. |
| NC | Not connected. |
| SIG | The output of the analog signal. |
|
Grove is a series of modules and sensors that are compatible withBase Shield boads working withArduinoandSTM32 Nucleo. |
