OV9281 1Mpx Mono camera Global Shutter with M12 NoIR lens for Nvidia Jetson Nano - Arducam B0223

Index: ACM-19211 EAN: 5904422358341
The camera created by Arducam is a part of Jetvariety project which allows to connect any camera module to the high-speed CSI-2 connector of Nvidia Jetson Nano minicomputer. It features a monochrome OV9281 Global Shutter sensor with 1280 x 800 px resolution and 1/4" format. The Omnivision OV9281 sensor is equipped with OmniPixel3-GS technology, which provides full-frame, subsampled and windowed 8/10-bit MIPI images capable of up to 120 fps at full resolution.
€56.10
€45.61 tax excl.
Waiting for confirmation of delivery date
Product unavailable
30-day returns
PayPal payment
Manufacturer: ArduCam

Product description: OV9281 1Mpx Global Shutter camera with M12 lens for Nvidia Jetson Nano - NoIR - monochrome - Arducam B0223

The camera created byArducamis a part ofJetvarietyproject which allows to connect any camera module to CSI-2 high-speed connector in minicomputerNvidia Jetson Nano. It is equipped with monochromaticOV9281Global Shutter sensor of1280 x 800 pxresolution and 1/4" format. The Omnivision OV9281 sensor is equipped with OmniPixel3-GS technology, which provides full frame rate, subsampled and windowed 8/10-bit MIPI images capable of operating at up to 120 fps at full resolution on a 1-band MIPI bus with full user control over image quality. Global Shutter and excellent low light sensitivity allow it to be used in any application requiring gesture detection, eye tracking and depth and motion detection.

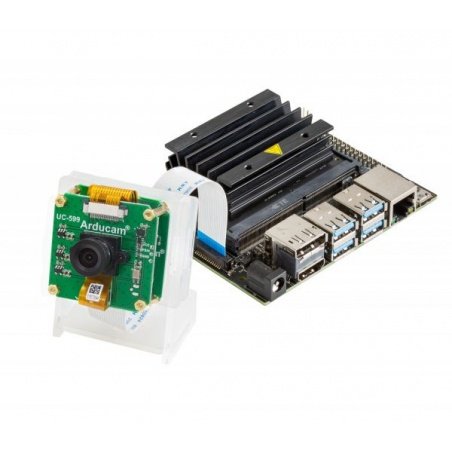

Przykład połączenia z Nvidia Jetson NanoAn example of connecting camera to Nvidia Jetson Nano minicomputer. The minicomputer can be purchased separately.

Attention!

Thecamera driveruses the kernel of the operating system. Upgrading or downgrading the system version may change the system kernel, which involves changing the driver.

Main features of the driver

  • Supports Gray, Y10, Y16
  • Supports V4L2 framework, Video Nodes and Controls (exposure, gain depending on camera parameters)
  • Supports external Global Shutter trigger
  • Single command driver installation
  • Supports OpenCV and includes sample code
  • Synchronization of two cameras possible

Example of camera application

  • Protection
  • Wide dynamic range imaging
  • Monitoring
  • Stereo vision
  • Machine vision
  • Automation

Camera specifications

  • Sensor: Omnivision OV9281 Global Shutter monochrome
  • Pixel size: 3 x 3 µm
  • Active field size: 1280 x 800 px
  • Format: 1/4"
  • Maximum frame rate: 1280 x 800 / 120 fps
  • Zoom range: 30mm to infinity
  • Lens mount: M12 x 0.5P
  • Viewing angle: 130° (D) / 110° (H) / 90° (V)
  • IR sensitivity: no IR filter
  • Camera interface: 2-line MIPI
  • Output Format: 8/10-bit RAW
  • Plate dimensions: 40 x 40 mm

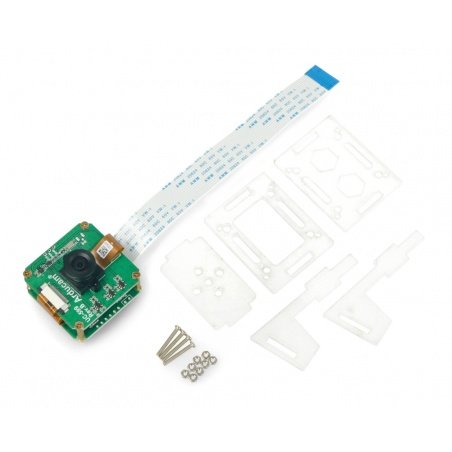

Camera kit contents

  • Camera for Nvidia Jetson Nano
  • FFC tape
  • Housing components
  • Mounting screws and nuts
Zawartość zestawuArducam camera kit contents.
Interface CSI - Raspberry Pi
Camera - matrix OV9281
Camera - IR filter No
Camera - lens M12x0.5
Camera - format 1/4 ''
Camera - type module
