Product description: Device for washing and drying prints - Anycubic Wash & Cure 3
A device from Anycubic designed for washing and drying models made of photosensitive resin . The top cover provides effective protection against UV radiation, and the intuitive touch screen facilitates the operation of the entire process. Anycubic Wash & Cure 3 allows you to wash prints in two ways - using a dedicated basket or in hanging mode, without removing them from the work platform. The device is equipped with a flexible Flexicure lamp, which provides an additional source of UV light, increasing the curing efficiency. By adjusting the time and intensity of lighting, it guarantees even exposure for perfect results.
Device for washing and drying prints - Anycubic Wash & Cure 3.
A device from Anycubic designed for washing and drying models made of photosensitive resin.

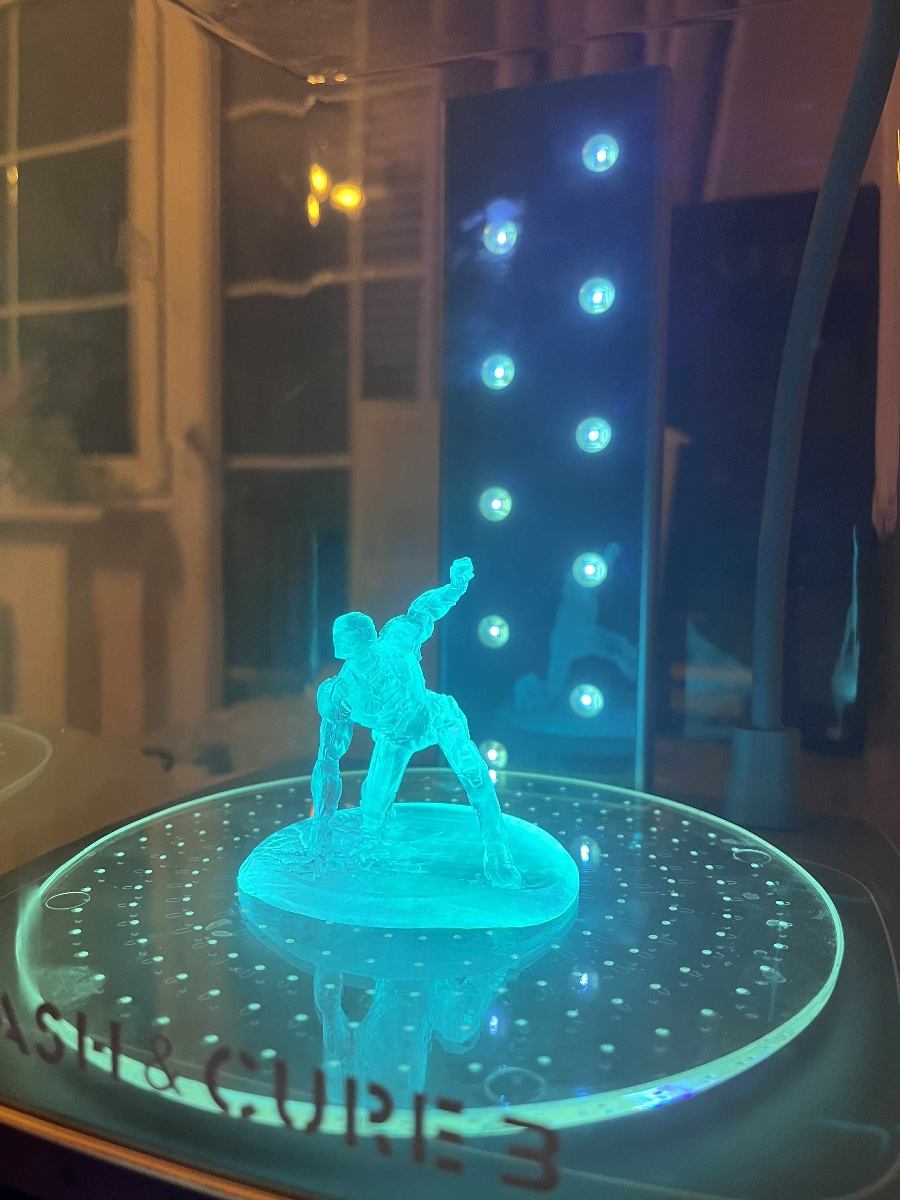

Effective hardening system
Flexible Flexicure lamp, used in the hardening system in the form of the so-called "gooseneck" , allows you to increase the energy value by an impressive 30,000 uW/cm² in the exposure range with a depth of 1 to 3 cm. Additionally, the system has undergone significant modifications in the system of UV light-emitting diodes. Compared to previous Wash & Cure models, the accuracy and consistency of the curing process increased by as much as 20%.
Protection against UV radiation
The specially designed upper cover has been constructed to effectively protect against UV radiation escaping the working area of the device. The UV light blocking rate is over 99.95% .
The top cover provides effective protection against UV radiation.
User-friendly
Wash & Cure 3 is distinguished by an intuitive touch screen that makes it easier for users to control the washing and curing processes of 3D prints. Thanks to it, working with the device becomes both pleasant and effective. Additionally, the tight design and optimized software effectively reduce the noise generated, creating a calm and comfortable environment. According to research, the noise level during operation of Wash & Cure 3 does not exceed 65 dB .
Two ways to clean your prints
This device provides two effective methods for washing 3D prints. The model can be placed directly in a dedicated basket. Unlike previous models, Wash & Cure is equipped with a basket made of durable PP material, eliminating the risk of corrosion. Alternatively, the second method is to place the entire printed surface on a special holder. This way, the print can be cleaned without having to tear it off the platform.
Anycubic Wash & Cure 3 allows you to wash prints in two ways - using a dedicated basket or in hanging mode.
Construction of Anycubic Wash & Cure 3.
Construction of the Anycubic device
- Cleaning basket
- Cleaning bucket
- Control panel
- UV blocking top cover
- Gooseneck lights
- UV light in the Z axis
- Hardening table
Technical Specifications
- Working area of the washing function (in the basket): 165 x 100 x 165 mm
- Working area of the washing function (with platform): 165 x 100 x 180 mm
- Working area of the hardening function: φ160 x 180 mm
- UV light source: 10 405 nm lenses + Flexicure lamp
- Washing and drying time for prints: from 1 to 30 minutes
- Rated Power: 36W
- Dimensions: 215 x 217 x 310 mm
- Weight: 5.7 kg
By adjusting the time and intensity of lighting, it guarantees even exposure for perfect results.
