Camera HD B OV5647 5Mpx for Raspberry Pi - Waveshare 20869
A small camera module connected to the dedicated connector of the Raspberry Pi minicomputer, version 4B, 3B +, 3A +. The device has a CMOS sensor 1/4 "with a resolution of 5 Mpx , and an OV5647 sensor. Supports HD 1080 px mode.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: HD B OV5647 5Mpx camera for Raspberry Pi - Waveshare 20869
The camera module is connected to the dedicated connector of the Raspberry Pi minicomputer, version 4B, 3B +, 3A +. The device has a CMOS 1/4 "matrix with a resolution of 5 Mpx , and an OV5647 sensor. Supports HD 1080 px mode. The compact size of the product allows it to be used even in small projects based on the Raspberry Pi.
A detailed description of the device can be found in the Wiki user guide. The offer of our store includes a wide selection of other models of cameras for the Raspberry Pi .
HD B OV5647 5Mpx camera for Raspberry Pi - Waveshare 20869 .
Botland is an official distributor of Waveshare devices. Their versatility and compatibility, particularly in display and power technology, have won over customers all over the world. Our team guarantees that all Waveshare products presented here are original.

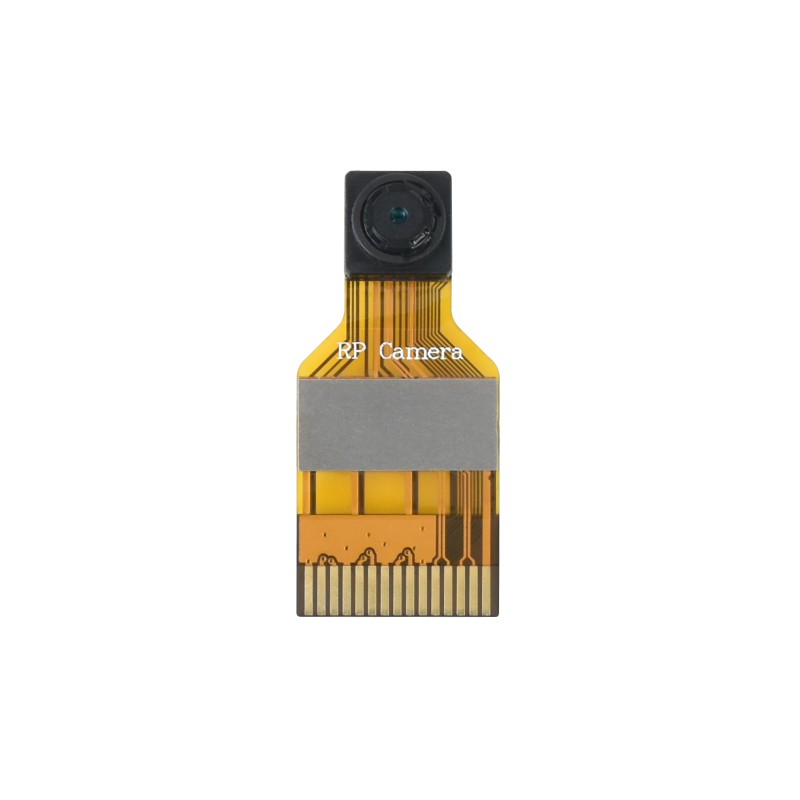

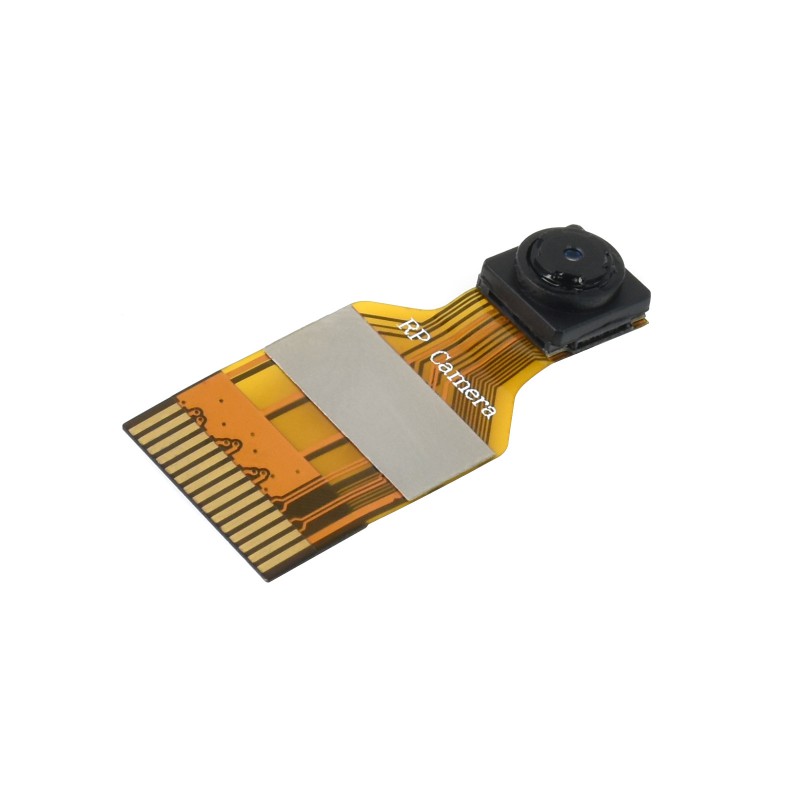

HD camera module - Waveshare 20869 .
Camera highlights
- Compatible with the most popular versions of the Raspberry Pi minicomputer: 4B, 3B +, 3A +.
- The small dimensions allow the use of the camera even in small projects where there is a problem with a small amount of space for components.
- It supports 5 Mpx resolution, thus ensuring high image quality.
- The ability to record video in HD 1080 px resolution.
- The module does not have an infrared IR filter and adjustable focus.
The manufacturer has prepared a detailed guide for connecting and operating the camera with the Raspberry Pi minicomputer, along with example commands.
Specification HD B OV5647 camera - Waveshare 20869
- CMOS: 1/4 ''
- Matrix: 5 MPx
- Sensor: OV5647
- Focal length: 3.89mm
- Distortion: <1.5%
- Aperture: F2.4
- Viewing angle - diagonal: 72.9 °
- Depth of field of view: 20 cm to infinity
- Image: image resolution - 2592 × 1944 px
- Video recording: 1920 × 1080 px @ 30, 1280 × 720 px @ 60, 640 × 480 px @ 60, 640 × 480 px @ 90

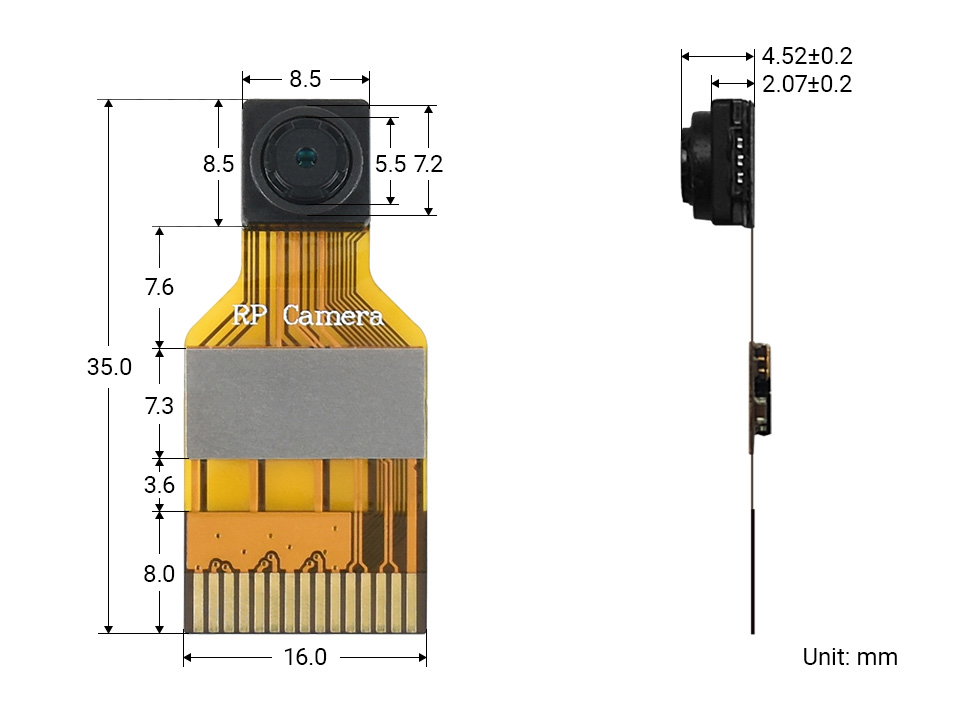

- Dimensions: 35 x 16 mm
Kit contents
- Camera HD B OV5647 5Mpx for Raspberry Pi - Waveshare 20869: 1 pc.
- Foam gasket: 1 pc.

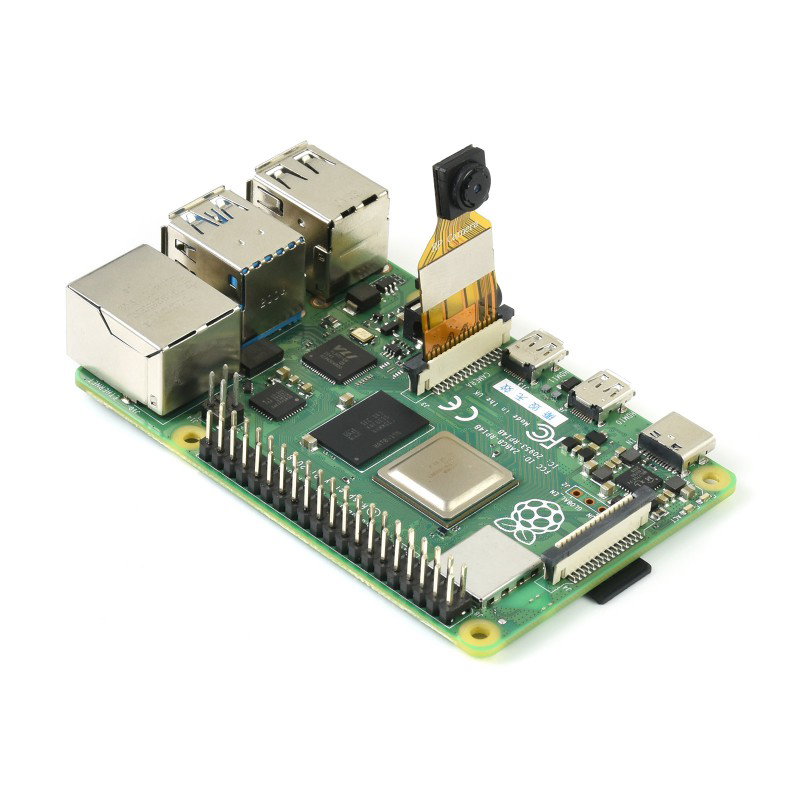

Connection example. Raspberry Pi is not included
Useful links
| Name | Value |
|---|---|
| Interface | CSI - Raspberry Pi |
| Resolution | 2592x1944px |
| Camera - matrix | 5Mpx OV5647 |
| Camera - IR filter | No |
| Camera - format | 1/4 '' |
| Camera - type | module |
| Width | 5 cm |
| Height | 11 cm |
| Depth | 2.3 cm |
| Weight | 0.011 kg |
