Product description: Trinkey QT2040 - board with RP2040 microcontroller - USB - STEMMA QT - Adafruit 5056
The Trinkey QT2040 from Adafruit is a board equipped with the RP2040 microcontroller. It is equipped with a chip that has two ARM Cortex M0+ cores running at 125 MHz, 264 kB of SRAM, 8 MB of FLASH memory. It also has STEMMA QT connectors and a USB type A connector, which can be used to connect it to e.g. a computer. The Trinkey QT2040 also has four M2.5 mounting holes.
The platform supports the popular programming languages MicroPython, CircuitPython and C/C++, which can be loaded into the memory via the USB interface using the built-in UF2 Bootloader or an external programmer via the SWD interface. The Feather RP2040 features a red LED and a single Neopixel RGB LED that can be programmed using CircuitPython.

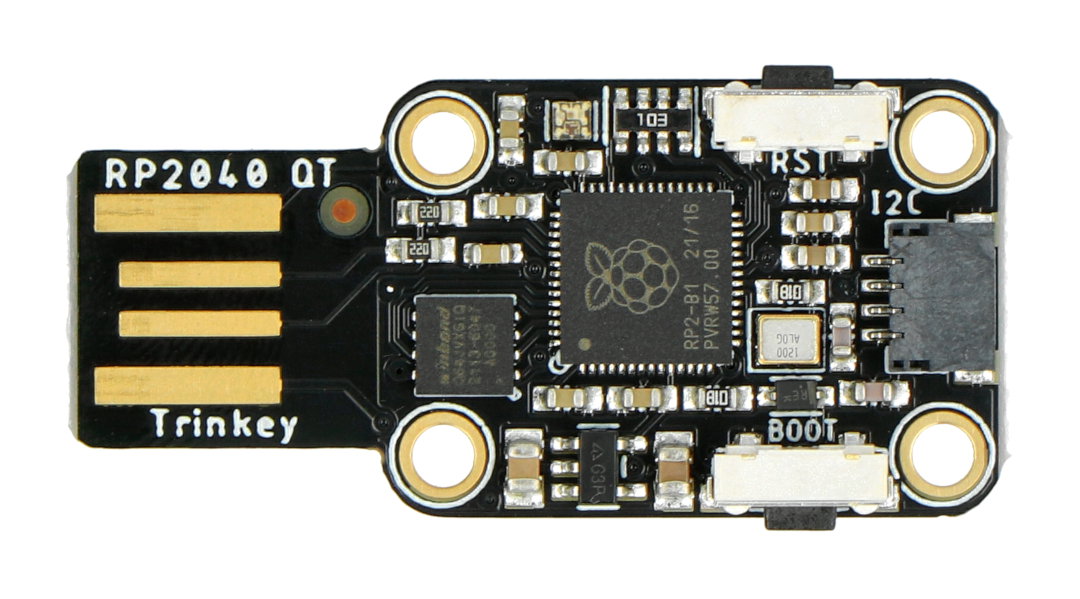

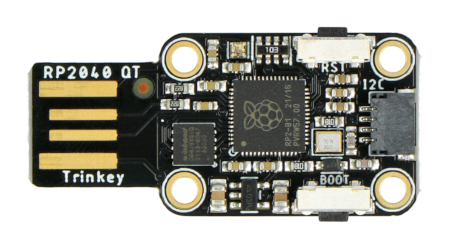

Trinkey QT2040 - RP2040 microcontroller board.
Main features of the RP2040 chip
- Two ARM Cortex-M0+ cores clocked at 125 MHz
- 264 kB of on-chip SRAM memory
- Support for up to 16MB of external Flash memory via QSPI bus
- Fully interconnected AHB crossbar
- DMA controller
- Peripherals with interpolator and integer divider
- On-chip programmable LDO for core voltage generation
- 2 on-chip PLLs for clock generation, USB and core
Trinkey QT2040 pinout description
The Trinkey QT2040 features the STEMMA QT connector for fast and seamless connection. The connector pinouts follow the relationship below:
- SCL - I2C interface clock line
- SDA - I2C interface data line
- 3,3, V - power supply pin
- GND - system ground
The manufacturer has prepared a detailed user guide that contains a detailed description of all components on the board. Check it out!

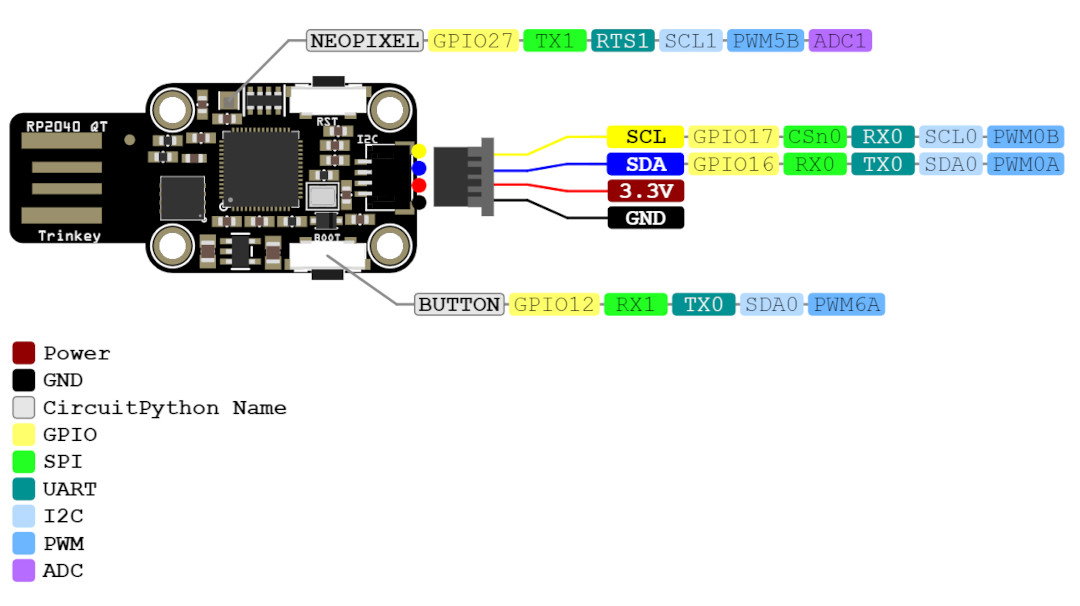

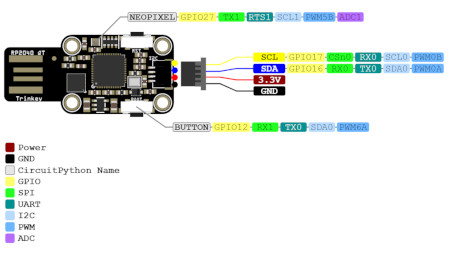

Pinout description of Trinkey QT2040.

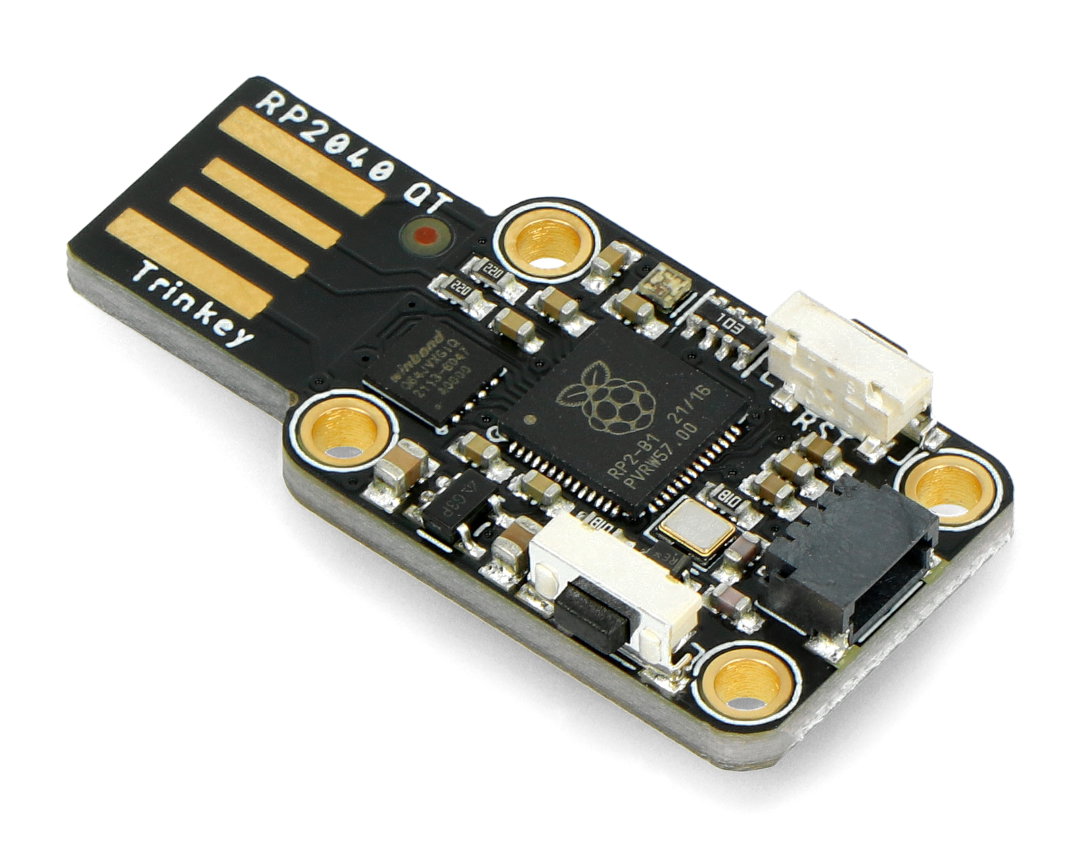

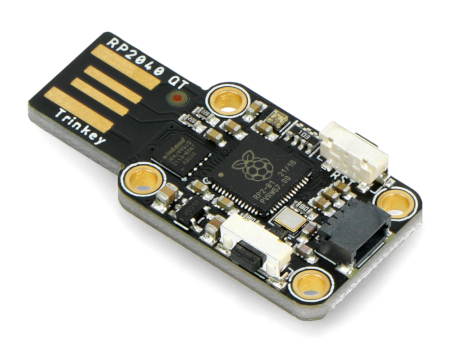

The board has a functional button located on the side.
Technical specification Trinkey QT2040
- Series: Trinkey
- Microcontroller: RP2040
- 32-bit dual-core Cortex M0+
- SRAM: 264 kB
- Flash memory: 8 MB
- No EEPROM memory
- Supply voltage: 3.3 V to 5 V
- I2C communication interface
- Connector:
- USB type A matching USB host port
- STEMMA QT
- Dimensions: 38.2 x 17.7 x 5.5 mm
- Weight: 3 g
STEMMA QT connector what is it?
Adafruit Trinkey QT2040 is equipped with STEMMA QT connector, which allows you to connect different types of sensors without soldering. This connector uses the SCL and SDA pins for the I2C interface.
STEMMA conne ctors are 3 or 4 pin JST PH connectors. They make it easy to connect and read various sensors and devices without soldering. STEMMA 4-pin J ST PH are larger connectors with 2.0 mm pitch for I2C. Whereas the 3-pin J ST PH connector is a 2.0 mm raster connector forPWM / analog / digital use .
