Product description: RP2040-One - 4 MB Flash - RP2040 microcontroller board - Waveshare 22809
Module from Waveshare with the Raspberry RP2040 microcontroller, which is also used in the popular Raspberry Pi Pico . RP2040-One has a dual-core ARM Cortex-M0+ processor clocked at up to 133 MHz, the board is also equipped with 264 kB of built-in SRAM memory and 4 MB of Flash memory. RP2040-One has a design that allows soldering directly to the carrier boards. It also has a USB type A interface that allows you to plug the module into a computer socket in order to implement the program.

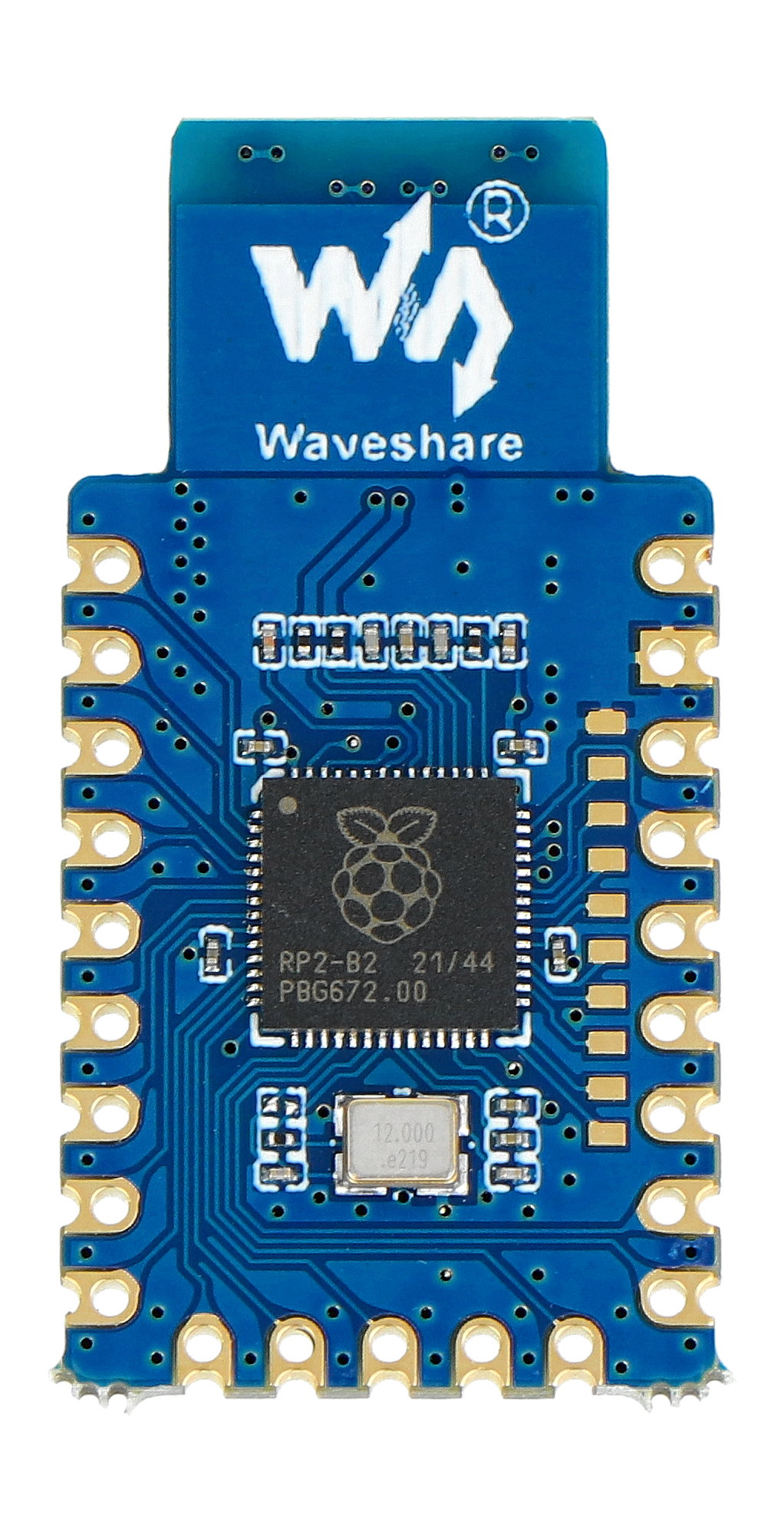

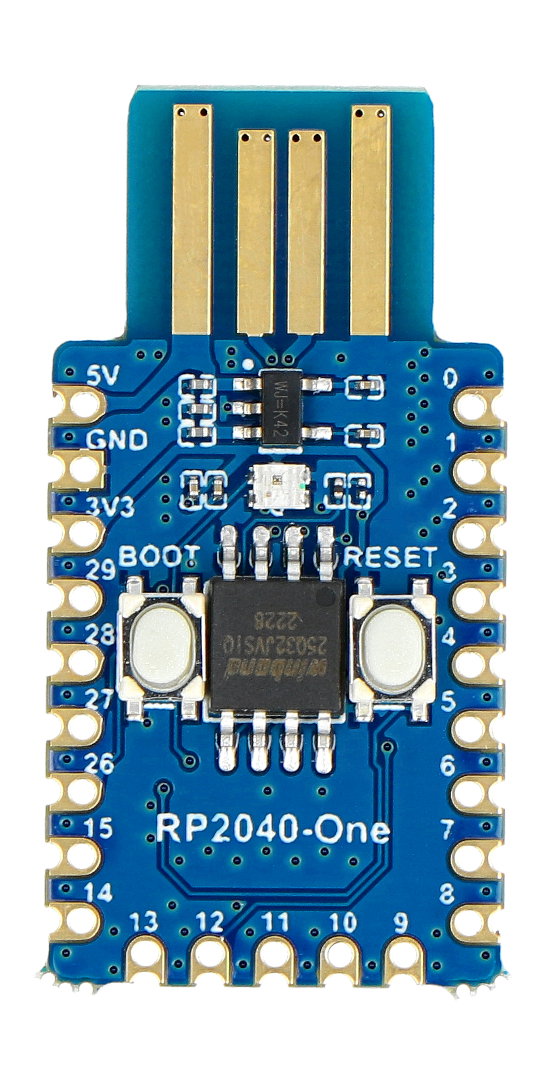

RP2040-One - 4 MB Flash - board with RP2040 microcontroller - Waveshare 22809.

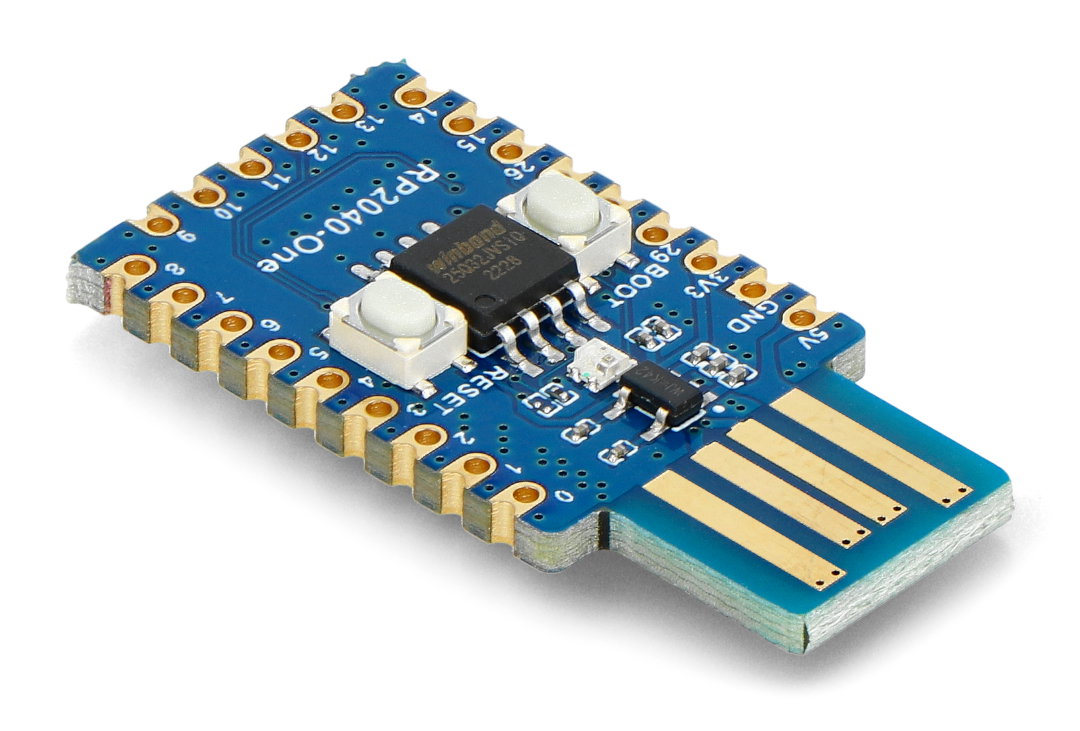

RP2040-One with a microcontroller from the Raspberry Pi Foundation.
Special features of the RP2040-One
- Embedded RP2040 microcontroller chip designed by Raspberry Pi in UK
- Dual-core ARM Cortex M0+ processor clocked up to 133MHz
- 264 kB of SRAM and 4 MB of built-in Flash memory
- Design that allows soldering directly to the carrier plates
- USB 1.1 interface with support for devices and hosts
- Drag-and-drop programming using USB mass storage
- 29 multifunctional GPIO pins
- 2x SPI, 2x I2C, 2x UART, 4x 12-bit ADC, 16x PWM
- Programmed using C/C++ and MicroPython
The manufacturer has also prepared a detailed user's guide , which significantly facilitates work with the module.

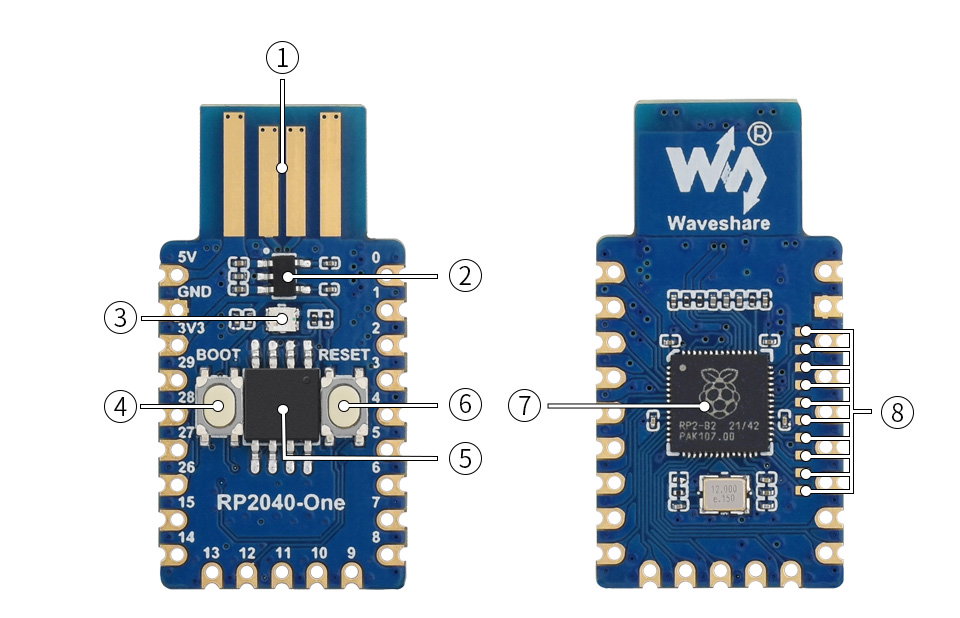

Arrangement of elements
- USB A port
- Chip RT9013-33GB - 500 mA ultra-fast LDO
- WS2812 RGB LED
- BOOT button (press it during reset to enter download mode)
- W25Q32JVSSIQ - 4MB NOR Flash
- reset button
- Dual-core RP2040 processor, clock frequency up to 133MHz
- RP2040 pins
Arrangement of elements.
The module is equipped with 26 GPIO pins.
Technical specification RP2040-One
- Chip: Raspberry Pi RP2040
- Core: ARM Cortex-M0+ Dual-Core 133MHz
- SRAM memory: 264KB
- Built-in Flash memory: 4MB
- Pins: 29 multifunctional GPIO pins
- Interfaces: 2x SPI, 2x I2C, 2x UART, 4x 12-bit ADC, 16x PWM
- Development Environment: Raspberry Pi C/C++ SDK or MicroPython
- Interface: USB type A
- Board dimensions: 51 x 21 mm
- Module dimensions (without USB connector): 25.5 x 18 mm
- Overall dimensions of the module: 35.5 x 18 mm
