Color sensor, light-frequency converter TCS3200 - Waveshare 9520

Index: WSR-04932 EAN: 5904422374211

Module with color sensor that enables a measurement of the RGB components, the output is the frequency depend on the intensity of the selected color. It is supported by any microcontroller or the commissioning set, including Arduino.

Color sensor, light-frequency converter TCS3200 - Waveshare 9520
€14.08
€11.45 tax excl.
In stock, shipping 24 hours!
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Waveshare
Compatibility: Arduino

Description

Sensor with TCS3200 sensor allows for measurement of the color (RGB components - Red, Green, Blue), the output of which is frequency dependent on the intensity of the selected color. It is supported by any commissioning set with a microcontroller equipped with a counter, for example,STM32DiscoveryorArduino.



Specification

  • Supply voltage: 2.7 V to 5.5 V
  • Pins: goldpin
  • Simple connection with a microcontroller (frequency readings)
  • Built-in 4 LEDs illuminating the studied object
  • Dimensions: 36 x 20 mm (without connectors)

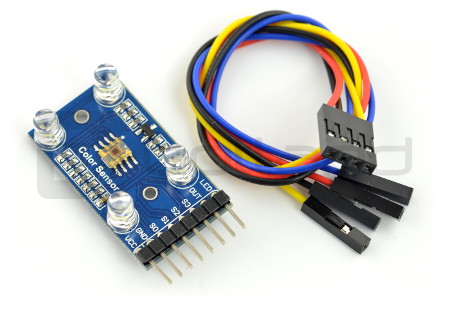

Czujnik koloru, przetwornik światła - TCS3200

Module has a cable with female ends.



The module is powered with the voltage from the range of 2.7 V to 5.5 V, thanks to it, it is perfect in the systems of 3.3 V and 5 V. The sensor can be connected to any commissioning set with a microcontroller that has a counter (Timer) with the frequency input, for example,STM32DiscoveryorArduino. The output is a signal with a frequency that depends on the light intensity selected by the color via the S2 and S3pins.



Detailed description is available in the arrays in the further part of the description. Pins are the popular goldpin connectors, allowing for the connection of a sensor with the main module usingconnection cables (included).



Connection

Description of the pins are in the array.

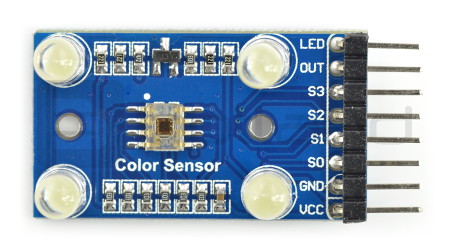

Czujnik koloru - schemat wyprowadzeń



Pin Description
VCCIO Power supply from 2.7 V to 5.5 V.
GND The ground of the system.
LED Control of 4 LEDs.
OUT Frequency of color output.
S0/S1 Inputs are provided for scaling the output frequency. The description is below.
S2/S3 Inputs to select the type of photodiode. The description is below.



Setting

Using the configuration inputsS0andS1, selected is the prescaler(divider) of the output frequency signal by which we can adjust the frequency range for the used microcontroller. InputsS2andS3are used to selectthe type of measuring photodiode: red, green, blue or clear options, that is without filtering (measured will be all RGB components).



Selection of divider of the output frequency

S0

S1

Scale of output frequency
in relation to fo

L

  The sensor is disconnected

L

H

2 %

10-12 kHz

H

L

20 %

100-120 kHz

H

H 100 %
500-600 kHz





Selecting the type of photodiode (filtered)

S0

S1

Type of photodiode

L

L red (R)

L

H blue (B)

H

L clear (RGB)
(unfiltered)

H

H green (G)



L (Low) - low status

H (High) - high status
