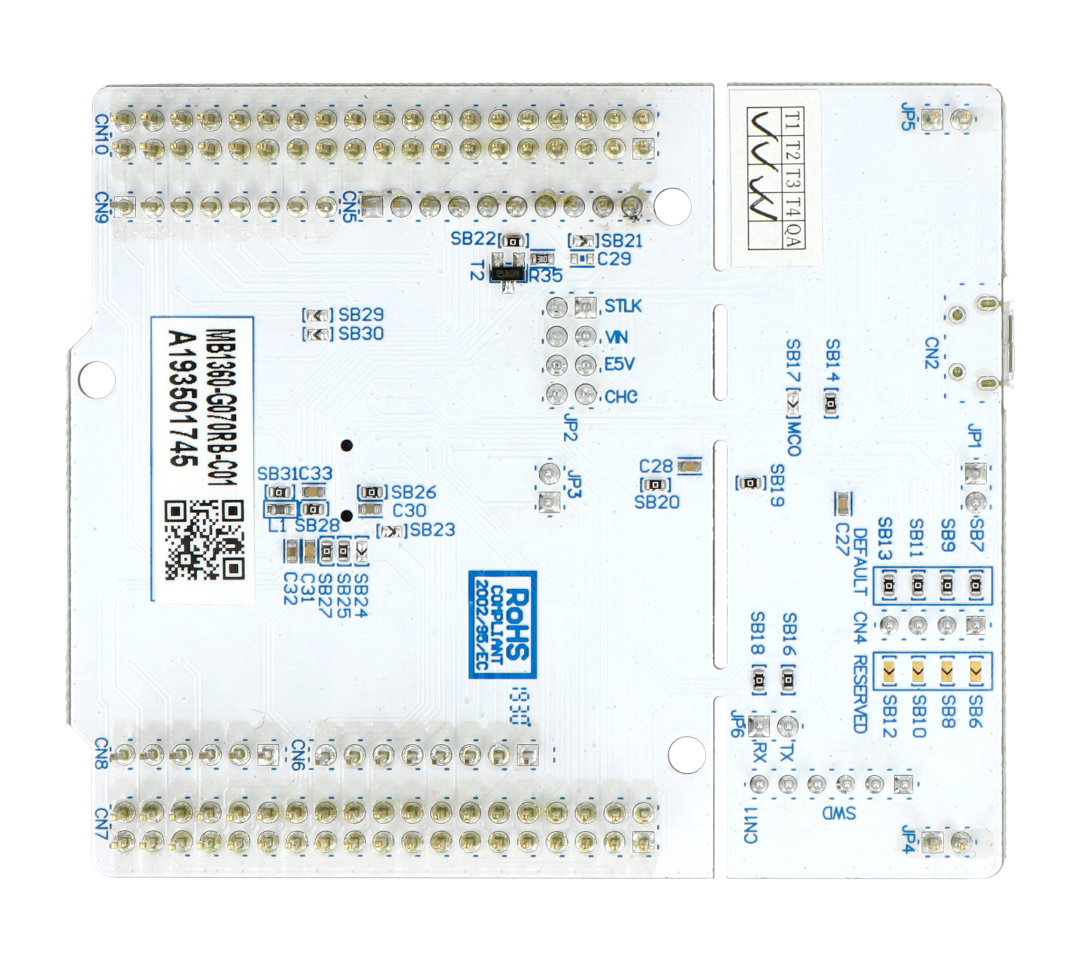

Product description: STM32 NUCLEO-G070RB - with STM32G070RB MCU, supports Arduino and ST morpho connections
Nucleo allows you to implement projects based on a powerful microcontroller with a 32-bit ARM Cortex core. The modules are compatible with Arduino overlays. NUCLEO-G070RB has ARM Cortex M0+ 32-bit core, I2C, UART, SPI interfaces, 128 kB Flash memory, 36 kB SRAM. The board is equipped with connectors compatible with Arduino Uno V3 and Morpho ST. There are four LEDs which are located at the top of the board.
System requirements
- Windows (7, 8 and 10), Linux 64-bit or macOS
STM32 NUCLEO-G070RB.
STM32 NUCLEO-G070RB - with STM32G070RB MCU, supports Arduino and ST morpho connections.
NUCLEO-G070RB specification
- STM32 microcontroller in LQFP64 package
- Core: ARM Cortex M0+ 32-bit
- Clock frequency: 64 MHz
- Flash program memory: 128 kB
- SRAM: 36 kB
- Analog-to-digital converter: 12-bit, 15-channel
- Number of Timers: 11
- Number of programmable inputs/outputs: 59
- Interfaces: I2C, USART, SPI
- 1 user LED shared with Arduino
- 1 reset button
- 32.768 kHz quartz oscillator
- Expansion connectors for Arduino
Uno V3 and ST morpho - Flexible power options: ST-LINK, USB V or external source
- Built-in ST-LINK debugger/programmer with USB re-numbering function: storage, virtual COM port and debug port
- Comprehensive free software libraries and examples available in the STM32Cube MCU package
- Support for a wide selection of integrated development environments (IDEs), including IAR Embedded Workbench, MDK-ARM and STM32CubeIDE
