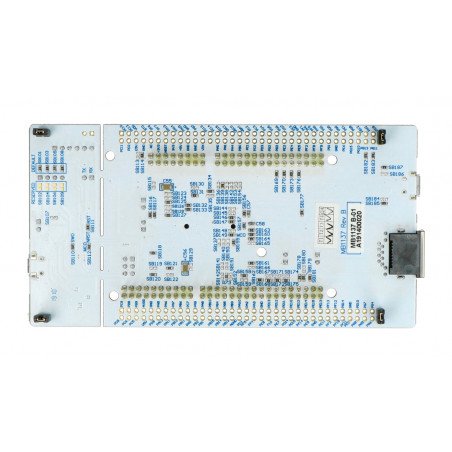

STM32 NUCLEO-F207ZG - STM32F207ZGT6 ARM Cortex M3
STM32 NUCLEO-F207ZG - STM32F207ZGT6 ARM Cortex M3
STM32 NUCLEO-F207ZG - STM32F207ZGT6 ARM Cortex M3
STM32 NUCLEO-F207ZG - STM32F207ZGT6 ARM Cortex M3
STM32 NUCLEO-F207ZG - STM32F207ZGT6 ARM Cortex M3 - zdjęcie 1
STM32 NUCLEO-F207ZG - STM32F207ZGT6 ARM Cortex M3 - zdjęcie 1
STM32 NUCLEO-F207ZG - STM32F207ZGT6 ARM Cortex M3 - zdjęcie 3
STM32 NUCLEO-F207ZG - STM32F207ZGT6 ARM Cortex M3 - zdjęcie 4

STM32 NUCLEO-F207ZG - STM32F207ZGT6 ARM Cortex M3

Index: DIS-06713

Module with 32-bit microcontroller equipped with core ARM Cortex M3, 72 MHz, 128 KB Flash, 20 KB SRAM. Nucleo is compatible with the mbed platform and has connectors for connecting the Arduino Shields.

€28.30
€23.01 tax excl.

In stock, shipping 24 hours!
(Check quantity)
Shipping in 24 hours
30-day returns
Manufacturer: STMicroelectronics

Description

Nucleo allows for the implementation of projects based on efficient microcontroller with 32-bit core ARM Cortex. The modules are compatible with Arduino shields and the on-line compiler's system mbed.org. Nucleo works with most of popular programming platforms, including Keil, IAR and with environments based on the GCC compiler.

Specification

  • Microcontroller: STM32F207ZGT6
    • Core: ARM Cortex M3 32-bit
    • Clock frequency: 120 MHz
    • Flash memory: 1 MB
    • Digital-to-analog converter (DAC): 12-bit, 2-channel
    • RAM: 128 KB
    • The number of 16-bit Timers: 12
    • The number of Timers 32-bit: 2
    • Interfaces: 2x I2C, 3x SPI, 2x I2S, 2x CAN, 4x USART, 2 UART, USB OTG
  • Two types of connectors:
  • The module is compatible with the system mbed (mbed.org)
  • The debugger ST-Link/V2 is placed on the board with the possibility to work as a standalone device with the release of SWD
  • The possibility to power through USB connector
  • RJ45 slot
  • Embedded three LEDs:
    • 1 x for indication of supply voltage
    • 1 x indicator of connection
    • 1 x at the user's disposal
  • Two buttons:
    • 1 x RESET
    • 1 x at the user's disposal
  • Three different interfaces via the connector microUSB (USB re-enumeration):
    • Virtual COM port
    • Mass memory
    • Port for programming/debugging
  • The module supports most of the popular environments, i.a.: IAR, Keil, and the platforms based on GCC compiler



A detailed description can be found in the documentation and on the website of the manufacturer.
