CAN Bus Module - MCP2515 - SPI - hat for Feather - Adafruit 5709
Module manufactured by Adafruit, enabling communication via the CAN bus. It is compatible with tiles from the Feather family. The built-in MCP2515 integrated circuit allows communication via the SPI interface, providing full support for the CAN bus. The board is also equipped with a TJA1051/3 transceiver that converts logic levels for 12 V / 24 V systems.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: CAN Bus module - MCP2515 - SPI - overlay for Feather - Adafruit 5709
Module manufactured by Adafruit, enabling communication via the CAN bus . It is compatible with Feather family tiles. The built-in MCP2515 integrated circuit allows communication via the SPI interface, while providing full support for the CAN bus. The board is also equipped with a TJA1051/3 transceiver that converts logic levels for 12 V / 24 V systems. The module is also equipped with a voltage converter that allows it to work with 3.3 V boards without the need for an additional power supply. It is possible to remove the termination of the CAN outputs (120 Ohm) by cutting the jumper located on the top side of the board. In the same way, you can change the connection of the CS and INT outputs (pins 5 and 6).
CAN Bus module - MCP2515 - SPI - overlay for Feather - Adafruit 5709.
Botland is an official distributor of Adafruit electronics. These dependable American solutions cover sensors, controllers, Arduino shields, educational systems, smart building and a wide range of accessories. The Botland range holds original Adafruit products only.
CAN Bus module - MCP2515 from Adafruit.
MCP2515 and TJA1051/3 chips
The MCP2515 is a standalone version 2.0B CAN bus controller, the successor to the MCP2510 . Compared to its predecessor, improvements have been made, e.g. throughput and data filtering. It provides communication with speeds up to 1 Mb/s .
TJA1051/3 is a converter that ensures compatibility of the physical layer of the CAN bus. It has support for 3.3 V / 5 V logic and works with 12 V / 24 V systems that are found in CAN Bus devices. It has a high resistance to electromagnetic interference ( EMI ) and complies with the standards: ISO 11898-2: 2016, SAE J2284-1 to SAE J2284-5.
In our offer you will also find other communication modules - check it out!

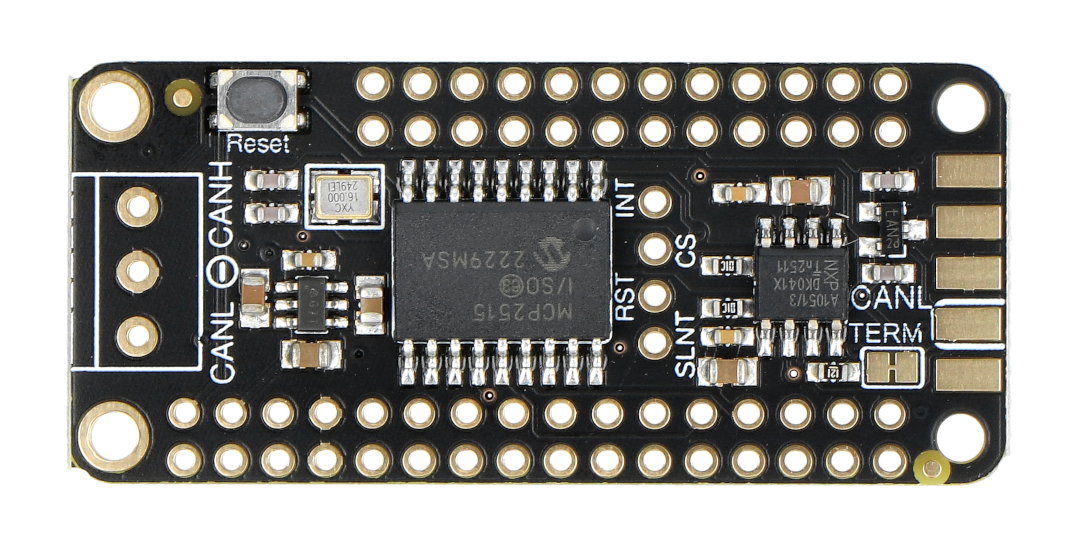

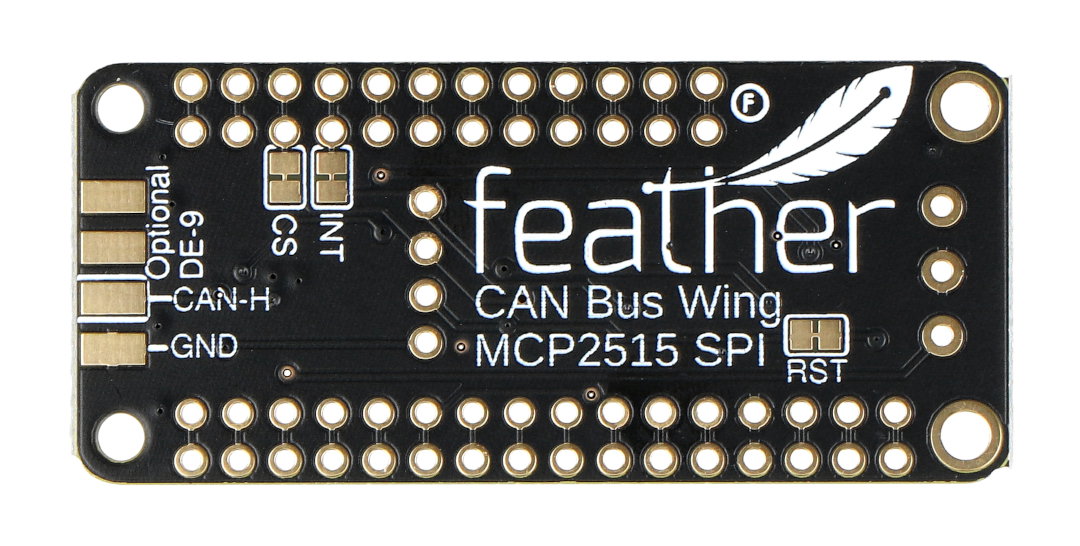

Pin description
- H/L: CAN bus transmission lines
- GND: common system ground
- TERM jumper: establishes CAN bus termination
- RST jumper: connects the reset pin of the MCP2515 to the reset pin of the Feather module
- Jumper CS: Connects the CS pin of the MCP2515 to pin 5 of the Feather module
- Jumper INT: Connects the interrupt output of the MCP2515 to pin 6 of the Feather
- CS: MCP2515 chip select chip
- RST: resetting the MCP2515 chip
- INT: MCP2515 interrupts
- SLNT: Enables the TJA1051/3 to sleep
The module leads are solder pads.
Components included in the set.
CAN module technical specification
- Built-in chip: MCP2515
- Supply voltage: 2.7 V to 5.5 V
- Communication interface: SPI
- CAN bus speed: 1Mbps
- Operating temperature: -40°C to 125°C
- Two RX buffers
- Module dimensions: 50.6 x 22.7 x 4 mm
- Weight: 4.5g

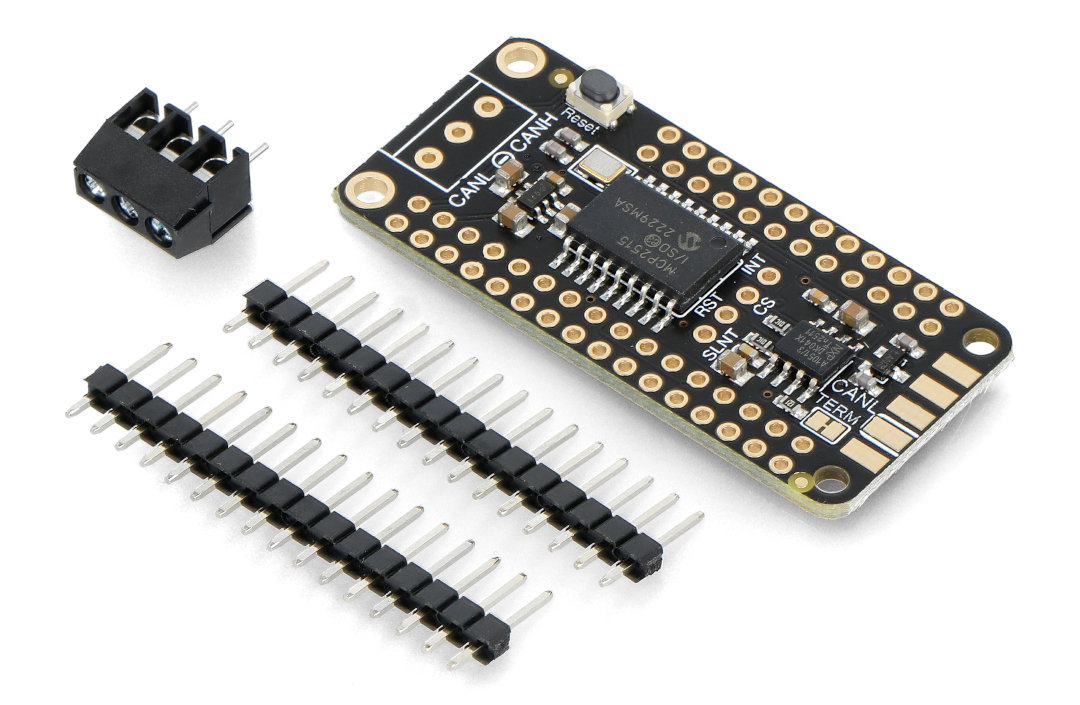

Kit Contents
- CAN Bus module - MCP2515 - SPI - overlay for Feather - Adafruit 5709
- 1x3 pin screw connector
- 2 x Goldpin strip 1x16 pin - 2.54 mm
Useful links
| Name | Value |
|---|---|
| Voltage to | 2.7 V |
| Voltage from | 5.5 V |
| Mass | 4.5 g |
| UC - SPI interface | yes |
| UC - CAN interface | yes |
| Width | 7.5 cm |
| Height | 1 cm |
| Depth | 13 cm |
| Weight | 0.009 kg |
