DIY Magnetic Connector - Right Angle Three Contact Pins - Adafruit 5358
Magnetic connectors allow for simple and quick connection of two modules. They were made by Adafruit like MagSafe, a similar solution can be found in MacBooks and the littleBits set. The kit includes a connector with 4-pin pogo pins and a connector with 4-pin female pads. The terminals of the connectors are placed at an angle of 90 ° . The pins' pitch is 2.54 mm . Attempting to reverse connect the connectors will end up pushing them apart. The connectors can be soldered into your own PCBs.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product Description: DIY Magnetic Connector - 4-pin right angle magnetic connectors - Adafruit 5358
Magnetic connectors allow for simple and quick connection of two modules. They were made by Adafruit like MagSafe, a similar solution can be found in MacBooks and the littleBits set. The kit includes a connector with 4-pin pogo pins and a connector with 4-pin female pads. The terminals of the connectors are placed at an angle of 90 ° . The pins' pitch is 2.54 mm . Attempting to reverse connect the connectors will end up pushing them apart. The connectors can be soldered into your own PCBs.
Botland is an official distributor of Adafruit electronics. These dependable American solutions cover sensors, controllers, Arduino shields, educational systems, smart building and a wide range of accessories. The Botland range holds original Adafruit products only.

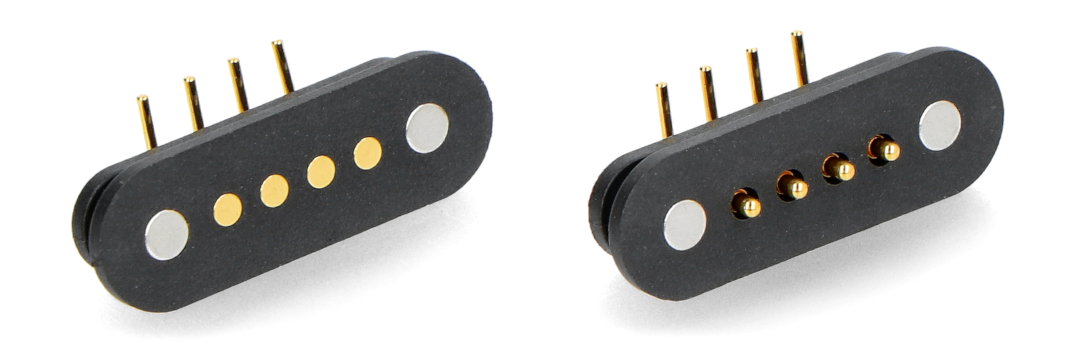

A set of angular 4-pin magnetic connectors with a pitch of 2.54 mm. The set includes a pair of connectors: male and female.
Specification of magnetic connectors
- Type of connectors: magnetic, pogo
- Number of pin: 4
- Pitch: 2.54 mm
- Type: angular
- Voltage: 36 V
- Max current: 2 A.
- Working and storage temperature: -30 ° C to 65 ° C
- Dimensions: 21 x 7 x 7 mm
Kit contents
- 1x Magnetic pogo male connector, 4-pin, angled
- 1x female magnetic connector, 4-pin, angled
Useful links
| Name | Value |
|---|---|
| Raster | 2.54 mm |
| Lead | 4 |
| Conn Type | magnetic |
| Conn - Standard |
|
| Width | 5 cm |
| Height | 2 cm |
| Depth | 7 cm |
| Weight | 0.003 kg |
GLS
Shipping in 24 hours
from €8.07
Raben - pallet delivery
Delivery in 3–5 days, no inside delivery
from €96.75
The full delivery terms are on the page Delivery and payment.
30 days to return, without giving a reason
If the product does not meet your expectations, you have 30 days from receiving the parcel to withdraw from the contract. The product only has to be complete. The right of return belongs to consumers (a purchase unrelated to business activity).
Complaints
If the product turns out to be faulty, you can make a claim under the guarantee or the statutory warranty. We handle claims without delay, at the latest within 14 working days of receiving the report together with the goods.
Question: Which pin is to be connected to the positive terminal and which is to be connected to the negative terminal?
https://cdn-shop.adafruit.com/product-files/5358/C17000-001_datasheet_MG04254F-RA-1S1N.pdf
