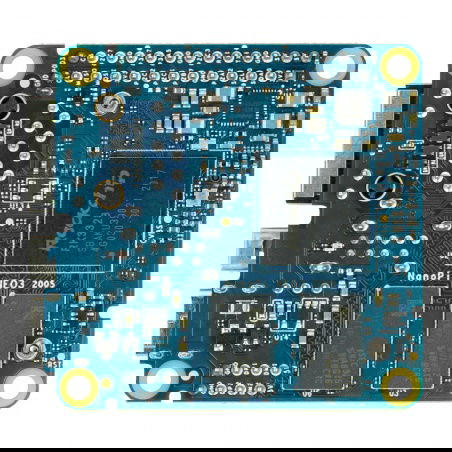

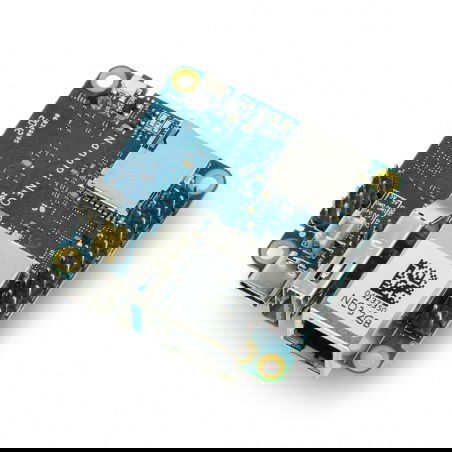

Product description: NanoPi NEO3-LTS - RK3328 Quad-Core 1,3 GHz + 2GB RAM with case and heatsink
Version ofNanoPi Neo3minicomputer withcase and heatsink. NanoPi Neo3 is based on theRockChip RK3328 Quad-Core ARM Cortex-A53processor clocked at 1.29 GHz. The module is equipped with1 GB of DDR4 RAM,Gigabit Ethernet port with unique MAC address, USB 3.0 slot, USB Type-C power connector,microSD memory cardslot and 26 GPIO pins. It runs the FriendlyWrt / Ubuntu operating system.

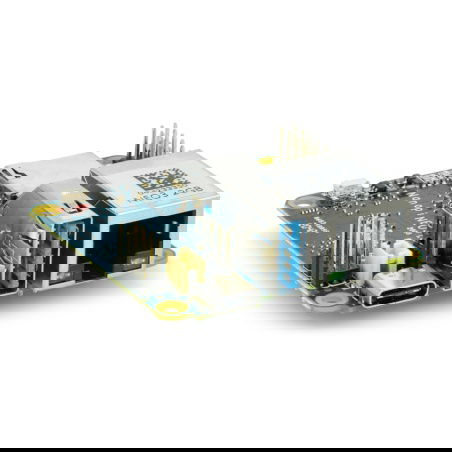

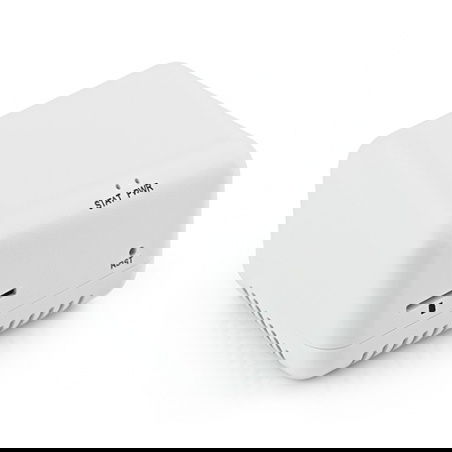

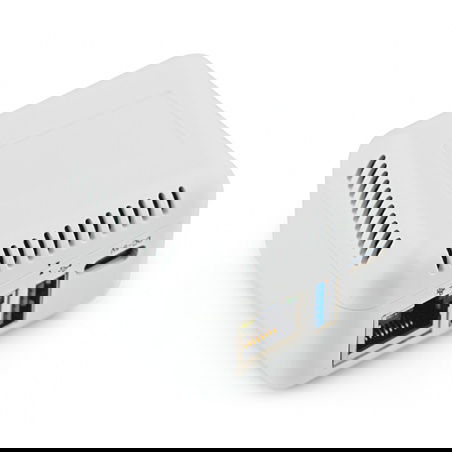

NanoPi Neo3 minicomputer in a case.

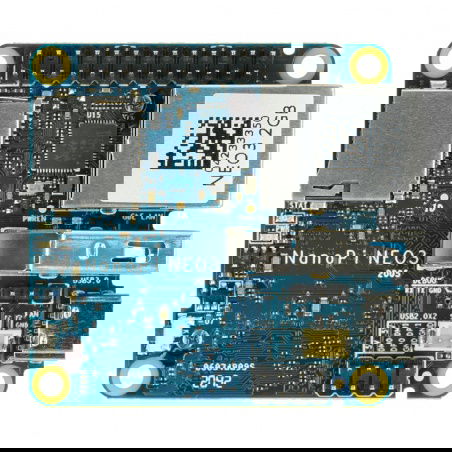

NanoPi Neo3 - pinouts.What do you need to run NanoPi Neo3?
- MicroSD memory card- as a carrier for operating system.
- AC adapter with microUSB plug- 5V with 1A current capacity with USB type C connector.
Operating system for NanoPi
NanoPi minicomputer works with systems prepared by the manufacturer: FriendlyWrt and Ubuntu. The operating system can be installed on a microSD memory card.
The operating systems can be downloaded from the manufacturer'swebsite. The manufacturer also providesa guide for installing the system.
Communication of NanoPi Neo3 minicomputer
NanoPi Neo3 has communication interfaces that can be found in standard PC class computers:
- 1x USB 3.0 type A connector + 2 USB 2.0 ports on 2.54 mm pins, to which you can connect WiFi adapter, mouse or keyboard. The number of connectors can be extended by using the USB hub.
- 1x Ethernet 1 Gb/s socketfor wired connection to LAN using RJ45 cable.
- GPIO x 26 pins- general purpose inputs / outputs, which can be used to operate LEDs, buttons, motor drivers. The interfaces include: I2C, I2S, SPI and UART.
- MicroSD cardslot - a slot for a microSD card which is a carrier for the operating system.
| Comparison of NanoPi Neo2 and NanoPi Neo3 | ||
|---|---|---|
 |
 |
|
| Model | NanoPi Neo2 | NanoPi Neo3 |
| Processor | Allwinner H5 | RockChip RK3328 |
| Architecture | Cortex A53 | Cortex A53 |
| Clocking | 400 MHz to 1.2 GHz | 400 MHz to 1.296 GHz |
| Core voltage | 1,1 V / 1,3 V, two-step voltage adjustment | 0.96 V to 1.3 V, six-stage dynamic scaling and voltage adjustment |
| Number of cores | 4 | 4 |
| Memory bus | DDR3 16-bit | DDR4 32-bit |
| RAM Frequency | 504 MHz | 786 MHz to 1056 MHz, dynamic scaling |
| Ethernet | 10/100/1000 Mb/s, software generated MAC address | 10/100/1000 Mb/s, unique MAC address |
| USB | USB 2.0 | USB 3.0 |
| Fan connector | - | yes |
| Power connector | microUSB | USB type C |
| Key | - | User Key |
| Uboot | U-boot-2017.11 | U-boot-2014.10 |
| Kernel | 4.14 | 5.4 |
| OS | FriendlyWrt / Ubuntu core 16.4 | FriendlyWrt / Ubuntu core 18.04 |
| Dimensions | 40 x 40 mm | 48 x 48 mm |
NanoPi Neo3 Minicomputer.NanoPi Neo3 specification
- CPU: RockChip RK338 ARM Cortex A53 Quad-Core 1.3 GHz
- RAM: 2 GB DDR4
- MicroSD slot
- Ethernet: 10/100/1000 Mbps with unique MAC
- USB:
- 1x USB 3.0
- 2x USB Host on 2.54 mm pin
- USB Type C for power
- Pin Connector: 26-pin GPIO 2.54mm I2C, I2S, SPI, UART
- LED:
- PWR LED (red)
- STAT LED (green)
- Button: 1x general purpose button
- Operating temperature: from -20°C to 70°C
- Power supply: 5 V / 1 A USB C
- PCB: 6 layers
- Equipment: white casing with heatsink
- Dimensions: 48 x 48 mm
- Weight: 22 g
